Introduction:

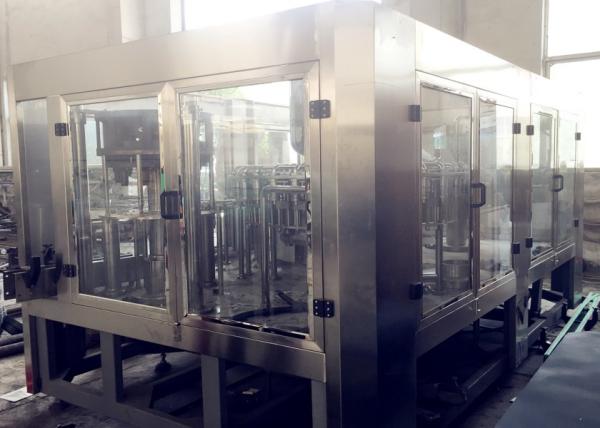

The mineral pure(purified water) 4-in-1 monobloc filling machine is mainly used for washing, fillling and sealing non-aerated carbon dioxide drink such as mineral water, pure water etc.

Bottle transportation adopts the neck-held technology ih the whole process with grippers instead of the traditional starwheel,it only needs to change or adjust a few spore parts without changing the equipment height while changing the bottle size,special designed stainless steel rinsing is solid and durable,and it won't touch the bottle screw part,which avoids second contamination.

Technical Parameter

Rinsing part

1) The rotary wheel is a fully AISI304 stainless steel welded structure.

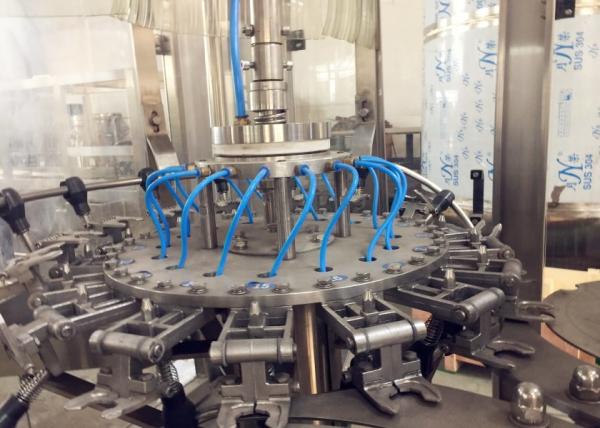

2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water. Covering of bottle clamps and elevator are product of IGUS

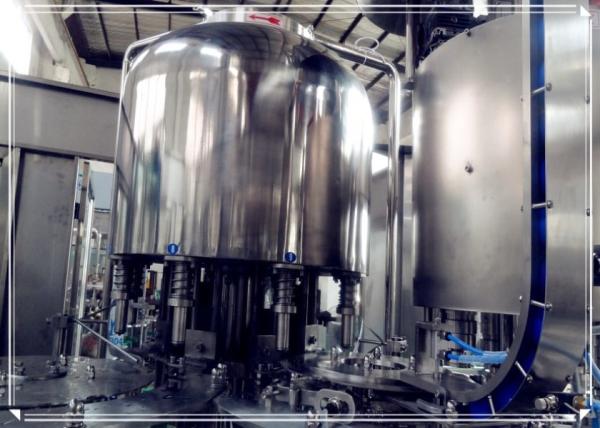

Filling part

1) The filler is designed and manufactured with application of Italy technology, providing

hardware guarantee for securing product quality and reducing loss.

2) Rotary wheel are fully made of stainless steel AISI304.

3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

Capping part

1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
