Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine
Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine
Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine
Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine
Specifications
Brand Name :
Jiayuan
Model Number :
CGF16-12-6
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $15,000 - 1,000,000 / Set
Supply Ability :
15 Set/Sets per Month
Delivery Time :
30 Working Days
Packaging Details :
Wooden Box
Machine Type :
Filling machine
Condition :
New condition
Packaging Type :
Barrel, Bottles,cans
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V/50HZ
Power :
4.23kw
Dimension(L*W*H) :
2100*1500*2200mm
Capacity :
2000-4000b/h
Description

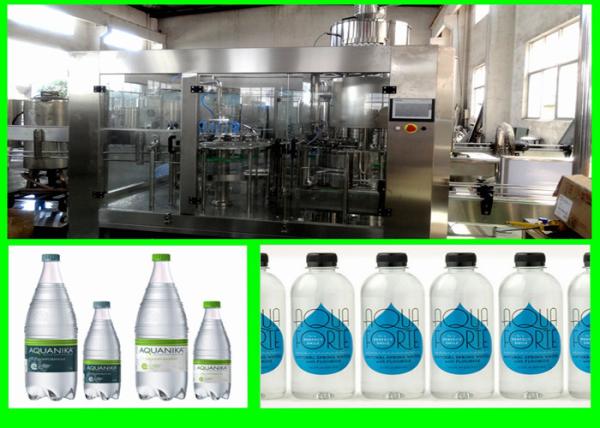

Rotary wheel 3-in-1 plastic bottle water making and packing machine

Introduction

Rotary wheel 3-in-1 plastic bottle water making and packing machine

1.High speed filling valves
2.No bottle no filling,no cap no capping
3.CE,ISO,SGS
4. Warranty:1 year

Features:

Rotary wheel 3-in-1 plastic bottle water making and packing machinet

This water filling machine is with bottle rinsing, filling and capping monobloc for drinking water (non-carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our Zhangjiagang Jiayuan machinery company .

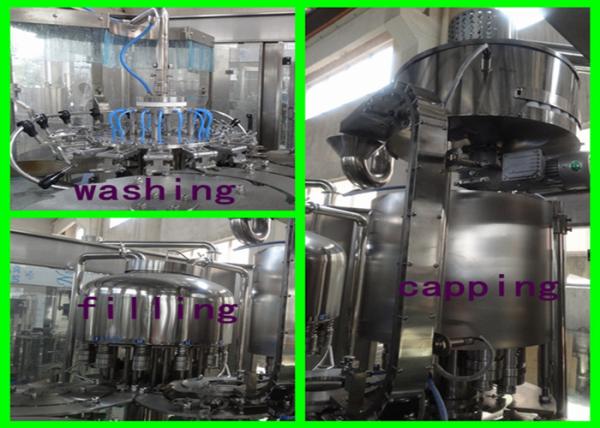

washing part

PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck postion, avoiding bottle mouth thread comtamination caused by rubber gripper block of a traditional bottle clamp. This part is made of SUS 304 stainless steel, the bottle clamp is hygienic and durable.

The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and aso saves rinsing water.

Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine

filling part

Rotary wheel fully made of stainless steel SUS 304

Gravity filling method

Filling valves aer reasonably structured with accurate filling.

Bottle go up and down in the function of cam through elevator to process filling with contact to bottle-mouth.

Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine

capping part

Capper should have highest precision, influence very much with stability and realiable of the filling monoboc. Our capper

features as follows:

Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspection system is applied to control on-off of elevator.

Rotary Wheel 3-In-1 Plastic Bottle Water Making / Packing Water Bottling Machine

Technical parameters

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MMLiquid Level ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80; ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MM(Liquid Level)
Height Height:130-280 (Height):150-320 (Height):150-320 (Height):150-320
Suitable cap shape Plastic Screw Cap (Plastic Screw Cap) Plastic Screw Cap) (Plastic Screw Cap)
Water pressure of Washing bottle(MPa) 0.18 0.18 0.18 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure normal pressure normal pressure normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250
