Specifications
Brand Name :
jiayuan
Model Number :
RCGF
Certification :
CE,SGS
Place of Origin :
CHINA,MAINLAND
MOQ :
1 set
Price :
USD 14500 -55000 set
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
15 work days
Packaging Details :
wooden case
certification :
CE,SGS
product capacity :
3000bph
dimesion :
2100*1500*2200
service :
oversea service
condition :
new
warranty :
1year
Description

2500kg PCL control Customized Juice Filling Machine 2100*1500*2200 SUS304 Material

Introduction:

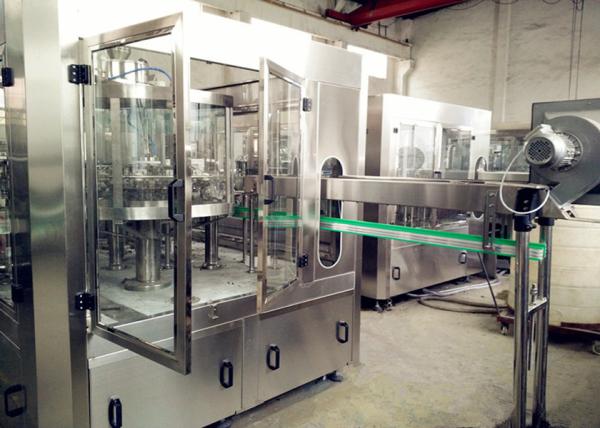

The equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.

It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.

Washing part

a) Rotary pan is made of stainless steel 304.

b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

PCL Control Bottle Filling Equipment For Fruit Juice / Orange Juice Packaging Customized

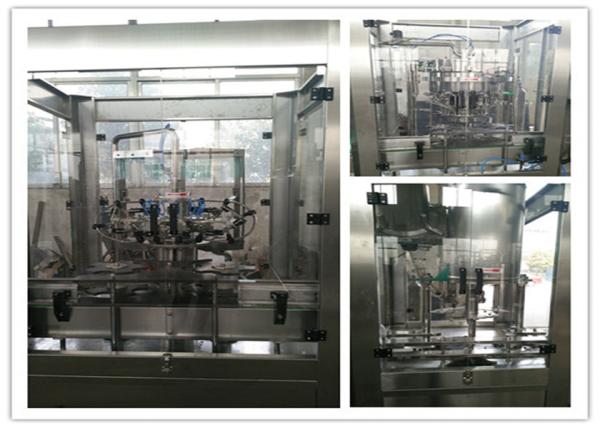

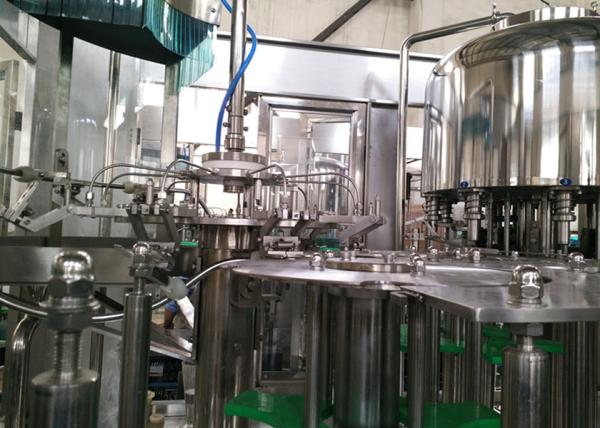

Filling part

a) Rotary pan is made of stainless steel 304

b) The way of filling is gravitation filling.

c) The filling valve is adopted best stainless steel 304

d) The structure of filling valve is reasonable, the amount is correct

e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

PCL Control Bottle Filling Equipment For Fruit Juice / Orange Juice Packaging Customized

Capping part

a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.

PCL Control Bottle Filling Equipment For Fruit Juice / Orange Juice Packaging Customized

Parameter

Model RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
Production capacity(500ml)(b/h) 6000 10000 14000
Filling precision ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MM(Liquid Level)
Feedback consumption ≤10% ≤10% ≤10%
Polyester bottle standard(mm) (BottleDiameter)50-92;(Height):150-310 (BottleDiameter)50-92;(Height):150-310 BottleDiameter)50-92;(Height):150-310
Suitable cap shape (Plastic Screw Cap) (Plastic Screw Cap) (Plastic Screw Cap)
Water pressure of washing bottle(Mpa) 0.18 0.18 0.18
Wash pressure of washing bottle(kg/h) 1600 2500 3500
Gas sourse pressure(Mpa) 0.6 0.6 0.6
Gas consumption(m3/min 0.3 0.4 0.5
Total power 6.68 7.68 9.18
Total weight 3000 4000 5000
Dimensions(L*W*H)(mm) 2450×1800×2200 2750×2180×2200 3600×2800×3150

PCL Control Bottle Filling Equipment For Fruit Juice / Orange Juice Packaging Customized

Our Service:

1) One year warranty for the whole system.

2) Free equipment installation and debugging.

3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4) We can provide internship service and help you train the operator and mechanic.

5) Free beverage production technology and process configuration.

6) We can help you to design the product line, workshop and provide turn-key project.
