Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Juice Making Machine / Orange Filling Machine SUS304 Silvery White
Specifications
Brand Name :
jiayuan
Model Number :
RCGF
Certification :
CE,SGS
Place of Origin :
CHINA,MAINLAND
MOQ :
1 set
Price :
USD 16000 -55000 set
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
15 work days
Packaging Details :
wooden case
color :
silvery white
certification :
CE,SGS
product capacity :
4000bph
water consumption :
2500kg/h
power :
7.68kw
weight :
4000kg
service :
oversea service
voltage :
customized
Description

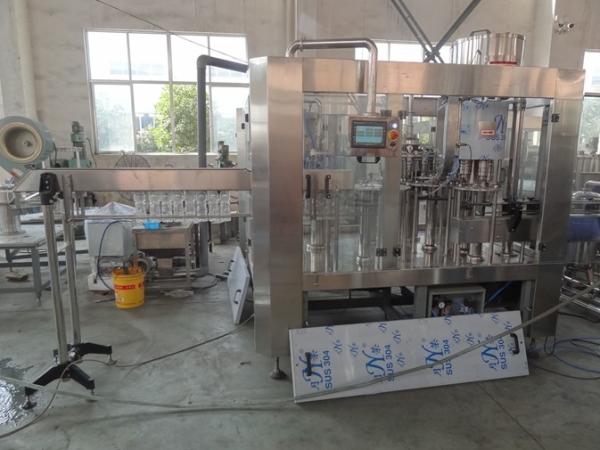

Juice Making Machine / Orange Filling Machine SUS304 Silvery White

Application:

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling, and capping, It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.

Parameter

Model RCGF16-12-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
Production capacity(500ml)(b/h) 3000 6000 10000 14000
Filling precision ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MM(Liquid Level)
Feedback consumption ≤10% ≤10% ≤10% ≤10%
Polyester bottle standard(mm) (BottleDiameter)50-92;(Height):150-310 (BottleDiameter)50-92;(Height):150-310 (BottleDiameter)50-92;(Height):150-310 BottleDiameter)50-92;(Height):150-310
Suitable cap shape (Plastic Screw Cap) (Plastic Screw Cap) (Plastic Screw Cap) (Plastic Screw Cap)
Water pressure of washing bottle(Mpa) 0.18 0.18 0.18 0.18
Wash pressure of washing bottle(kg/h) 800 1600 2500 3500
Gas sourse pressure(Mpa) 0.6 0.6 0.6 0.6
Gas consumption(m3/min / 0.3 0.4 0.5
Total power 5.88 6.68 7.68 9.18
Total weight 2500 3000 4000 5000
Dimensions(L*W*H)(mm) 2100×1500×2200 2450×1800×2200 2750×2180×2200 3600×2800×3150

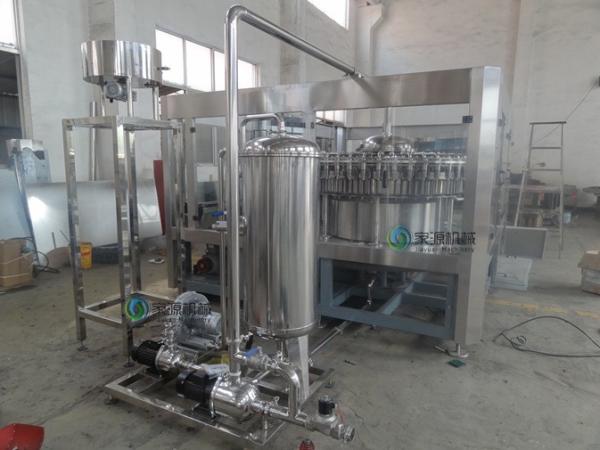

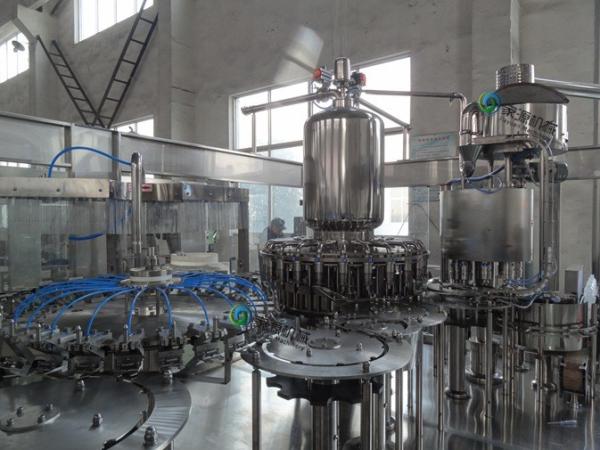

Juice Making Machine / Orange Filling Machine SUS304 Silvery WhiteJuice Making Machine / Orange Filling Machine SUS304 Silvery White

Description

The equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.

It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.

Washing part

a) Rotary pan is made of stainless steel 304.

b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

Filling part

a) Rotary pan is made of stainless steel 304

b) The way of filling is gravitation filling.

c) The filling valve is adopted best stainless steel 304

d) The structure of filling valve is reasonable, the amount is correct

e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

Capping part

Capping machine is one of the highest precision machines, which greatly affects the reliability of device and the defective rate of product. The characteristic is as follows:

a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.

Juice Making Machine / Orange Filling Machine SUS304 Silvery White
