Automatic Fresh Fruit Juice Filling Machine / Hot Filling Plant 350ml - 2000Ml±10ml
Automatic Fresh Fruit Juice Filling Machine / Hot Filling Plant 350ml - 2000Ml±10ml
Specifications
Brand Name :
jiayuan
Model Number :
RCGF18-18-6
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $15,000 - 800,000 / Set |
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 work days
Packaging Details :
wooden box
Application :
Beverage, Chemical
Dimension(L*W*H) :
2450*1800*2200mm
Weight :
3000kg
Power :
6.68kw
After-sales Service Provided :
Engineers available to service overseas
Material :
stainless steel 304
Warranty :
One Year
Filling type :
Normal pressure filling
Control system :
PLC control
Filling temperature :
Room temperature
Filling capacity :
6000BPH(500ml)
Description

Automatic Fresh Fruit juice making machine/hot filling plant RCGF18-18-6

Packaging & Delivery

Packaging Details: Wooden Box

Delivery Detail: 30 Working Days

Automatic Fresh Fruit juice making machine/hot filling plant RCGF18-18-6

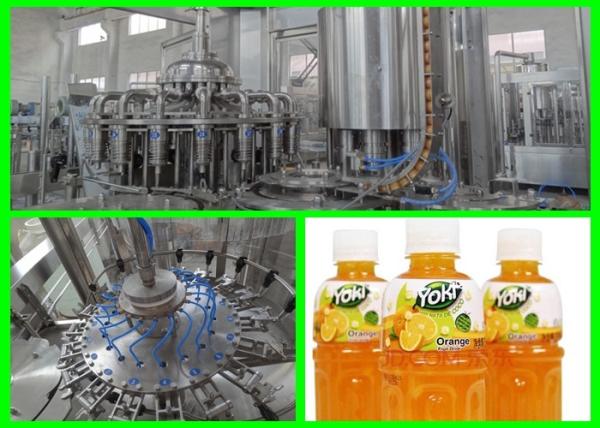

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automaic rinsing,filling and capping.It is equipped with perfect temperature control system,reverse-flow system,automatic cleaning system and control program.Each machine element that contacts with the liquid is made of high quality stainlesssteel and food-grade rubber.

1) Feature

Low cost orange juice bottle filling machine for hot filling production line

The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

The machine structure is reasonable and firm, the running state is stable

The suspension bottle neck catcher allows the machine change the bottle type easily

Safe protective devices ensure safety of operator and machine

Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

The module of screw capper ensures the tightness of the cap and avoids bottle damage

Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

Unique control mechanism keeps circumfluence volume below 5%

Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

High efficient clean air filter circulation system ensures high sanitary requirements

Low overall machines noise that is comparable to any internationally known equipments in its class

Self-lubricationg system imported from America provides continuous smooth operation

2)Technique parameter

RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12
Productivity 6000BPH 10000BPH 14000BPH 15000-20000BPH
Rinsing Head 18 24 32 40
Filling Head 18 24 32 40
Capping Head 6 8 10 12
Bottle Volume 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml
Bottle Diameter φ50-92mm φ50-92mm φ50-92mm φ50-92mm
Bottle Height 150-310 mm 150-310 mm 150-310 mm 150-310 mm
Filling Tolerance ±2% ±2% ±2% ±2%
Cap Size 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa 0.6MPa 0.6MPa 0.6 MPa
Air Consumption 500 L/min 500 L/min 500 L/min 500 L/min
Filling Water Consumption 3 m3/h 6 m3/h 7.5 m3/h 9 m3/h
Rinsing Water Consumption 1 m3/h 2 m3/h 2.5 m3/h 3 m3/h
Motor Power 6.68kW 7.68kW 9.18kW 9.18kW
Voltage 380V 380V 380V 380V
Dimension (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm (L×W×H) 3600*2800*3150mm (L×W×H) 3600*2800*3150mm
Weight 3000kg 5300kg 8000kg 12000kg
Filling Principle Gravity Filling Gravity Filling Gravity Filling Gravity Filling

Why

Choice

us?

We offer professional turnkey project from design till done of the whole project.

1.Project consultation

2.Design

3.Factory building

4.Installation

5.Commissioning

6.Training

We can provide beverage filling line as below:

1. Complete pure/mineral water production line

2. Complete pure/mineral water treatment machine

3. Complete juice production line

4. Complete carbonated beverage production line

5. 5 Gallons drinking water production line.

6.End-of-line packaging system

Company Information

Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.
