Specifications
Brand Name :
jiayuan
Model Number :
DGCF
Certification :
CE,SGS
Place of Origin :
CHINA,MAINLAND
MOQ :
1set
Price :
USD 4200-8500 / set
Payment Terms :
T/T
Supply Ability :
15 sets per month
Delivery Time :
30work days
Packaging Details :
wooden case
material :
stainless steel 304
filling precision :
≤±5mm
weight :
3000kg
capacity :
4000p/H - 6000p/H
driven type :
electric
voltage :
custom
Description

Cuatomized CE Certificated Carbonated Drink Filling Machine with PCL Control/Carbonated Filling lIne

Features

1Adopts the negative pressure filling which we specifically design for CSD filling, it ensures

minimal loss of CO2 from the product
2The configuration of filler is advanced, pithy and rational and the driving and up-down transmission

is located between the stainless steel working plat and the bracket and their waterproof is good,

sanitary and credible and adjusting and maintaining are very easy.
3 We design the filling valves on basis of foreign advanced technique for adapting high-speed hot

filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting

easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.
4The filling operation is faster and more stable because the new type micro pressure filling system

is adopted. The electropneumatic filling valves are equipped with interchangeable level tubes to make the

best precision filling, and the filling level for the bottle is adjust.

CO2 Carbonated Beverage Filling Machine , Electric Carbonated Drink Canning Machine

Technical Parameter

Model
DCGF40-40-40
Heads of washing, filling, sealing
40-40-10
Production capacity(bottle/hour)
16000-18000
Suitable bottle height(mm)
H=170-320,D=50-100(330-1500ml)
Spraying pressure
0.25-0.3MPa
Total Power(kw)
7.5
Overall dimension(L×W×H)(mm)
4000×3300*3400
Weight(kg)
8500

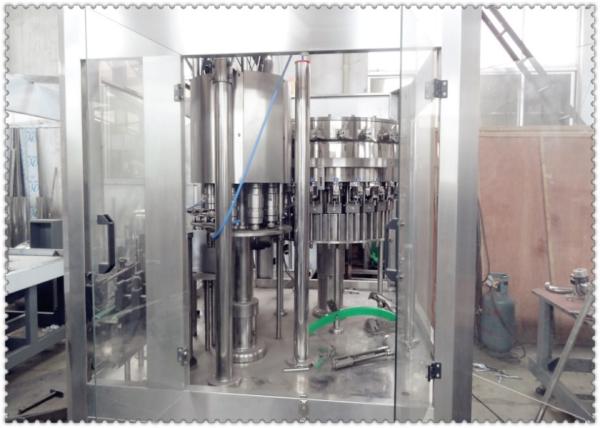

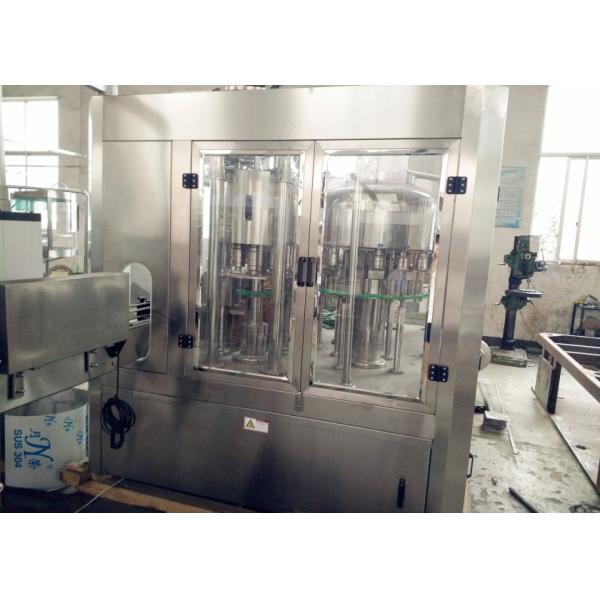

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
CO2 Carbonated Beverage Filling Machine , Electric Carbonated Drink Canning Machine

Company Information

Professional filling machine manufacturer---Zhangjiagang Jiayuan Machinery Co.,Ltd. is a professional beverage machinery manufacturer to produce beverage machine and water treatment equipment. The main products of our company contain: carbonated and non-carbonated beverage production line, pure water production line, juice, tea and alcohol and other liquids packed in bottle, barrel, can, glass, and others production lines.

Our Service

1) One year warranty for the whole system.

2) Free equipment installation and debugging.

3) After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4) We can provide internship service and help you train the operator and mechanic.

5) Free beverage production technology and process configuration.

6) We can help you to design the product line, workshop and provide turn-key project.
