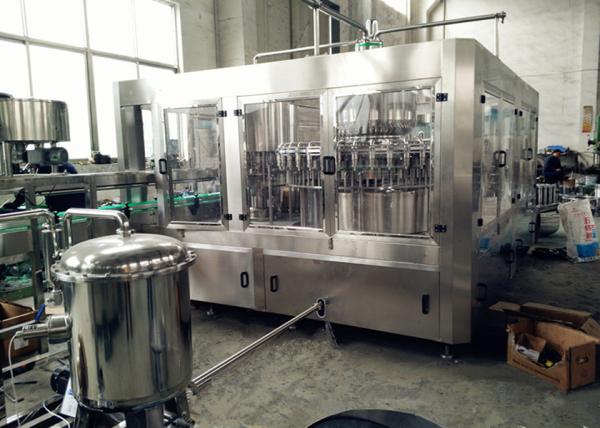

Introduction:

The machine adopts suspended bottle catcher technology which allows it to fill with different type of bottles by simply and easily change the bottle catcher. It can be either used to fill the purified and mineral water under ambient temperature, or used to fill the hot liquid (juice or tea) by change of a few accessories.

Washing part

Rotary pan is made of stainless steel 304. The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

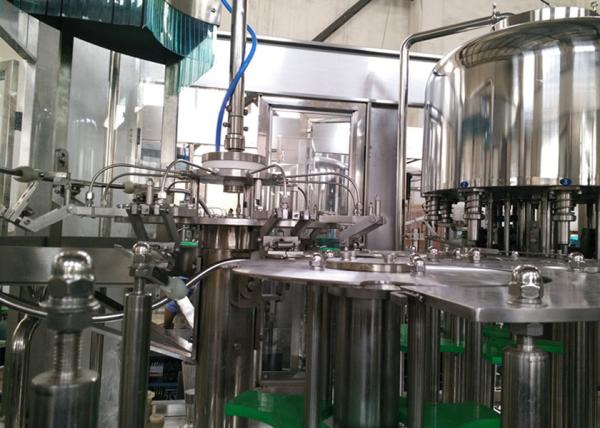

Filling part

Rotary pan is made of stainless steel 304. The way of filling is gravitation filling. The filling valve is adopted best stainless steel 304. The structure of filling valve is reasonable, the amount is correctWhen filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

Capping part

The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

stop the machine when lacking the cap and also avoid the situation that there is bottle without cap. The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.

Feature:

1.The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.

2.The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

3.The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

4.Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

5.The module of screw capper ensures the tightness of the cap and avoids bottle damage

6.Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

7.Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

8.High efficient clean air filter circulation system ensures high sanitary requirements

Main technical parameters:
