Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
Specifications
Brand Name :
Jiayuan
Model Number :
CGF16-12-6
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
$6,000-20,000 / Set
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Plastic film wrapping,wooden boxes packaging
Capacity :
4000BPH
Control system :
PLC control+Touch screen
Warranty :
One Year for free
Power :
4.23kw
Driven Type :
Electric
Filling temperature :
Room temperature
Weight :
2500kg
Color :
Silver Gray
Description

Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line

Product description

1. Normal pressure filling

2. Production capacity:4000Bottles per hour

3. Suitable for Glass bottle with different shape and 200-2000ml volume

Technique parameter

Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 3000BPH 6000BPH 10000BPH
Rinsing Head 16 18 24
Filling Head 12 18 24
Capping Head 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

 (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2500kg 3000kg 5300kg
Filling Principle Gravity Filling

Detailed description

The mono-bloc machine is integrated with rinsing, filling and capping together;

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle in wall.

After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

The full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottle neck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet

Pictures show

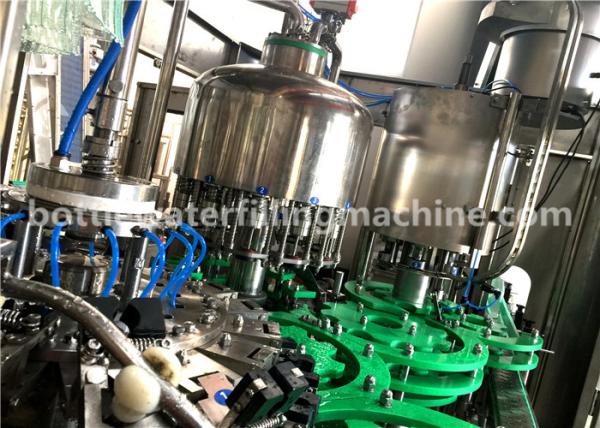

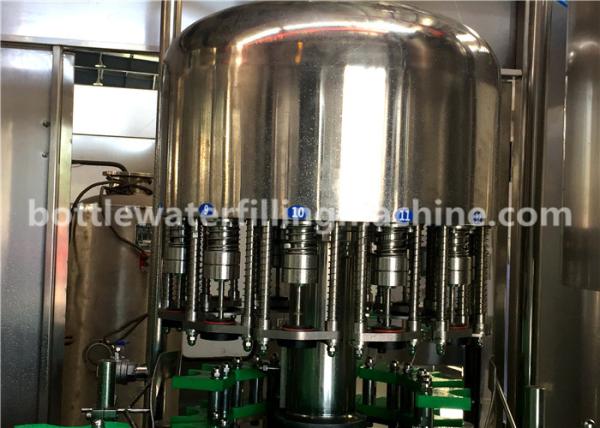

Filling and capping part

Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line

Cap elevator

Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line

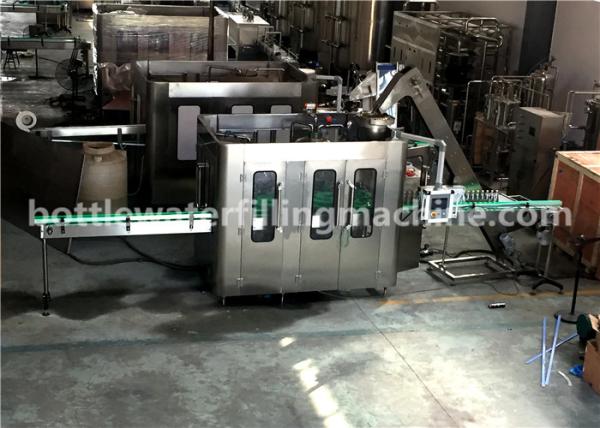

Overall appearance

Glass Bottle Flavor Water Filling Machine , 3 In 1 Juice Production Line
