Specifications
Brand Name :
Jiayuan
Model Number :
CGF16-12-6
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
$6,000-20,000 / Set
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Plastic film wrapping,wooden boxes packaging
Capacity :
4000BPH
Control system :
PLC control+Touch screen
Warranty :
One Year for free
Power :
4.23kw
Driven Type :
Electric
Filling temperature :
Room temperature
Material :
Food grade stainless steel 304
Weight :
2000kg
Description

4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant

Technique parameter

Model CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 3000BPH 6000BPH 10000BPH
Rinsing Head 16 18 24
Filling Head 12 18 24
Capping Head 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

 (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2500kg 3000kg 5300kg
Filling Principle Gravity Filling

Product description

1. Normal pressure filling

2. Production capacity:4000Bottles per hour

3. Suitable for PET or Glass bottle with different shape and 200-2000ml volume

Features:

1. The whole process is automatic ,suitable for glass bottle filling mineral water and pure water,juice,milk.
2. Filling way using the gravity or micro pressure filling ,make the speed faster and more stable,so compared with the same model our machine output is higher and more efficient.
3. The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine adopts advanced automatically, interworking with inverter with inverter running more stable and reliable the photoelectric sensor detect all part running state with high degree of automation, easoperation.

4. all parts of the filling machine touch with the material adopt high quality stainless still. Through the polishing treatment the surface become easy to clean. Sealed material is rubber or EPDM material.

5. Using programmle controller as the central control,using pressure transmitter, electromagnetic chaos pneumatic servo measurement level to maintian the balance of filling pressure in order to ensure the stability of the liquid surface.

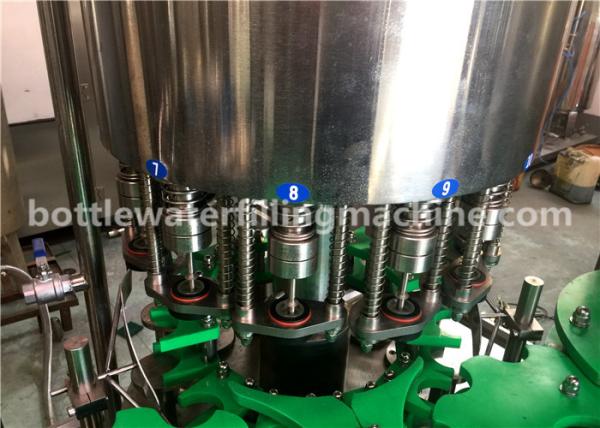

6. Designed new filling valve for plastic bottle, return-air and filling tank liquid are separation to ensure the cleaning of filling materials.

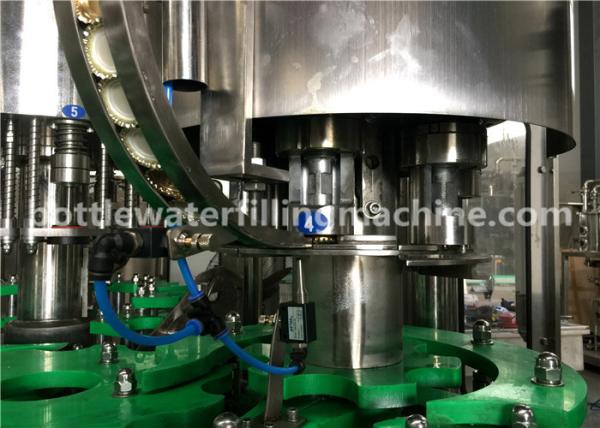

7. The filling machine adopts advanced magnetic clutch-type screw cover head, torque is adjustable. Screwing cap is safe and reliable.

4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant

4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant

4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant
