Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine
Specifications
Brand Name :
JINYATE
Model Number :
DCGF18-6
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
pls inquire
Payment Terms :
L/C, T/T
Supply Ability :
99 sets per year
Delivery Time :
50 days
Packaging Details :
standard wooden case
product name :
carbonated drink filling machine
function :
fill, cap
suitable bottle :
plastic bottle
suitable cap :
screw cap, sports cap
Control :
PLC&HMI
Material :
SUS304
Description

Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

This Carbonated Beverage Machine is our company's introduction of German technology, combined with the characteristics of carbonated soft drink production industry, designed to develop carbonated drink filling equipment. The carbonated beverage machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.
We are the professional automatic 2 in 1 carbonated soft drink filling machine manufacturer in China.

General Information
1. This Carbonated Beverage Machine is for PET bottle. (PET Bottle)
2. Its Capacity is 4,000BPH for 500ML Bottle. (BPH - Bottles Per Hour)
3. This Carbonated Beverage Machine is used for gas beverage filling, Carbonated Water Filling, Carbonated Drinks Filling,Soft Drinks Filling.

Machine detailes

Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

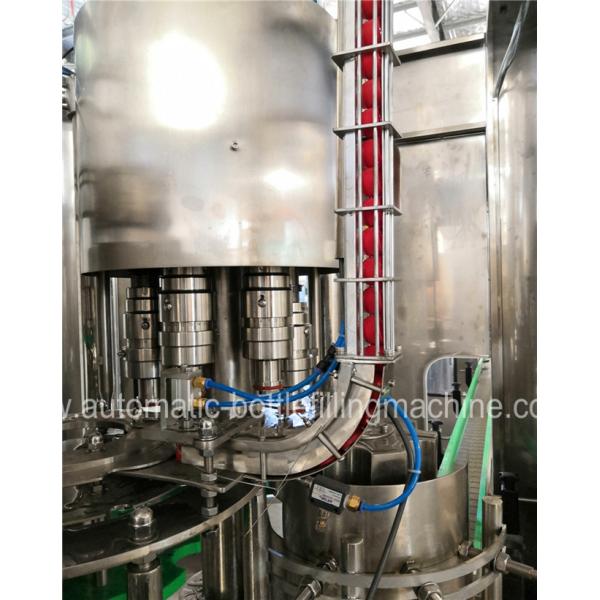

High Speed Filling Valve

High Speed Filling Valve can reach 200ml/s,made of SUS 304(for water filling) & excellent SUS316L(for hot filling and soft drinks filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.

Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

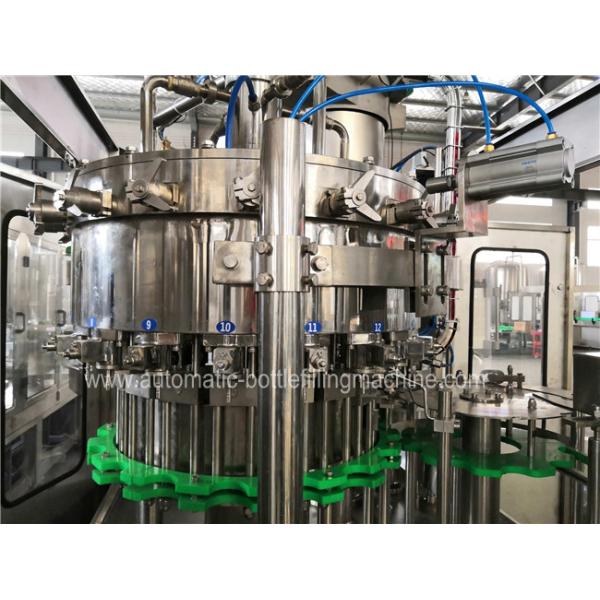

Bottle Neck Clamping Technical

Adopt bottle neck clamp,only these green parts in red circle need to be changed when bottle size change,but bottle neck should be the same.

Commercial Soda Water Bottle Filling Machine , Industrial Carbonated Water Making Machine

Technical Parameters of Carbonated Beverage Machine
Model
DCGF16-12-6
DCGF18-18-6
DCGF24-24-8
DCGF32-32-10
DCGF40-40-12
Rinsing Heads
14
18
24
32
40
Filling Heads
12
18
24
32
40
Capping Heads
4
6
8
10
12
Capacity(BPH)
3000
5000
7000
10000
15000
Motor Power(KW)
2.2
3.5
4.5
6.0
7.5
Dimension(mm)
2100*1500*2200
2300*1700*2400
2800*2200*2400
2900*2200*2500
3600*2700*2850
Weight(KG)
2000
2500
3500
5500
7500

After-sale Service

In order to ensure our customers can operate our machines well, after-sale oversea services are provided by our senior engineers. The after-sales services include products implementation, standard operation training, and products maintenance.
