Easy Cleaning PET Bottle Filling Machine For Fresh Fruit Juice RCGF 18-18-6
Easy Cleaning PET Bottle Filling Machine For Fresh Fruit Juice RCGF 18-18-6
Easy Cleaning PET Bottle Filling Machine For Fresh Fruit Juice RCGF 18-18-6
Easy Cleaning PET Bottle Filling Machine For Fresh Fruit Juice RCGF 18-18-6
Specifications
Brand Name :
jiayuan
Model Number :
RCGF18-18-6
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $15,000 - 800,000 / Set
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 work days
Packaging Details :
wooden box
Type :
Filling Machine
Driven Type :
Electric
Voltage :
380V 50Hz
Dimension(L*W*H) :
2450*1800*2200mm
Weight :
3000KG
After-sales Service Provided :
Engineers available to service overseas
Control system :
PLC control
Warranty :
One Year for free
Material :
Food grade stainless steel 304
Filling capacity :
6000BPH(500ml)
Condition :
New
Description

Full line with pet bottle filling machine for fresh fruit juice RCGF18-18-6

Packaging & Delivery

Packaging Details: Wooden Box

Delivery Detail: 30 Working Days

Specifications

Full line with pet bottle filling machine for fresh fruit juice RCGF18-18-6
1. juice filling machine,pet bottle filling machine
2. 6000bph
3. PLC control

4. Component contact with liquid adopt SUS304

Features
Full line with pet bottle filling machine for fresh fruit juice RCGF18-18-6
Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
1.Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2.Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3.The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize
the complete CIP.
4.Sanitary filling head system is of umbrella structure, high filling speed.
5.Per fect filling temperature control system.
6.Reflux tank system has the function of supplying the material automatically.
7.Perfect CIP system.

Technique parameter

Model RCGF18-18-6
Productivity 6000BPH
Rinsing Head 18
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling

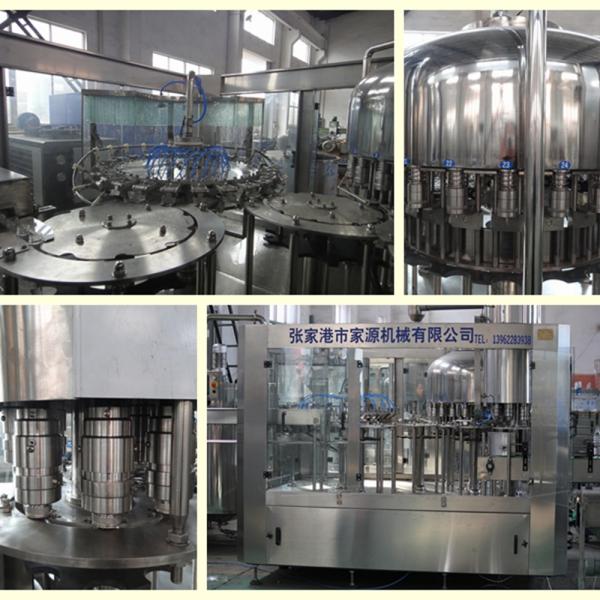

Easy Cleaning PET Bottle Filling Machine For Fresh Fruit Juice RCGF 18-18-6

Easy Cleaning PET Bottle Filling Machine For Fresh Fruit Juice RCGF 18-18-6

Our Services

1.One year warranty for the whole system.

2.Free equipment installation and debugging.

3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4.We can provide internship service and help you train the operator and mechanic.

5.We can help you to design the product line, workshop and provide turn-key project.
