Introduction:

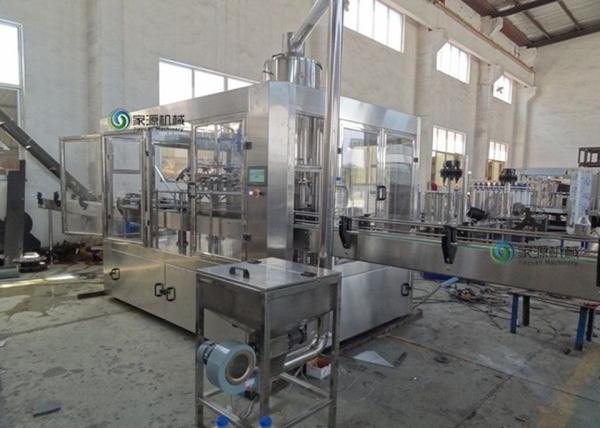

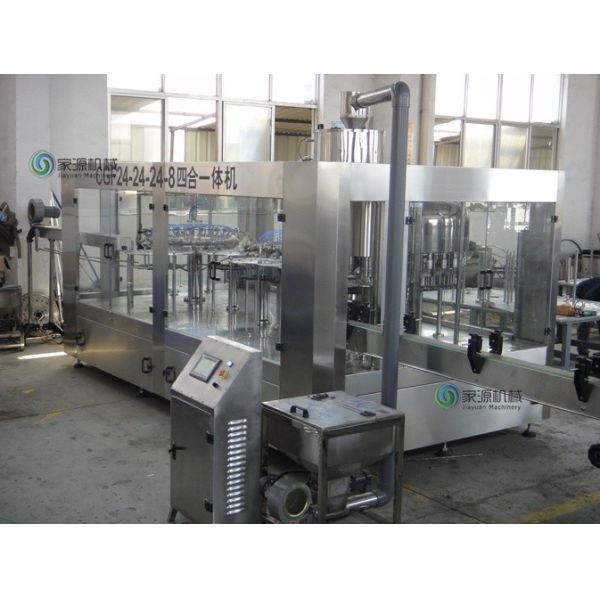

Introduction of Water Filling Machine

The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated, the machine frame is wrapped with stainless stell SUS304.
Driving system of the 3-in-1 unit is positioned under the machine talbe. One main motor provides driving porwer via gear transmission.
The gear transmission system is an interleaved arrangement of stell gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
PLC electrical control system controls the fully automatic operation of the monobloc.

Mineral water plant Features

1.Integrate Bottling Rinsing, Filling and Capping into one.

2.Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.

3.Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.

4.PLC control and friendly touch screen HMI interface.

5.Adjustable speed by inverter.

6.Fast and easy changeover to various bottle sizes.

7.Unique design bottle neck suspend system makes bottle move smoothly.

8.Easy to operate,clean and maintain.

Technical Parameter

Washing part of bottle washing filling capping machine

a) Rotary pan is made of stainless steel 304.

b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

Filling part of bottle washing filling capping machine

a) Rotary pan is made of stainless steel 304

b) The way of filling is gravitation filling.

c) The filling valve is adopted best stainless steel 304

d) The structure of filling valve is reasonable, the amount is correct

e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

Capping part of bottle washing filling capping machine

Capping machine is one of the highest precision machines, which greatly affects the reliability of device and the defective rate of product. The characteristic is as follows:

a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.
