Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line
Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line
Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line
Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line
Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line
Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line
Specifications
Brand Name :
JIAYUAN
Model Number :
BCGF8-8-3
Certification :
CE SGS
Place of Origin :
China（mainland）
MOQ :
1 set
Price :
pls inquiry
Supply Ability :
99 sets per year
Delivery Time :
35 working days
Packaging Details :
standard wooden cases
Product name :
glass bottle beverage filling machine
function :
rising filling capping
capacity :
3000B/H
suitable bottle :
glass bottle
suitable cap :
crown cap, aluminum screw cap, ring-pull cap
filling material :
juice, water, tea, non-carbonated drink
Transducer :
Mitsubishi
Touch screen :
Weinview
Description

Combined Water Juice And Milk Filling Line, Fruit Juice Production Machine

Description

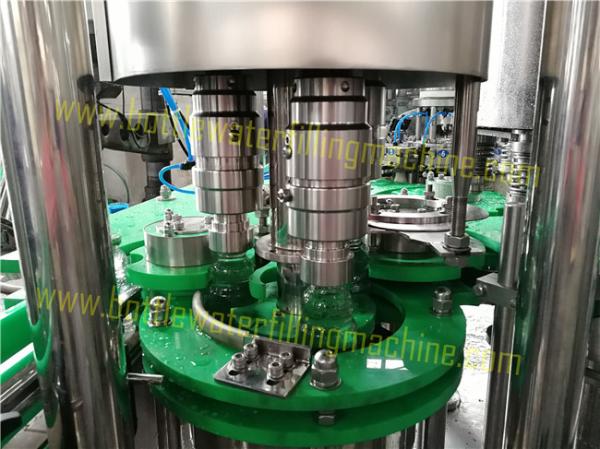

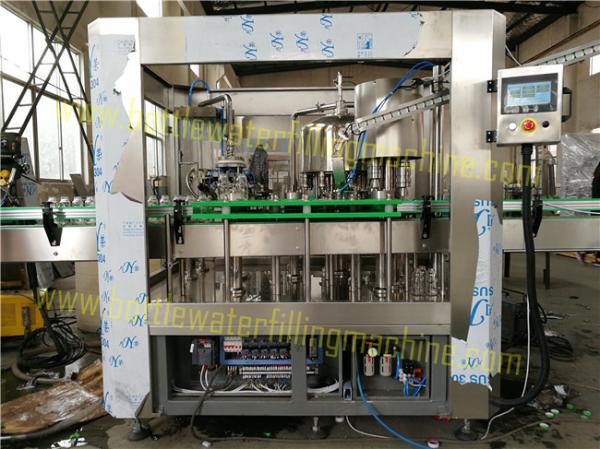

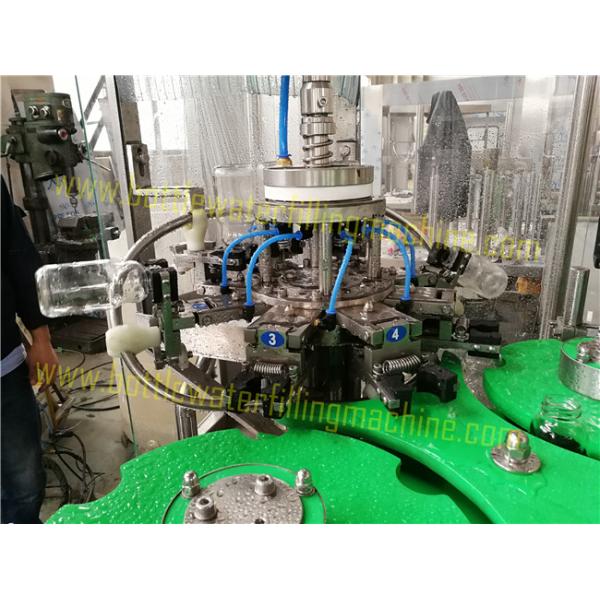

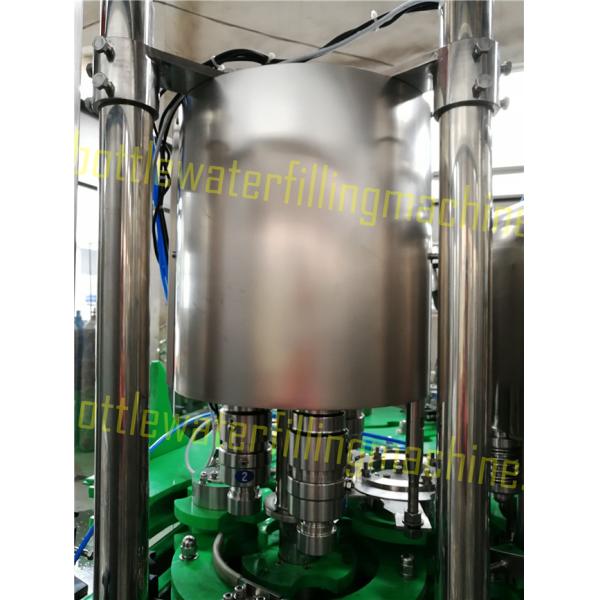

This machine is for glass bottle beverage production, it is a monoblock one, integrates rising filling and capping 3 function in one unit. it's rough capacity is about 3000B/H (for 500ml glass bottle). It adopt normal pressure filling, suitable for non-carbonated beverage, like water, juice, tea, milk and so on.

If the bottle neck diameter is same, it can be used to fill different size bottle, only by changing the guiding board.

Parameter

model BCGF8-8-3
Suitble bottle Glass bottle
Suitable cap Crown cap, aluminum screw cap
Filling material Water, juice, tea, milk
Fillingi type Normal pressure filling
Rising/filling/capping heads number 8/8/3
capacity 3000B/H(for 500ml)
voltage 380V 50Hz or customized
Material SUS304
Dimension 1900*1500*2200mm
weight 2000kg

Character

1) It adopts human-machine touch screen control and PLC computerized control.
2) All the parts contacting with material are made from Food Stage SUS304 stainless steel.3) The primary electric components and pneumatic components introduce international famous products, such as Mitsubishi,Omron and so on.
4) It has a function of high filling precision, reliable capping and low material loss.
5) It can achieve the replacement of different bottles only by exchanging equivalent parts.


Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line

Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line

Combined Water Juice And Milk Filling Line , Fruit Juice Glass Bottle Production Line

beverage production complete line:

1. water treatment system;

2. beverage mixing system;

3. filling system;

4. End-line package sysem

We can supply all these plants at competitive price, just for a furthur learn... ...
