Specifications
Brand Name :
Jiayuan
Model Number :
CYG-12 FXZ-1
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $8,700-500,000 / Set
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Plastic film wrapping,wooden boxes packaging
Capacity :
2000 cans per hour
Can type :
Tin / aluminum can
Filling material :
Pure water,mineral water,Juice,liquor,etc
Function :
Can Filling Sealing
Filling pressure :
Normal pressure
After-sale service :
Engineers available to service overseas
Automatic grade :
Fully-automatic
Warranty :
One year for free
Description

Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine

Description

The production line inculds QSG16 can rinsing,CYG often pressure filter,FXZ cap turining machine,SSJ carrying machine etc.The key parts for washing,filling and sealing are made of high quality stainless material,with the features of advanced technology,completed system,reliable performance,easy in operation,etc.

Features

1, Construction of the machine body: Whole filling machine produced by SUS304, materials touched parts are SS 316L, Measure up to GMP standards;

2, Select PLC control system, touch screen operation panel can save multi-groups of datas;

3, Adopt lifting filling, ensure no bubble; With bottle mouth localizer;

4, PLC controlled by: SIMENS (from Germany) or MITSUBISHI (from Japan);

5, Pneumatic parts adopt: FESTO (from Germany) or AIRTAC (from Taiwan);

6, Filling nozzles with anti-leaking function, blocked nozzles for products that tend to string and drip;

7, Easy to operate, no bottle no filling, auto orientation detection;

8, Can equip with auto production line: bottle sorting, filling, cap feeding, capping, sealing, labeling, printing, packing and etc.

9, Other special functions, such as "autocheck and display of malfunction", "liquid level alarm", " Diving nozzles for bottom up filling of foraming products",etc.

Technical parameter

Model QSG16 can rinsing machine CYG-12 FXZ-1
Production capacity 2000 2000 2000
Bottle/can type ∅40-80 ∅40-90 H50-340 ∅50-67 H90-200
Power(kw) 0.55 1.1 0.75
Overall dimensions(mm) 1900*530*1100 810*1050*2050 930*700*1850
Weight(kg) 480 500 500

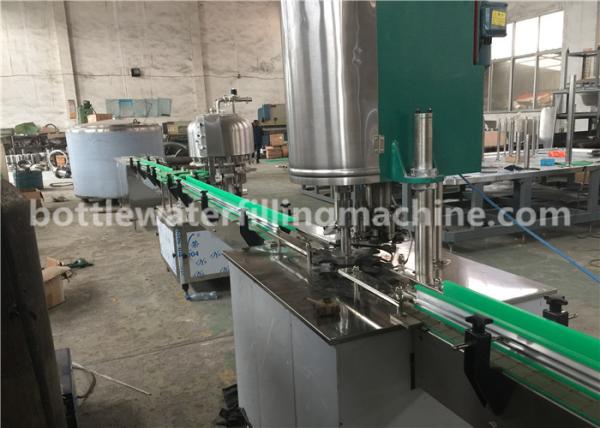

Some picture show

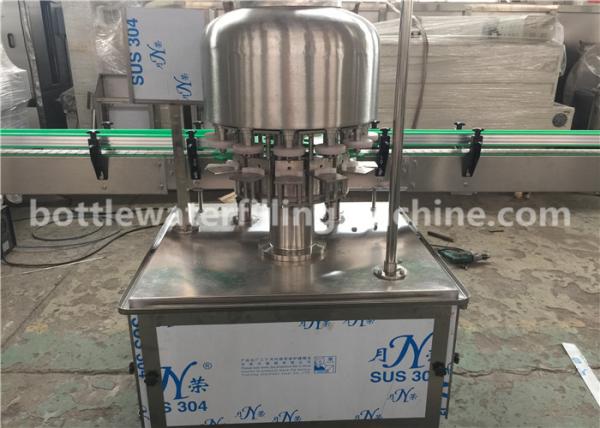

Rinsing part

Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine

Filling part

Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine

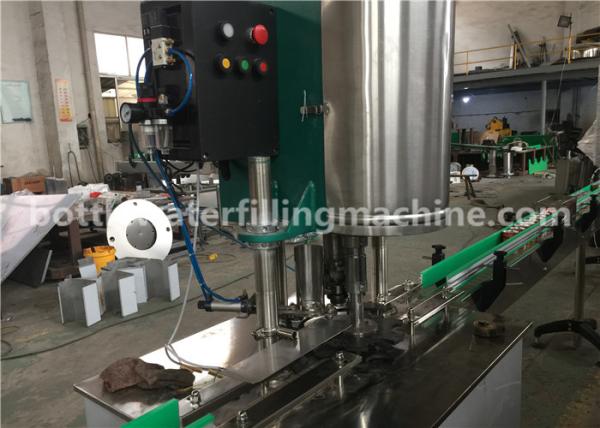

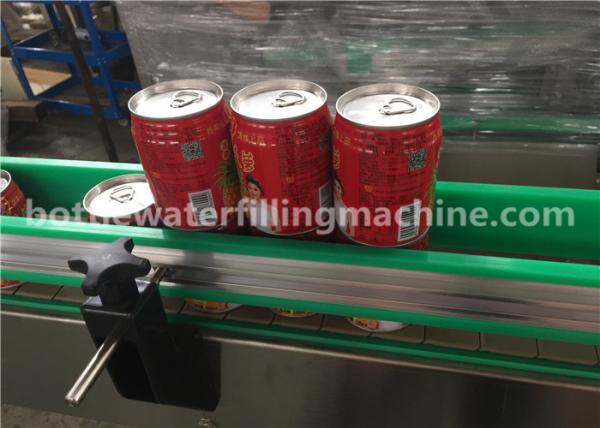

Sealing part

Canned Juice Normal Pressure Filling Machine / Drinking Water Canning Machine
