Carbonated beverage rising filling capping 3 in 1 machine

This production line is used for the production of fruit juice, vegetable protein drinks, function beverages, tea drinks and carbonated drinks. According to customers' requirements, we can design the

capacity of the line from 2000bph to 36000bph. The complete production line including fruit processing system/extraction treatment system, water treatment system, sugar melting system/soda mixing

system, homogenization &sterilization system, CIP system, bottle blowing system, bottle unscramble system, air deliver system, filling system, lamp check system, second sterilization system, labeling

machine, drying machine, coding machine, wrap shrinking machine, conveyor, boiler etc. Degree of automation can be configured according to customer requirements, provide process flow and

workshop layout design, full technical guidance.

Technical parameter

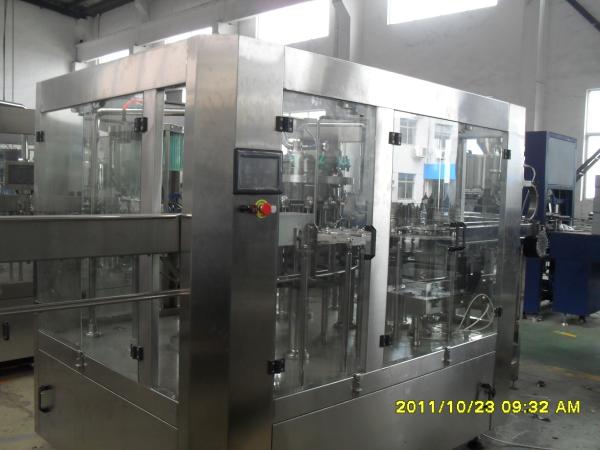

Machine pictures

inner look

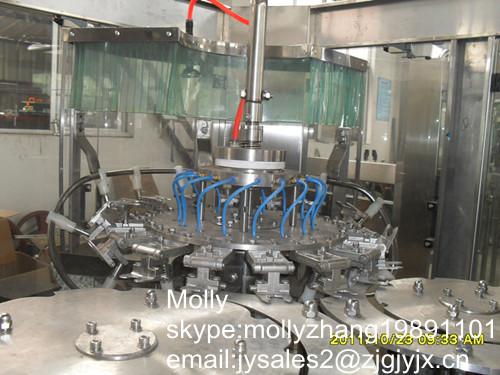

washing

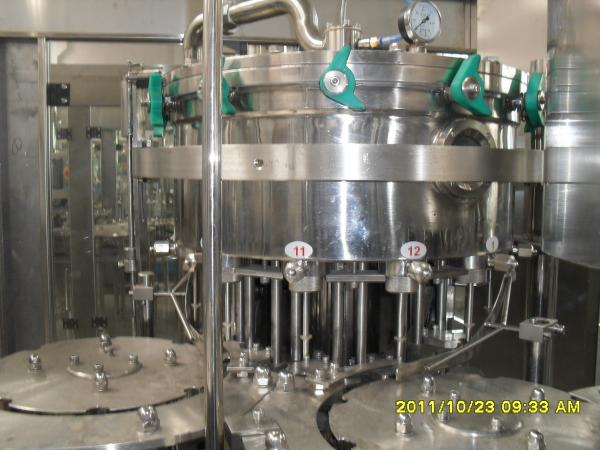

filling

capping

details

3. The working process

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts equal pressure filling way. The filling valve opens and begins filling when it moves down and touches thebottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.
