zero calorie beverage Full Automatic small carbonated drink filling machine/Plant

Machine introduction:

DCGF type carbonate drink filling machine, integrating with washing, filling and capping part, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of carbonate beverage, like: soda, cola and so on.

The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new isobaricpressure filling. Compared with the machines of the same specification, the capacity of this machine is larger.

Machine adopts advanced Mitsubishi programmable logic controller (PLC) to control. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.

Technical parameter

Machine pictures

inner look

washing

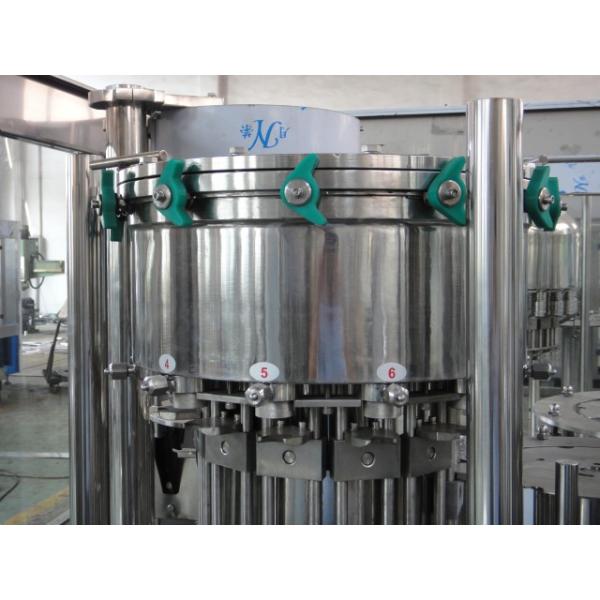

filling

capping

electrical system

3. The working process

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts equal pressure filling way. The filling valve opens and begins filling when it moves down and touches thebottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.
