Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping
Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping
Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping
Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping
Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping
Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping
Specifications
Brand Name :
Jiayuan
Model Number :
QGF
Certification :
CE SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets (Min. Order)
Price :
US $15,000 - 17,000 / Set
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Standard Wooden Package
Driven Type :
Electric
Voltage :
220V/380V
Automatic Grade :
Automatic
Bottle type :
PET Plastic Bottle
Processing :
Filling+stoppering+capping
Dimension(L*W*H) :
2400*1500*2300
Description

Mineral water machine 5 gallon filling small products manufacturing machine

Product Description

This QGF-450 Model Washing, Filling, Capping Monoblock mainly use for 3-5 gallon barrels plant, with high technic from Italy and Germany, can keep the machine running stable and fast.


Main features
1/ Made of high quality stainless steel, corrosion proof and easy to be cleaned or washed.

2/ Imported famous brands are adopted in respect of key electrical and pneumatic components

3/ Pump provided by Hangzhou Nanfang pump, the bse one in China.

4/ Spray nozzle is manufactured in accordance with technology or spraying system co.in USA.

Model QGF-450
Amount of working position 3 Filling Heads
Production capacity 450BPH(5Gallon)
Pressure of air source 0.7Mpa
Air consumption 1.0m3/min
Rinsing water pressure 0.2-0.25Mpa
Rinsing water capacity 2T/H
Main motor power 3.5kW
Total power 4.8kw
Dimension 3550X1550X1800mm (L×W×H)
weight

1500kg

Parameter

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900
Washing hands 1 Row 2 Row 3 Row 4 Row 6 Row
Filling valves 1 2 3 4 6
Capping hands 1 2 3 4 6
Suitable PET/Glass Bottles(3-5 Gallon)

Capacity(Speed)

Base on 5Gallon

 100BPH 300BPH 450BPH 600BPH

900BPH

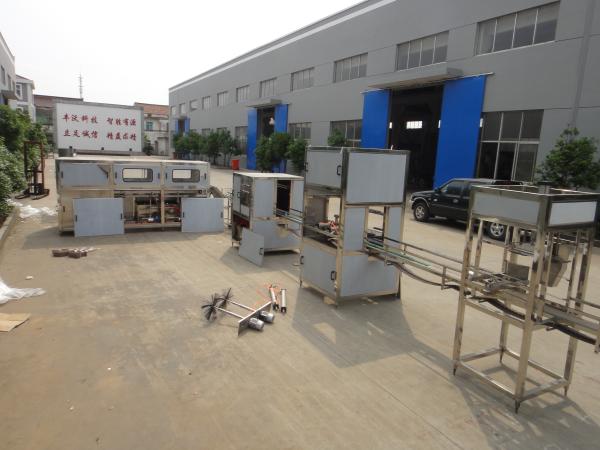

Our Machine Picture

Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping

Automatic 5 Gallon Water Filling Machine Mineral Water Filling / Stoppering / Capping

make the machine has a long life,and Reduce the maintenance,we buy the materials from famouse company,who has branch all over the world,and can quikly help you with some problems.

Company Management

Our company has different departments to finish different things,the sales in our company has been trained about the machines ,they are professional to help you.

Production Capacity

We can produce 10 complete lines ,30 machines per month!

Our Advantage
Design Ability All the machines designed by CAD
Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
Reliability Electrical parts from world famous suppliers
Professional

Focus on beverage and cosmetics packing machines

Exported to over 20 countries with good reputation

6 years Alibaba Golden supplier without complaint
Good Service: Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
Profession on Export: Authorized export licence.

Contact me

Pls contact me and let's talk more details, thanks in advance!

Zhangjiagang Jiayuan Machinery Co., Ltd

Tel:+86-15962351473

wechat:15962351473

skype:Joyce1989280

whatsAPP:+8615962351473

Factory Add:

No.198,Zhenbei Road,Leyu Town, Zhangjiagnag City , JiangSu Province .PRC

POST CODE :215625
