Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line
Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line
Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line
Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line
Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line
Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line
Specifications
Brand Name :
JIAYUAN
Model Number :
BDCGF16-16-12-6
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
please enquire
Supply Ability :
50 sets a year
Delivery Time :
45 working days
Packaging Details :
standard wooden case
Product name :
glass bottle filling machine
filling material :
carbonated soft drink, cola, soda
capacity :
2000BPH
Bottle size :
200-2000ml
guarantee :
one year
testing video :
provided
Description

Glass Bottle Beer, Soda, Cola, Sparkling Water Filling Machines, Bottling Line

Automatic filling machine

Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line

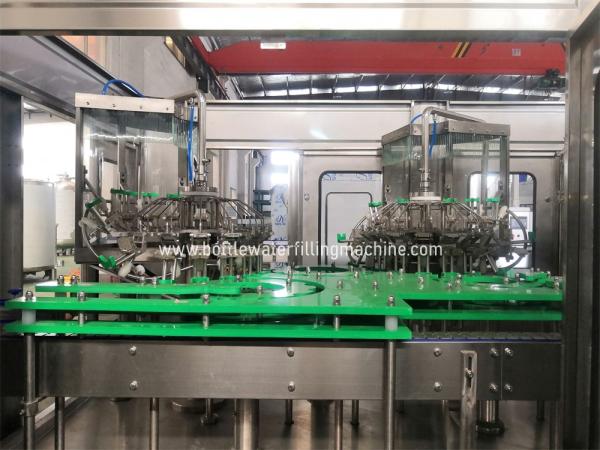

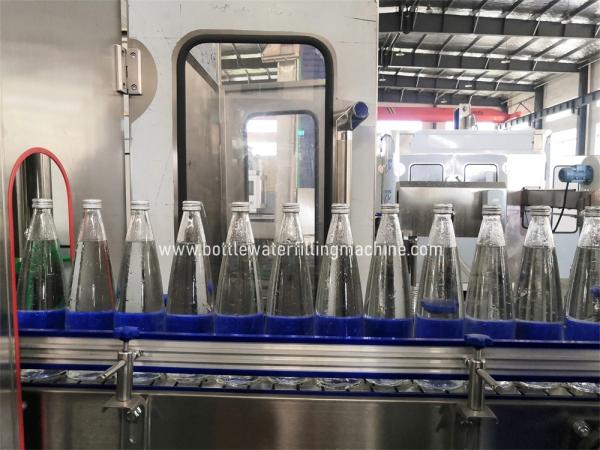

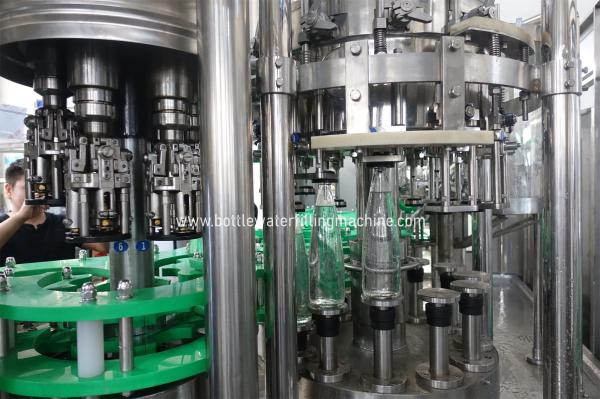

This is glass bottle carbonated soft drink filling machine, adopts isobaric filling, can fill all carbonated soft drink,

like cola, soda, sparkling water, lemonade, fizzy drink and so on, also can fill beer and water.

The machine combines four parts together, disinfection water rinsing, pure water rinsing, filling and capping.

It can fill different size of bottle from 20cl to 200cl, like 33cl, 50cl, 75cl, 100cl, 150cl;

It's controlled by frequency converter, PLC and HMI, easy to operate.

Glass Bottle Cola Drink Filling Machines 2000BPH Beer Soda Bottling Line

There are different capacity

Model
Washing
Filling
Capping
Capacity(b/h)500ml
Motor power
Overall dimension(mm)
heads
heads
heads
(KW)
BFGF16-12-6
16
12
 6

2000bph

1.5KW
2100x1400x2500
BFGF18-18-6
18
18
 6
3000bph
2.2KW
2460x1720x2650
BFGF24-24-6
24
24
 8
4000bph
3KW
3100x2100x2650
BFGF32-32-10
32
32
10
6000bph
4KW
3500x2500x2650
BFGF40-40-10
40
40
12
8000bph
7.5KW
4600x1800x2650

FAQ

Q1: What is your company’s main products?
Filling Machine,Palletizer, Conveyors, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.


Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.


Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.


Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.


Q5:Where are you located? Is it convenient to visit you?
We are located in Zhangjiagang. Traffic is very convenient.


Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always perate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE.
