Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH
Specifications
Brand Name :
Jiayuan
Model Number :
CGF
Certification :
CE SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 set
Price :
USD 20000-21000 per set
Supply Ability :
15 sets per month
Delivery Time :
30 work days
Packaging Details :
packed by standard export wooden cases
Dimension(L*W*H) :
2460x1720x2650mm
Weight :
3500kg
Filling precision :
±5(liquid level fixed)
Bottle type :
Round Bottle
Volum :
100ml-750ml
Processing Types :
3 in 1 filling machine
Description

Stainless steel non-carbonated water PET bottle automatic bottle filling machine 2000-18000 BPH

Main Features

1. The water filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part in the bottle water machine is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part in the water filling machine is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

4. Capping part in this water filling machine is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

Water filling Machine model detail
Technical Data
Model CGF14/12/4 CGF18/18/6 CGF24/24/8 CGF32/32/10
The number of Washing, Filling, Capping 14-12-4 18-18-6 24-24-8 32-32-8
Producing capacity;
The number of bottle(600ml)/hour		 2000-4000 5000-7000 8000-12000 12000-15000
Applicable bottle specifications (mm) φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2) 2~3
Motor power (kw) Main motor 1.5kw Main motor 2.2kw Main motor 3kw Main motor 4kw
Outside vacuum pump power (kw) 0.75 1.1 1.5 2.2
Overall dimension (mm)
(LxWxH)		 2100x1400x2500 2460x1720x2650 3100x2100x2650 3500x2500x2650
Weight(kg) 2500 3500 4200 5500

Technical Data
Model CGF40/40/10 CGF48/48/12 CGF60/60/15
The number of Washing, Filling, Capping 40-40-10 48-48-12 60-60-15
Producing capacity:
The number of bottle(600ml)/hour		 16000-20000 20000-24000 25000-30000
Applicable bottle specifications (mm) φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2) 2~3
Motor power (kw) Main motor 7.5kw Main motor 9.5kw Main motor 12kw
Outside vacuum pump power (kw) 2.2 3 4
Overall dimension (mm)
(LxWxH)		 4600x1800x2650 5200x4500x3400 6500x4500x3400
Weight(kg) 6800 7600 9800

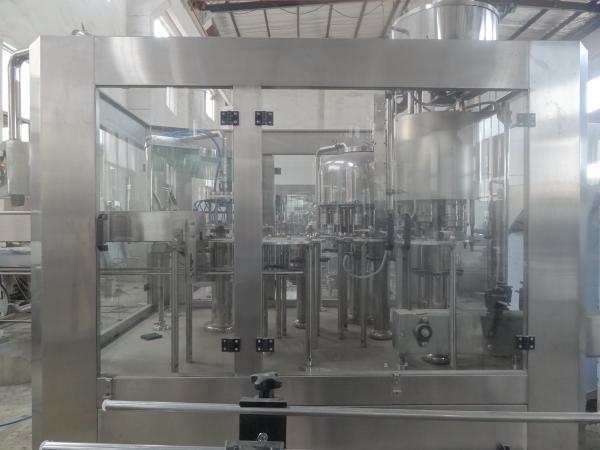

Machine in our factory

Stainless Steel Non Carbonated Water PET Bottle Filling Machine 2000-18000 BPH

Our Advantage
Design Ability All the machines designed by CAD
Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
Reliability Electrical parts from world famous suppliers
Professional

Focus on beverage and cosmetics packing machines

Exported to over 20 countries with good reputation

6 years Alibaba Golden supplier without complaint
Good Service: Service include complete production line design, manufacturing, on-site installation & aftersales maintenance.
Profession on Export: Authorized export licence.

Pls contact me and let's talk more details, thanks in advance!

Zhangjiagang Jiayuan Machinery Co., Ltd

Tel:+86-15962351473

wechat:15962351473

skype:Joyce1989280

whatsAPP:+8615962351473

Factory Add:

No.198,Zhenbei Road,Leyu Town, Zhangjiagnag City , JiangSu Province .PRC

POST CODE :215625
