Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity
Specifications
Brand Name :
JIAYUAN
Model Number :
BCGF8-8-3
Certification :
CE SGS
Place of Origin :
China（mainland）
MOQ :
1 set
Price :
pls inquiry
Supply Ability :
99 sets per year
Delivery Time :
35 working days
Packaging Details :
standard wooden cases
Product name :
glass bottle beverage filling machine
function :
rising filling capping
capacity :
3000B/H
suitable bottle :
glass bottle
suitable cap :
crown cap, aluminum screw cap, ring-pull cap
filling material :
juice, water, tea, non-carbonated drink
Description

Aluminum Cap Glass Bottle Juice Filling Machine, Small Juice Production Machine

Description

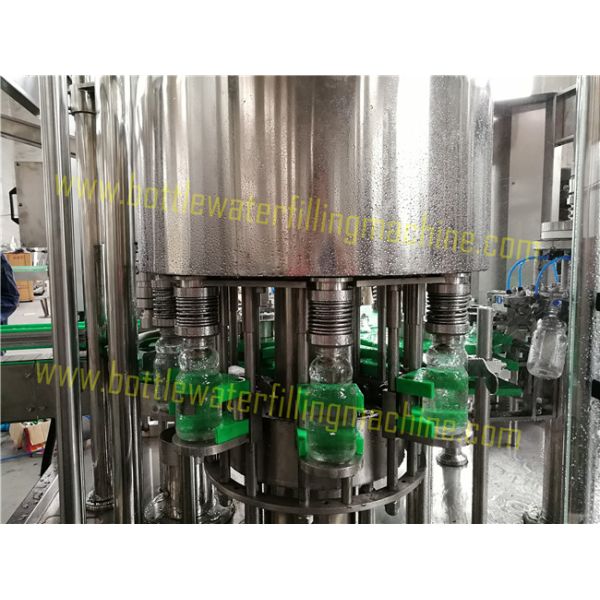

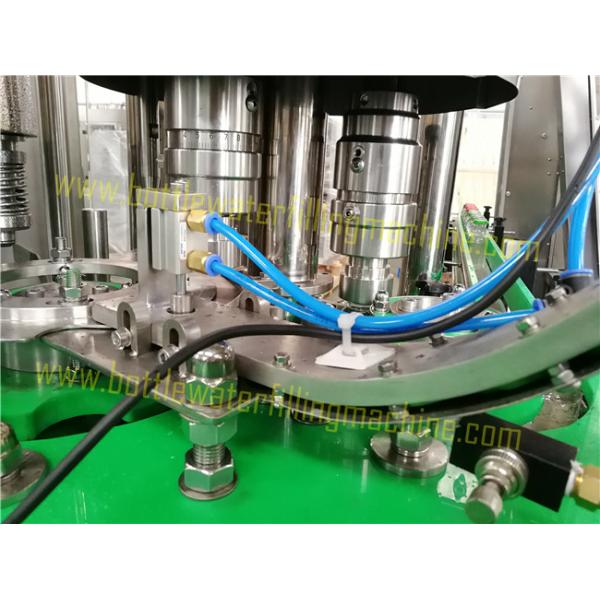

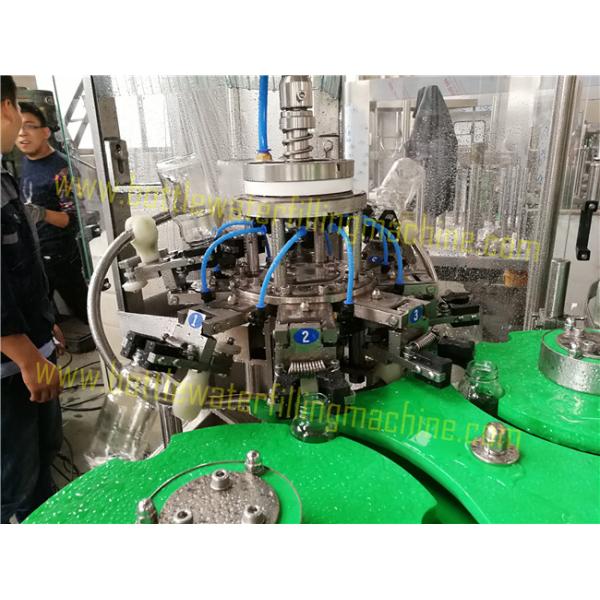

This machine is for glass bottle beverage production, it is a monoblock one, integrates rising filling and capping 3 function in one unit. it's rough capacity is about 3000B/H (for 500ml glass bottle). It adopt normal pressure filling, suitable for non-carbonated beverage, like water, juice, tea, milk and so on.

If the bottle neck diameter is same, it can be used to fill different size bottle, only by changing the guiding board.

Character

1). Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
2). Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3). The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4). Sanitary filling head system is of umbrella structure, high filling speed.

Parameter

model BCGF8-8-3
Suitble bottle Glass bottle
Suitable cap Crown cap, aluminum screw cap
Filling material Water, juice, tea, milk
Fillingi type Normal pressure filling
Rising/filling/capping heads number 8/8/3
capacity 3000B/H(for 500ml)
voltage 380V 50Hz or customized
Material SUS304
Dimension 1900*1500*2200mm
weight 2000kg


Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity

Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity

Aluminum Cap Glass Bottle Juice Filling Equipment 3000b/h Capacity

Beside this machine, we also can customize various special design, just have a furthur learn... ...
