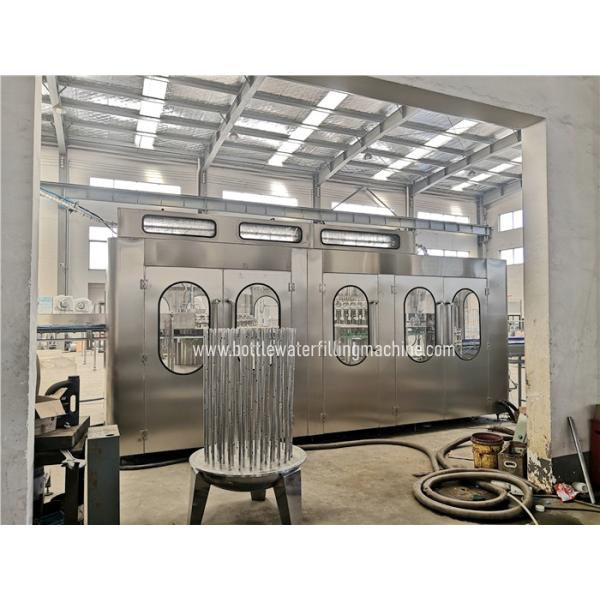

Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Specifications
Brand Name :
JIAYUAN
Model Number :
RCGF50-50-15
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
please inquire
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per year
Delivery Time :
40 working days
Packaging Details :
standard wooden case
Product :
juice bottling machine
function :
rinser filler capper
rinsing heads :
50
filling heads :
50
capping heads :
15
speed :
24000BPH
Contraol :
PLC+Touch screen
suitable bottle :
200-2000ml
Description
Complete Fruit Juice Production Line /Orange/ Flavoured Juice Filling Machine
model
RCGF8-8-3
RCGF14-12-5
RCGF16-16-5
RCGF24-24-6
capacity(BPH)
1500
4000
5500
8000
washing heads
8
14
16
24
filling heads
8
12
16
24
capping heads
3
5
5
6
suitable bottle
PET bottle plastic bottle
diameter of bottle
55-100mm
height of bottle
150-300mm
suitable cap
plastic screw cap
weight(kg)
1500

2000
3000
5000
main motor power(kw)
1.2
1.5
2.2
2.2
Products Description
Complete Fruit Juice Production Line /Orange/ Flavoured Juice Filling Machine
Application
Tea,juice,flavor drink,milk beverage etc.
RCGF series drinking water filling machine integrates bottle washing, water filling and capping into one monoblock, and the three processes are carried out full automatically. It is used in the hot filling of juice and tea beverage. It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that grade rubber.

Process of juice beverage production line
Raw water → raw water tank → booster pump → activated carbon filter → ion softener → precision filter → reverse osmosis unit → ultraviolet sterilizer → pure water tank → pure water pump → automatic filling line → high-speed shear tank → high-temperature pump → sugar → high-temperature pump → syrup filter → blending tank Tank → vacuum degassing machine → temporary storage tank → ultra-high temperature instantaneous sterilization → fully closed heat preservation tank → hot filling and blowing machine → automatic bottle machine → three-in-one machine → lamp detector → inverted bottle sterilizer → spray cooler → automatic set of standard shrinker, strong dryer → inkjet printer →PE film packing machine (packing machine)
The next machine is CGF50-50-15, which capacity is 22000-24000BPH
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine
Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine

We provide the turn-key solution, including: water treatment system, injection system, bottle blowing machine, bottle filling machine, packaging machine, conveyor system, electrical system, cable wire, etc, and related raw materials: bottle preforms, bottle cap, plastic particles, labels, shrink film, clean room building material etc. The corresponding pre-sale whole plant planning drawings and after-sales installation and debugging maintenance, we all have a A to Z complete service.

Monoblock 1500bph Dia 100mm Juice Bottle Filling Machine

FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near fromshanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer shouldarrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery
.
