6000can/H 54.9mm Fruit Juice Aluminum Can Filling Machine Non Gassy
6000can/H 54.9mm Fruit Juice Aluminum Can Filling Machine Non Gassy
Specifications
Brand Name :
Jiayuan
Model Number :
GF12-4
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $8,700-500,000 / Set
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Plastic film wrapping,wooden boxes packaging
Filling material :
Non-gas beverage
Weight :
3450KG
Function :
Filling sealing
Warranty :
1 year
Description

2 In 1 Unit Tea Drink Aluminum Can Filling Machine , Vegetable / Fruit Juice Canning Machine

This machine is developed by our company on the basis of reference to the foreign filling and sealing machine for non gassy beverage and combining with China's national conditions.It is mainly used for filling and sealing all kinds of iron and aluminum cans.It has the characteristics of fast filling and sealing speed, consistent height between the liquid level in the tank and the opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation and so on. It is the most ideal filling and sealing equipment for canning factories.This product conforms to the national standards and enterprise standards, and is allowed to leave the factory after passing the strict inspection and test.

Technical parameter

Model GF12-4
Capacity (can/Hour) 6000
Suitable can size ( ml )

Can diameter: 54.9mm; 57.5mm

Can height:134mm; 168mm
Can size 200/202/206/209
Heads of filling 12
Heads of sealing 4

Compressed air:

 0.4-0.8mpa, flow rate: 0.16m3/min
Filling temperature(℃ ) Normal temp
Power source specification AC380V/50HZ
Power (kw) 10
Overall dimension(mm) 3450*1600*2150
Weight(kg) 3450

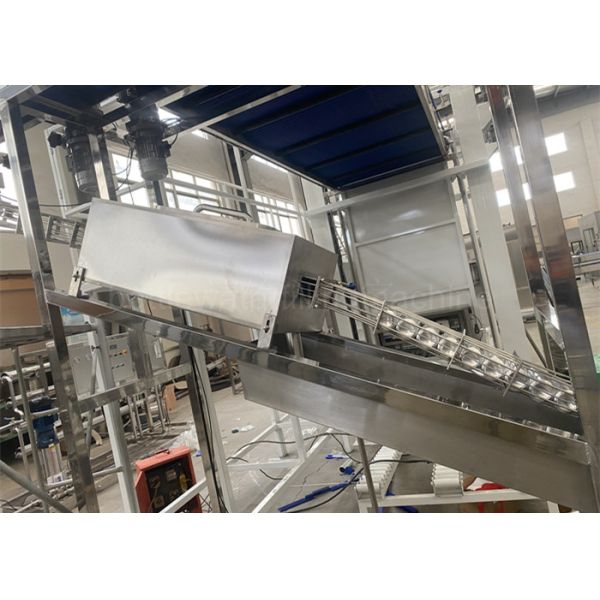

Can washer

6000can/H 54.9mm Fruit Juice Aluminum Can Filling Machine Non Gassy

Common faults and troubleshooting

No Common faults troubleshooting
1 the filling volume of each valve

Adjust the round nut of the fixed sealing ring
2

The lid does not fall smoothly

 The distance of the lid faller is shifted. Check whether the bolt is loose. If it is found, adjust it and check whether the lid is damaged.
3 After the filled can is sealed, the lid is damaged 1. The bolt on the sealing shaft is loose, please adjust it. 2. There is burr on the sealing head, please polish it.
4 lid slide way is not smoothly There is burr in the slide way,please polish it.
5 After the filled can is sealed,it can’t meet the technical requirement

1.The roller indenter produces burrs ,it need to be replaced.

2.The spring deformation or looseness in the chassis device,it should be adjusted or replaced.

3.The gap between the roller and the indenter is displaced, please adjust it.
6 The machine suddenly stops when it is running

1. There is a foreign matter stuck between the transmission gears, please remove it.

2. The small shaft of the mandrel in the support chassis is loose, and the small shaft bolt should be tightened.

3.The bearing in the rotating body is damaged, please replace it.
7 Cans fall down when feeding cans

1. the pulling wheel or the can feeding chain shift.Please adjust

2. The baffle in the can feeding device is displaced, please adjust it.

3. The baffle is shifted in the cover drop device, please adjust it.
