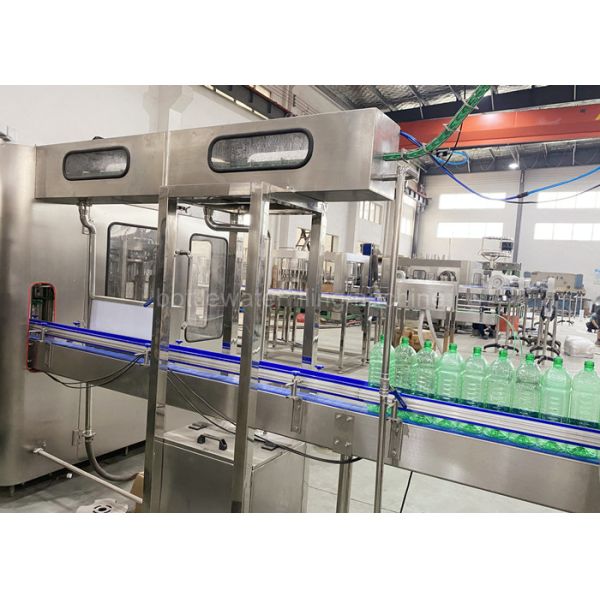

4 In 1 Automatic Liquid Filling Machines , Pulp Juice PET Bottle Filling And Capping Machine
4 In 1 Automatic Liquid Filling Machines , Pulp Juice PET Bottle Filling And Capping Machine
4 In 1 Automatic Liquid Filling Machines , Pulp Juice PET Bottle Filling And Capping Machine
4 In 1 Automatic Liquid Filling Machines , Pulp Juice PET Bottle Filling And Capping Machine
Specifications
Brand Name :
Jiayuan
Model Number :
RCGF12-12-12-4
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $15,000 - 800,000 / Set
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 work days
Packaging Details :
wooden box
Driven Type :
Electric
Voltage :
380V 50Hz
After-sales Service Provided :
Engineers available to service overseas
Control system :
PLC control
Material :
Food grade stainless steel 304
Capacity :
3000BPH(500ml)
Description

4 In 1 Automatic Liquid Filling Machines , Pulp Juice PET Bottle Filling And Capping Machine

Quick information:

This machine is customized by customer's special requirements.It can fill juice,tea drink,flavored water,milk drink etc into plastic/PET bottle.It integrates washing,juice filling,pulp filling, capping four functions into one machine.It is suitable for 200-2000ml bottle.It is widely used for beverage factory.

Main features

The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

Technique parameter

Model RCGF12-12-12-4
Productivity 3000BPH
Rinsing Head 12
Filling Head 12
Filling head(Pulp) 12
Capping Head 4
Bottle Volume 200ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.3 m3/min
Motor Power 4.03kW
Voltage 380V/50HZ,3 phase
Dimension(L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling

Product Features

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.
