Specifications
Brand Name :
JIAYUAN
Model Number :
QGF-600
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1piece
Price :
US $30,000 - 50000 / Set
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
wooden box
Material :
Stainless steel 304
Power :
3.8kw
Power supply :
380V/50HZ(adjustable)
Automatic Grade :
Fully-automatic
Dimension(L*W*H) :
3800*1300*1600MM
Filling bottle size :
3-5gallen/3-19L
Capacity :
600bottles per hour
Processing type :
Water
Description

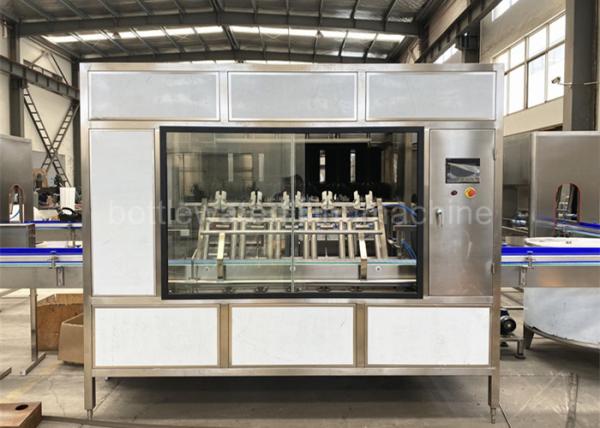

5 Gallon Filling Machine For Drinking Water Filling Line , 20 Liter Jar Water Bottling Plant

The 5 gallon water filling line mainly includes :

1. Decapping machine
2. Outside Washing machine
3. 5 gallon filling capping machine
4. cap elevator
Features of 5 gallon filling machine:
The machine specially produces gallons bottled drinking water.

The machine is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

All the parts contacting the water and other liquid is made of stainless steel, whose surface is polished, easy to clean.

Technical parameter of 5 gallon filling machine:

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600

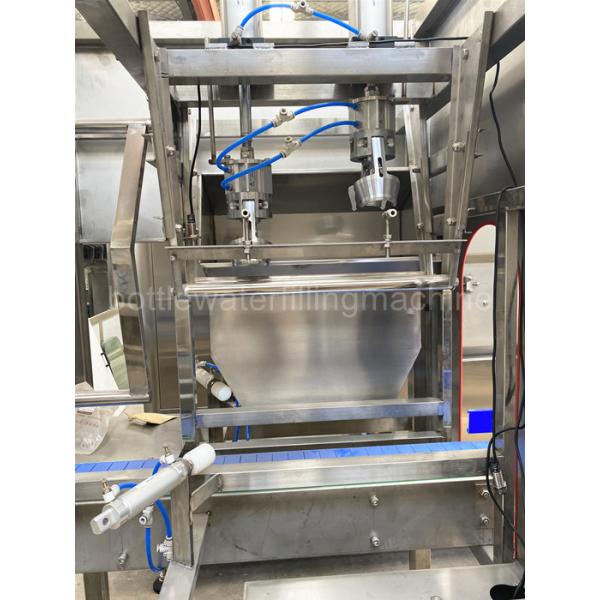

Automatic decapper--
After the bottle enters the extraction cover area, the detection element completes the detection of the barrel position, and the cylinder block of the bottle block position the barrel. Pull cover cylinder action, pull cover head overall down, grab cover cylinder action, grab cover back pull cover cylinder action, pull cover head overall up, complete pull cover.
600BPH 5 Gallon Filling Machine , 20L Jar Water Bottling Equipment 7.5KW

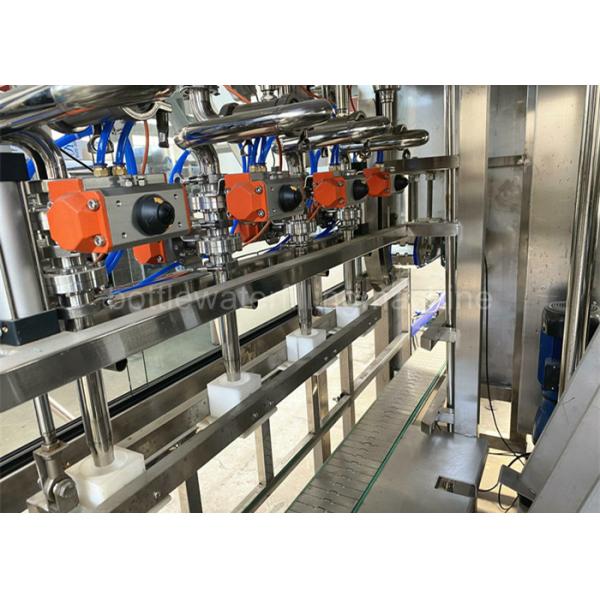

5 gallon bottle filler
600BPH 5 Gallon Filling Machine , 20L Jar Water Bottling Equipment 7.5KW
