Sparkling Energy Drink Glass Bottle Filling Machine For Carbonated Drink
Sparkling Energy Drink Glass Bottle Filling Machine For Carbonated Drink
Specifications
Brand Name :
JIAYUAN
Model Number :
DGCF18-18-6
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
US $30,000 - 560,000 / Set
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
wooden box
Warranty :
One year for free
Cap type :
Crown cap
Driven type :
Electric
Dimension(L*W*H) :
2450*1800*2200mm
Filling capacity :
4000BPH(500ml)
Filling type :
Balanced pressure
Weight :
3000kg
Power :
5.03KW
Description

Automatic Aerated Water Bottling Plant , Sparkling Energy Drink Filling Machine For Carbonated Drink Production Line​

Video show:

https://www.youtube.com/watch?v=GPTohJGTaE4&feature=share

The glass bottle carboanted beverage filling machine adopts international advanced technology, scientific and reasonable design, beautiful appearance, convenient operation and maintenance, high degree of automation.This machine is the ideal equipment for beverage filling plant.

Detail image

Washing heads

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

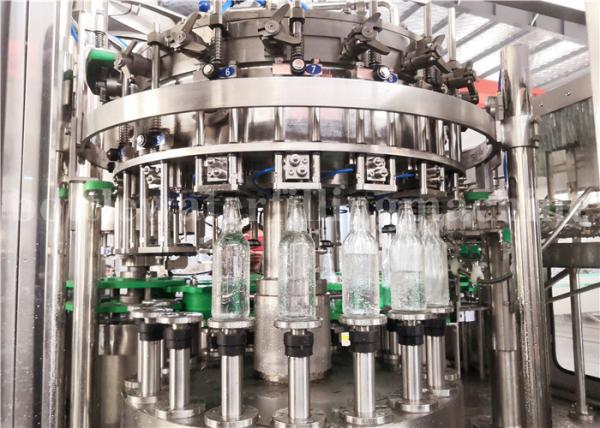

Filling heads

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.

Capping heads

This series of automatic glass bottle gas beverage filling machine can meet the filling and sealing requirements of caps, nuts and other different sealing methods.
Adopt magnetic head, transfer torque through strong magnet, adjustable torque, meet the needs of various head.

Technique parameter:

Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
Capacity :500ml 3000 8000 12000 16000
Bottle shape: roud or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
Filling volume :(L) 3.5 4 6 8
Overall size:(mm) 2450*1800*2200 2780*2200*2350 3600*2650*2350 3800*2950*2400
Weight: (kg) 3000 4000 5000 6000

Features:

1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.

5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.

6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.
