200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
200-2000ml RO Minral Water Filling Machine With Labeling Function
Specifications
Brand Name :
JIAYUAN
Model Number :
CGF16-12-6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
please inquire
Supply Ability :
100 sets per year
Delivery Time :
45 working days
Packaging Details :
standard wooden case
PRODUCT :
water bottling line
function :
filling, labeling, packing
machine model :
16-12-6
capacity :
1000-4000BPH
Bottle size :
200-2000ml
voltage :
380V 50HZ 3PHASE
Description

Best Quality Minral Water Filling Machine, Complete Bottle Water Production Line

We can provide complete line plants for PET bottled water production:

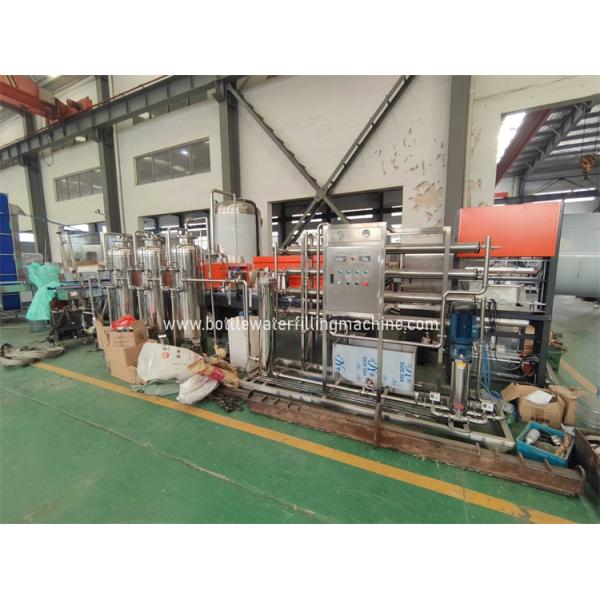

1. RO water treatment

200-2000ml RO Minral Water Filling Machine With Labeling Function

2. washing filling capping 3 in 1 machine

The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.

Model
CGF16126
CGF18186
CGF24248
CGF323210
CGF404012
CGF505015
washing, filling and capping heads
16-12-6
18-18-6
24-24-8
32-32-10
40-40-12
50-50-15
Production capacity(600ml)

(B/H)
2000-4000
5000-7000
8000-12000
12000-15000
16000-20000
20000-24000
Motor power(kw)
2.2kw
2.2kw
3kw
5.5kw
7.5kw
11kw
Weight (kg)
2500
3500
4500
6500
8500
9800

200-2000ml RO Minral Water Filling Machine With Labeling Function

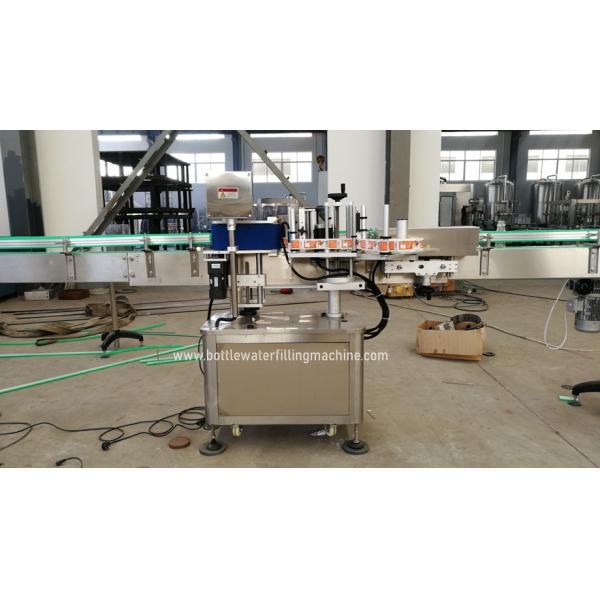

3. Automatic labeling machine

This labeling machine is equipped with computer touch -screen which layout very large

scale integrated circuit .it is controlled by micro-computer with English character touch

screen, realized the man-machine communication .Micro-computer configuration is helpful

for all data input by touch screen and also for all-round control the running condition once

machine started.

200-2000ml RO Minral Water Filling Machine With Labeling Function

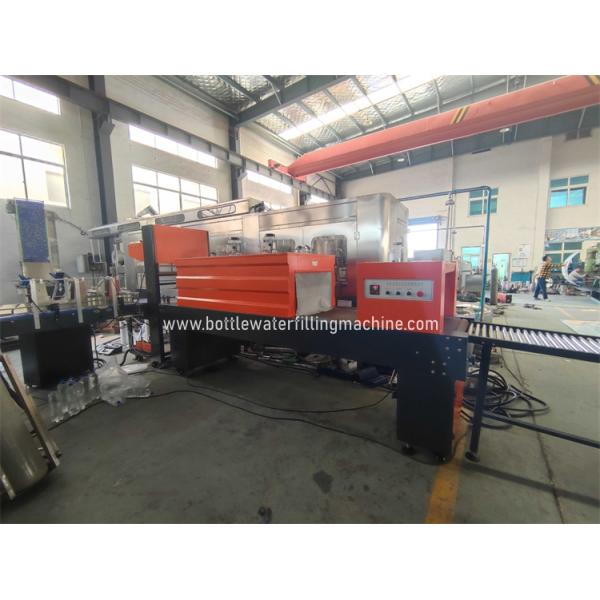

4. automatic shrink wrapping machine

● frequency converter speed adjust,two segment convey device.

● Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.

● Proximity switch control film length.

● Touch screen, PLC system greatly increase facility movement reliability.

200-2000ml RO Minral Water Filling Machine With Labeling Function

final products

200-2000ml RO Minral Water Filling Machine With Labeling Function

Our service

Pre-Sales Service

* Inquiry and consulting support.

* Client workshop layout design .

* Bottle design .

* Sample testing support.

* View our Factory.

After-Sales Service

*Send technicians to Client's workshop guide machinery installation and commissioning , and trainning the workers operate and machinery maintenance .

*Provide machinery necessary spare parts and soltions .

* Engineers available to service machinery overseas.

Why choose us?

(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
