450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
450BPH 20L 5 Gallon Water Filling Machine Compact Structure
Specifications
Brand Name :
JIAYUAN
Model Number :
QGF-600
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
please inquire
Supply Ability :
100 sets per year
Delivery Time :
40 working days
Packaging Details :
standard wooden case
Product name :
5 galllon water production machine
function :
decapper, filling, labeling
capacity :
600BPH
machine material :
stainless steel SUS304
Power :
380V 50HZ 3PHASE
Warranty :
1 year
Description

150BPH 300BPH 450BPH 600BPH Full Set 20 Liter Bottled Water 5 Gallon Jar Filling

this is 5 gallon water production line, capacity is 600BPH,

includes:

1. decapper;

2. internal&external brushing machine;

3. rinsing filling capping machine;

4. labeling machine;

5. shrinking maching;

6. bagging machine

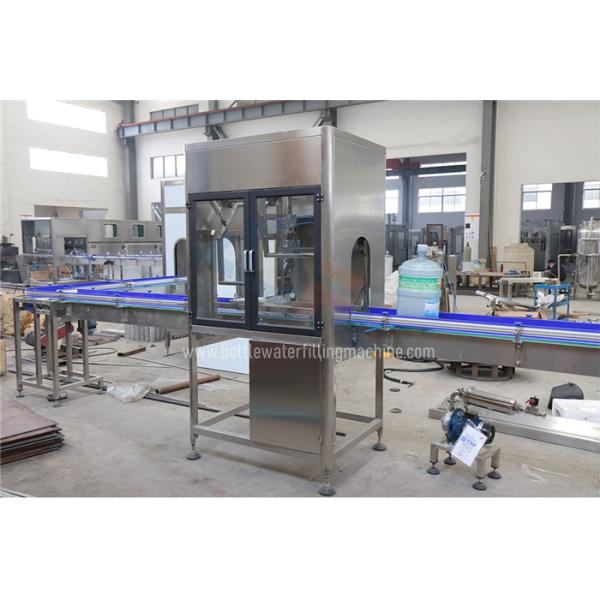

decapper

450BPH 20L 5 Gallon Water Filling Machine Compact Structure

rinsing filling capping machine

450BPH 20L 5 Gallon Water Filling Machine Compact Structure

450BPH 20L 5 Gallon Water Filling Machine Compact Structure

QGF-600 barrel filling line is used to produce 5 gallon drinking water. This machine composed with Rinse, filler and capper. It is the ideal equipment for mineral water, distilled water and pure water producing process. The machine is made of great stainless steel which is corrosion resistant and easy cleaning. All the pneumatic parts are from the famous brand AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American
Sprayer Company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components

We have different capacities

Model QGF-120 QGF-300 QGF-450 QGF-600 QGF-900
Filling Heads 1 2 3 4 6
Capacity 150 300 450 600 900
Volume(gallon) 18.9 18.9 18.9 18.9 18.9
Barrel size (mm) φ 270 x 490 φ 270 x 490 φ 270 x 490 φ 270 x 490 φ 270 x 490
Capacity(b/h) 120 300 450 600 900
Gas Pressure(Mpa) 0.4 - 0.6 0.4 - 0.6 0.4 - 0.6 0.6 0.6

Gas Consumption

(m3/min)

 0.37 0.6 0.8 1 1.5
Moto Power(kw) 1.38 3.8 3.8 7.5 9.75
Rated Voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight(kg) 680 1500 2100 3000 3500
