Specifications
Brand Name :
JIANYUAN
Model Number :
RCGF50-50-15
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
please inquire
Supply Ability :
50 sets per year
Delivery Time :
45 working days
Packaging Details :
5*3.5*2.3m
Product Name :
beverage filling machine
Filling Material :
water, juice, still beverage
Filling heads :
50
Capacity :
24000BPH
Control :
PLC+inverter+HMI
Material :
stainless steel SUS304
Description

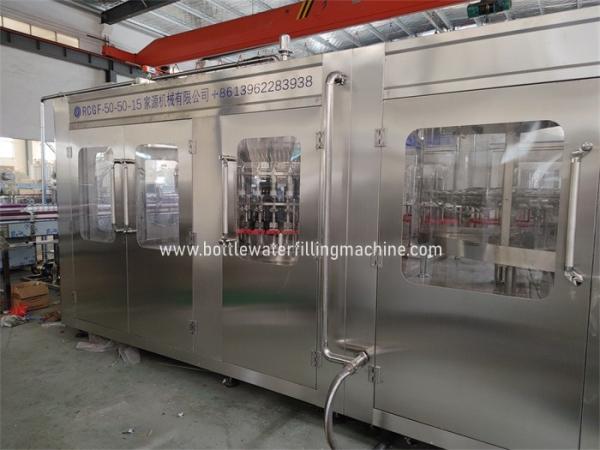

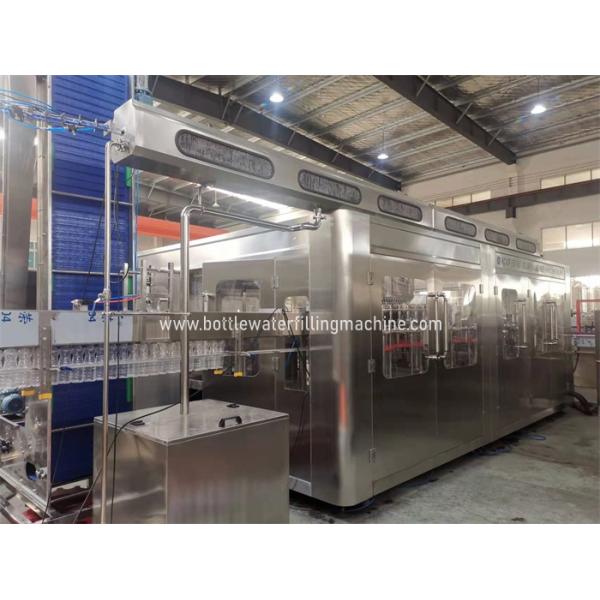

Water Bottle Filling Machine, Stainless Steel Liquid Beverage Production Line

We can provide complete line plants, from A to Z, the available capacity is from 1000 to 30000BPH,

Character:

1. This machine is washing filling capping 3 in 1 machine, can fill water, juice, flavor drink

and other still beverage;

2. The machine can work on bottles of different size, from 100-2000ml, only by chaning some spare parts;

3. filling heads 50 pieces, capacity can reach 24000BPH (bottles per hour);

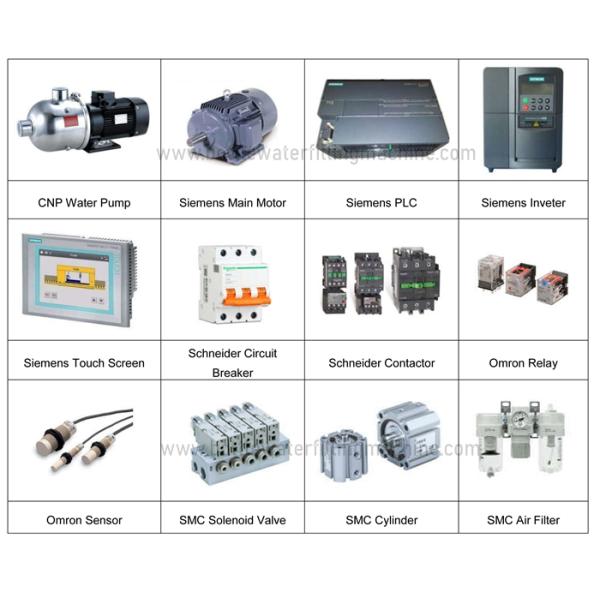

4. The machine is controlled by Inverter, PLC and HMI, easy to operate.

5. All parts connect liquid are made of stainless steel SUS304.

Water Bottle Filling Machine Stainless Steel Liquid Beverage Production Line

Water Bottle Filling Machine Stainless Steel Liquid Beverage Production Line

Washing Part of Water Filling Machine
1.Stainless steel 304/316L washing heads.
2.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
3.Washing pump is made of stainless steel.
4. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water
thoroughly and save flush bottle.

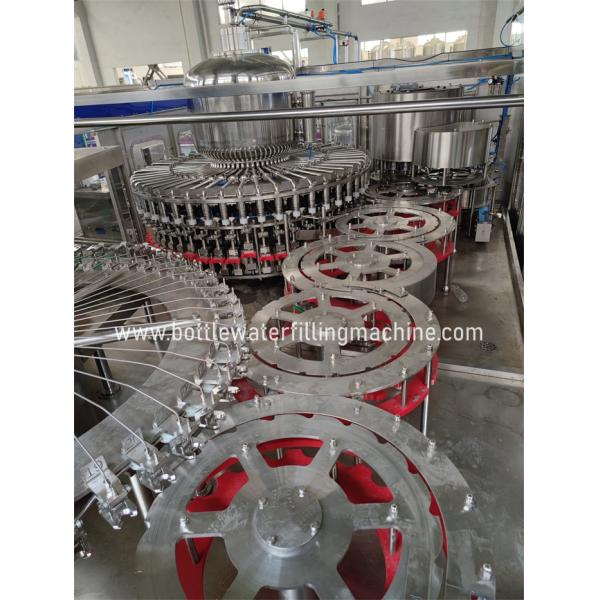

Filling part of water filling machine
1.Filling method for gravity filling. 2.Filling valve manufactured SUS 304/316L. 3.High precision, high speed liquid filling. 4.Filling move by the rack drive system through gear transmission. 5.Hydraulic cylinder controlled by a float liquid level.

Capping Part of Water Filling Machine
1.Automatic check,no bottle no capping. 2.Capping heads in stainless steel 304/316L. 3.Capping heads stop working when lack of bottle. 4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle. 5.High efficiency centrifugal principle.
Machine Size
6000×3000×2350MM
Production Capacity
24000 bottles per hour
Bottle Size
100ml~2000ml
Weight
7000KG
Bottle Material
PET Plastic
Machine Material
Stainless Steel 304/316L
Way Of Filling
Gravity Filling
Pressure
0.7Mpa
Air Comsumption
0.8m³/min

Water Bottle Filling Machine Stainless Steel Liquid Beverage Production Line

if you are interested please contact freely...
