Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line
Specifications
Brand Name :
JIAYUAN
Model Number :
BDCGF16-16-12-6
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
please enquire
Supply Ability :
50 sets a year
Delivery Time :
45 working days
Packaging Details :
standard wooden case
Product name :
glass bottle filling machine
filling material :
carbonated soft drink, cola, soda
function :
rinsing filling capping
capacity :
2000BPH
Bottle size :
200-2000ml
machine material :
stainless steel SUS304
Description

We are a comprehensive professional supplier of liquid beverage packaging machinery, which integrates development, manufacture and sales. It has successively introduced several modern CNC processing equipment from the United States, Japan and other countries and regions. At present, it has about 50 million fixed assets.

We can supply Turn-key project and have professional engineers for after-sales service.At present, the equipment is exported to domestic and overseas markets more than 30 regions and countries. Welcome more friends come to negotiate and consult.

Glass Bottle Carbonated Soft Drink Filling Machines, Production Line, Equipment

Automatic filling machine

Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line

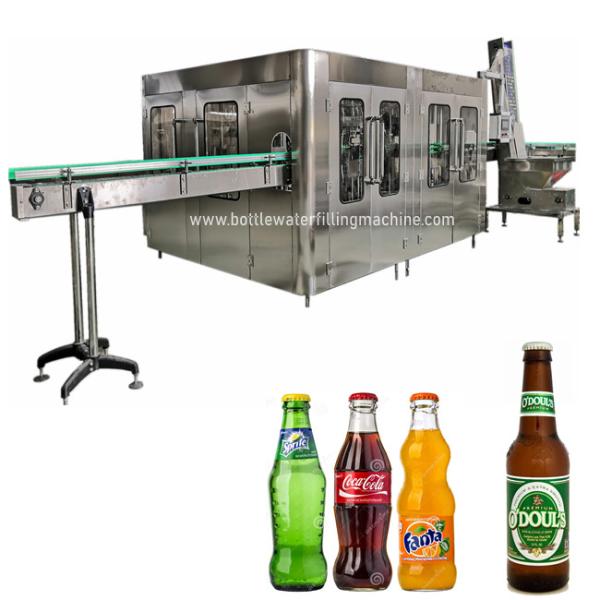

This is glass bottle carbonated soft drink filling machine, adopts isobaric filling, can fill all carbonated soft drink,

like cola, soda, sparkling water, lemonade, fizzy drink and so on, also can fill beer and water.

The machine combines four parts together, disinfection water rinsing, pure water rinsing, filling and capping.

It can fill different size of bottle from 20cl to 200cl, like 33cl, 50cl, 75cl, 100cl, 150cl;

It's controlled by frequency converter, PLC and HMI, easy to operate.

Automatic labeling machine

Glass Bottle Carbonated Soft Drink Rinsing Filling Machines 2000ml Production Line

There are different capacity

Model
Washing
Filling
Capping
Capacity(b/h)500ml
Motor power
Overall dimension(mm)
heads
heads
heads
(KW)
BFGF16-12-6
16
12
 6

2000bph

1.5KW
2100x1400x2500
BFGF18-18-6
18
18
 6
3000bph
2.2KW
2460x1720x2650
BFGF24-24-6
24
24
 8
4000bph
3KW
3100x2100x2650
BFGF32-32-10
32
32
10
6000bph
4KW
3500x2500x2650
BFGF40-40-10
40
40
12
8000bph
7.5KW
4600x1800x2650

FAQ
Q1:Are you a trading company or a manufacturer?
A1:We are an old filling machine company, specializeing in filling machine, berverage line,water treatment, shrinking label machine and Bottle blowing machine. Now we are one of leading filling machine manufacturer in china.

Q2:What's your guarantee or the warranty of the quality if we buy machines?
A2:We provide quality machines with top brand.components and qualified material. Our warrantee time is 2 years after installation and commissioning, within 2 years the machines get quality problem, we will take full responsibility and provide services.

Q3:When can I get machine after I paid?
A3:We will deliver filling machines on time as the date we agreed both side.

Q4:How can I install my drinking water filling machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the drinking water filling machines. Also supporting online installation.

Q5:What's the delivery time?
A5:50 days after the T/T deposit or L/C for unit machine.60-90days for project line.
