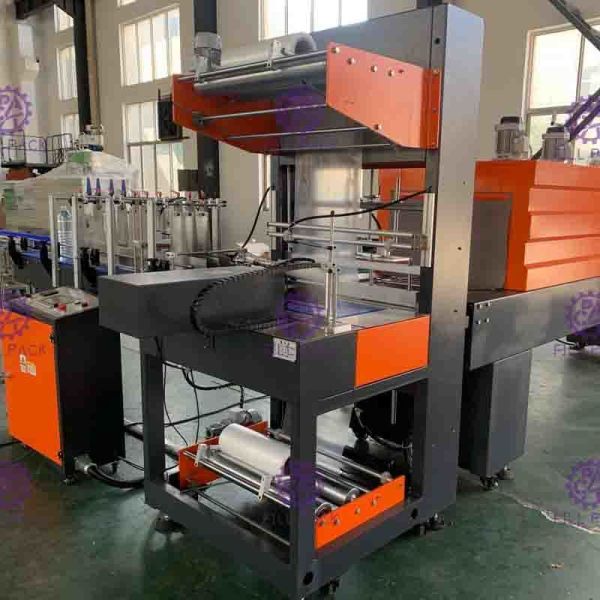

5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
5000BPH Mineral Water Plastic Bottle Shrink Packing Machine
Specifications
Place of Origin :
China,JiangSu,Zhangjiagang
Brand Name :
FillPack
Certification :
CE. ISO9001
Model Number :
WD-150A
Operation mode :
Automatic / Manual mode
Automation :
PLC control
Application :
Shrink wrapping for containers
MOQ :
1 set/pcs
Price :
Negotiation
Packaging Details :
Sea worthy package
Delivery Time :
35-40 days after deposit receipt
Payment Terms :
TT / LC /
Supply Ability :
1 set / month
Capacity :
16 bags / min
Bottle type :
Plastic / glass bottles / cans
Power :
20kw
Dimension :
5100*3200*2100
Description

Mineral Water Plastic Bottle Packing Machine 5000BPH Shrink Wrapping Equipment

Quick Detail:

1, Capacity: 16 bags / min

2, Automation: TOTALLY automatic

3, Bottle type: Plastic / glass bottles / cans

4, PLC control

5, Operation mode: Automatic / Manual mode

Description & working principle:

This kind of bottle packing machine is L-type bottle shrink packing machine is extensively use for external packaging in such industries as medicine, food, drinks, dairy, and cosmeics.

Here we connect to the drink liquid filling line. After finish filling, capping, sleeve labeling, and code priting, the bottles will be arranged by the shrink wrapping machine in row to wrap and shrink.

Bottles are separated by the plate according to the format. The pushing plate pulled by the air cylinder will push the bottles forward, and then the shrink film will pull down and cut by the heat blade. And then through the shrinking tunnel.

There are several heating lamps will be installed in the shrinking tunnel to shrink the film on the bottle tightly.

Specifications:

Capacity 10-16 pcs/min
Shrinking time 0.5-1.5s
Shrinking temperaturea 140-160°c
Height of belt conveyor 800-1200mm
Power 20kw
Air pressure 0.6-0.8 Mpa
Packaging dimension (L*W*H) 600*400*350mm
Overal dimension (L*W*H) 5100*3200*2100

Main component detail list

no Name spec number brand
1 board production component
2 Plant metal component
3 pneumatic component 1 Taiwan Airtec
4 Electric controlling component and accessory
Photoelectric switch 4 South Korea Autonics
Proximity switch 2 South Korea Autonics
PLC 1 Thinget
Touch screen 1 Thinget
Frequency converter 3 Taiwan Telta
AC contactor 3 France Schneider
Mid-relay 8 France Schneider

Competitive Advantage:

1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
