Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
FillPack
Certification :
CE. ISO9001
Model Number :
LM-DZ
Condition :
New
Application :
Plastic bottle / Glass bottle round containers
Automation :
Automatic
Voltage :
110/220V 50/60HZ/customize
Warranty :
1 year
After-sales service provided :
Engineers available to service machinery overseas
Label type :
Adhesive stick label
Operation mode :
Automatic / manual
MOQ :
1 set/sets
Packaging Details :
Sea worthy package
Delivery Time :
30 days after deposit receipt
Payment Terms :
TT/LC/Wertern union
Supply Ability :
1 set/sets/month
Description

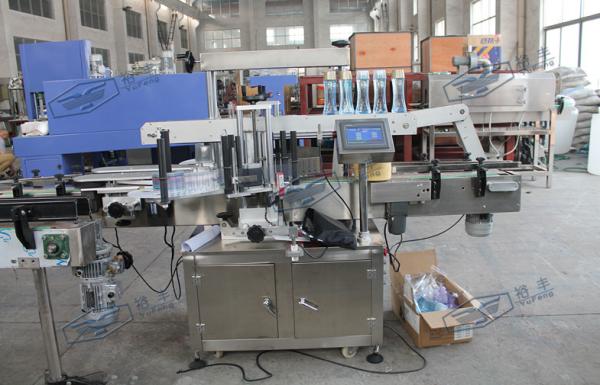

Auto Double Side Bottle Labeling Machine For Beverage Filling Line

Quick Detail:

1, Bottle type: Round containers
2, Label type: Adhesive labels
3, Doule side labeling (front and back side)
4, Connect to production line
5, Automation: Automatic labeling machine
6, Capacity: 5000BPH


Description:

This automatic labeling machine is used to label adhesive labels onto round containers front and back side. It can be connected to prodution lines to fulfill automatically working.

The labeling macine can be adjusted according to the container's size.


Features:

1. The machine is suitable for round bottles;
2. The machine can be equipped with printer or ink jet code printer according to customer’s requirement;
3. The machine can operate independently, it is easy to connect with conveyors;
4. It is suitable for adhesive labels.


Specifications:

Machine size2000*1650*1500mm
Output speed100pcs/min, 20m/min
Height label object30-350mm
Thickly label object20-200mm
Label height5-200mm
Label length25-300mm
Labeling precision+-1mm
Roll inner diameter76mm
Roll outer diameter300mm
Power supply100/220V 1.5HP 50/60HZ
Printer gas cunsumption5kg/cm2



Configurations

NoName of partsModelQtyBrand
1Labeling stepper motorMT34FN46042M8-012Italy ever
2Labeling stepper driverLW8062Italy ever
3Conveyor motorRV50-30-0.55FA-DZ-ZA-b061VTV
4Conveyor belt motor gearbox1VTV
5Calibration motor5RK90RGU-CF/5RK-15-K1VTV
6Calibration motor gearbox1VTV
7Separate bottle motor5RK90RGU-CF/5RK-30-K1VTV
8Separate bottle motor gearbox1VTV
9Labeling photoelectricFS-V111KEYENCE(JAPAN)
10Labeling detection photoelectricFS-V112KEYENCE(JAPAN)
11PLC controllerDVP-14SS1DELTA(TAIWAN)
12Operation interfacePWS5600S-S1HITECH(TAIWAN)
13Calibration chain40P3mLILAI
14Conveyor chainLL13S(82.6)5.6mLILAI
15Conveyor drive chain wheel19TP38.11LILAI
16Conveyor chain wheel19TP38.11LILAI
17TransformerBK2501GREATWALL(SHANGHAI)
18Synchronous cog belt1100H 420DL5SANSUMG(JAPAN)
19Frequency converterVFD007M21A-A1DELTA(TAIWAN)
20Switch voltageS-35-241(TAIWAN)
21DC electrical sourceCHHE-A/D1ZHONGHE(SHANGHAI)
22Intermediate relayJQX-10F1ZHENGTAI
23Leakage protectorDZ47LE1DELIXI



Competitive Advantage:

1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
