High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure
Specifications
Place of Origin :
China,JiangSu,Zhangjiagang
Brand Name :
FillPack
Certification :
CE, ISO
Model Number :
BCGF24-24-8
Automatic grade :
Automatic with PLC touch screen
Power :
3.5 kw
Driven type :
Electric
Gurantee time :
1 year
Condition :
New
Voltage :
Customised or 380V, 50HZ, 3Phase
MOQ :
1 set/pcs
Price :
Negotiation
Packaging Details :
Blanket cloth or wooden case as machine need
Delivery Time :
25-30 days
Payment Terms :
30% T/T deposit, 70% before shipment
Supply Ability :
30 sets/month
Description

High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure

Quick Detail:

1. Material: SUS304

2. High speed, stable filling state

3. 4000-5000B/H

4. Glass bottle - crown cap

Description:

It's used to filling beer in glass bottle - crown cap, with bottle washing, filling, sealing machine.

Widely used in every beer factory, beer production line.

Bottle washing part:

Spring cramps are used in the bottle washing process.

The empty bottles can be turned over 180~ along the conveying rail.

There are two times of internal and external washing, the efficiency of bottle washing is high.

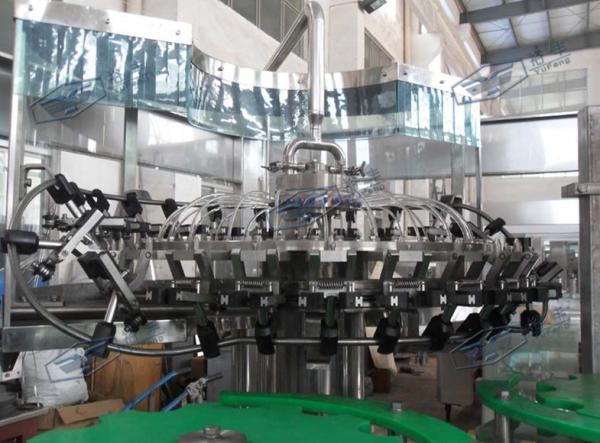

Bottle filling part:

The beer filling machine is designed with advanced technology.

The high quality of NanQing beer filling valve is adopted for filling the beer, with fast filling speed,

high filling precision, stable filling function, long life span to guarantee the quality.

The amount of liquid is accurately controlled and the dropping and leakage are avoided.

Bottle sealing part:

The crown cap pressing system is used for crown cap sealing. It is with automatic cap sorter,

cap loader, and cap sealing pressing head.

This set machine is not set with automatic cap lifter, manual put the caps into the cap sorter, then machine will sort it automatically.

Specifications:

Model BCGF24-24-8
Production Capacity 4000-5000b/h (500ml)
Filling head 24
Work principle Balanced pressure
Filling valve Special beer filling valve
Automatic type Automatic
Material SUS304
Bottle standard Glass bottle - crown cap
Applicable bottle diameter 40 -100mm
Applicable bottle height 120 -320mm
Standard PLC touch screen
Power 3.5 kw
Overall Dimensions 2700×2000×2400 mm
Weight 4000kg

High Speed Beer Filling Machine Glass Bottle Filler Equipment , Balanced Pressure

please kindly click the play button to watch the video
