Specifications
Place of Origin :
China,JiangSu,Zhangjiagang
Brand Name :
FillPack
Certification :
CE,ISO
Model Number :
YDGF18-4
Filling heads :
18
Sealing heads :
4
Filling material :
Carbonated drink
Applicable can :
Aluminum can or PET can
Automatic control :
PLC touch screen
Machine type :
2 in 1 filling and sealing machine
Power :
5.5KW
Driven type :
Electric
Guarantee time :
CE, ISO
Condition :
New
Voltage :
380V, 3PHASE, 50HZ
After service :
Engineer available to overseas
MOQ :
1 set/pcs
Price :
Negotiation
Packaging Details :
Blanket cloth or wooden case as machine need
Delivery Time :
20-25 days
Payment Terms :
30% T/T deposit, 70% before shipment.
Supply Ability :
50 sets/month
Description

Automatic 2 in 1 Can Filling Line Carbonated Drink Can Filler And Sealer Machine


Quick Detail:

1. Capacity: 5000 Cans/H
2. Filling pressure: Balanced pressure
3. Can filling and sealing 2 in 1 machine, with 18 filling heads and 4 sealing heads
4. Main material: SUS304
5. Automatic with PLC touch screen, speed adjustable
6. For carbonated drink in PET can or aluminum can

Description:

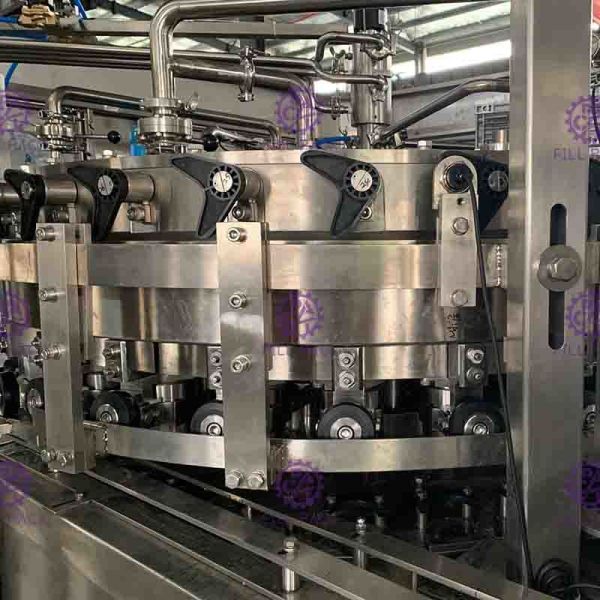

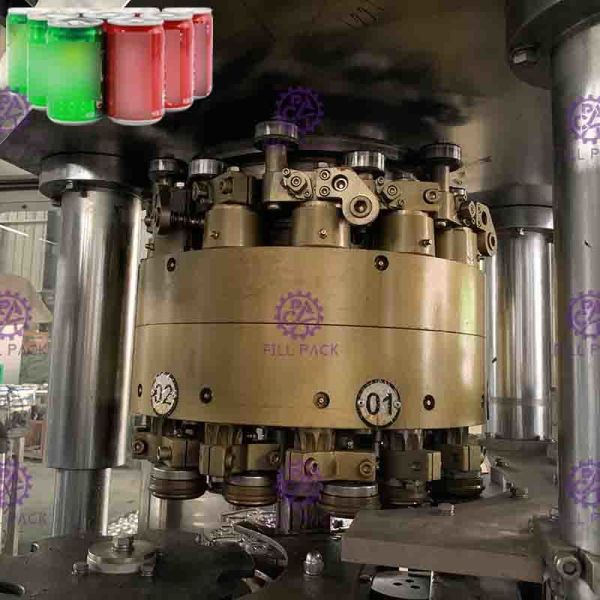

The can filling line is used in production of carbonated drink of soft water, coca cola, carbonated drink, beer in aluminum can or PET can. Filling and sealing parts are integrated in one machine.

The machine is suitable for different can volume, with same can diameter different can height, no can change parts.

The most advanced technology is employed in the design. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

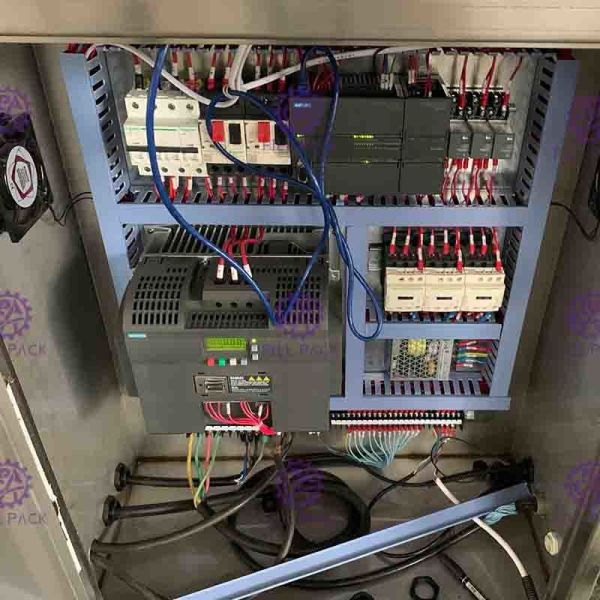

The whole machine is controlled by PLC with touch-screen as the human-machine interface, operation automatically, the speed is adjustable. The amount of the drinks in the storage tank can be controlled automatically. The filling and seaming will be stopped automatically when there is no can. When cans are cramped wrongly or when cans are not available, the machine can be stopped automatically.

The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

Specifications:

Model YDGF18-4
Capacity 5000 cans/hour(500ml)
Filling head 18
Seaming head 4
Filling pressure Balanced pressure
Filling valve High quality special beer filling valve
Material SUS304
Can type Aluminum can
Can size 330ml,500ml with same can diameter
Conveyor Include 2m can feeding conveyor and 4m can outlet conveyor
Filling precision ＜+5MM
Air pressure 0.5Mpa
Air consumption 0.5m3/min
Power 5.5 kw
Dimension(L*W*H) 2000*1800*1900 mm
Weight 3000 kg
