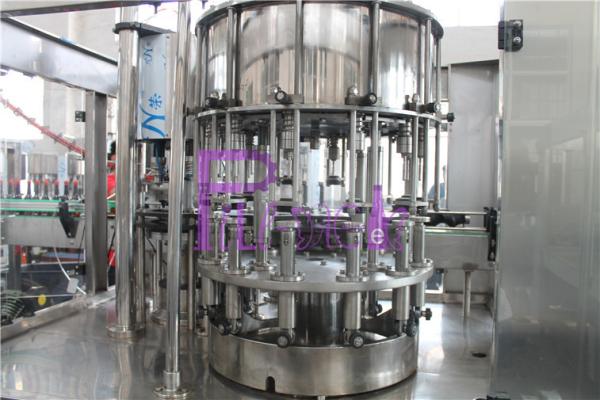

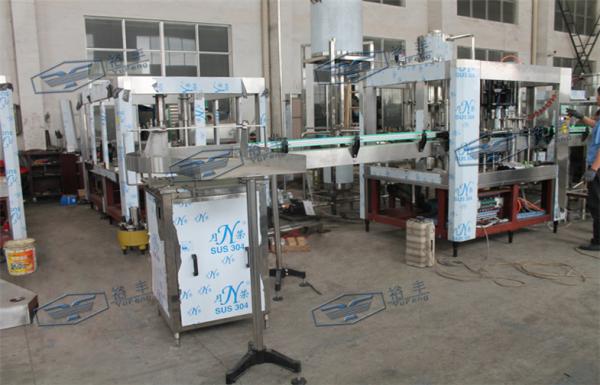

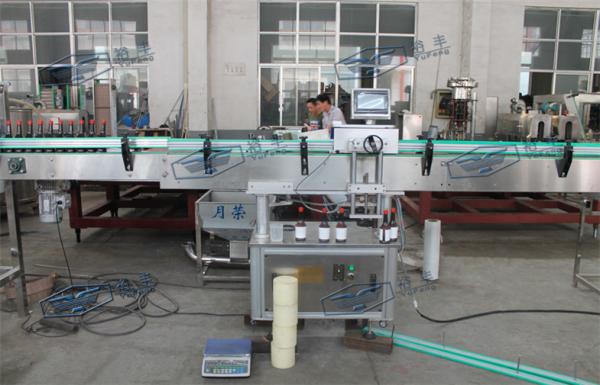

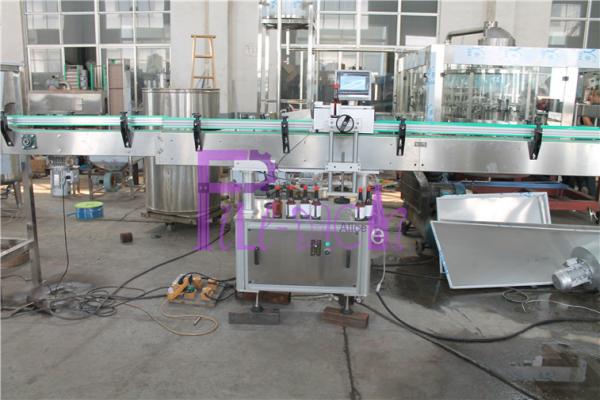

Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Pneumatic Capping Type Bottled Water Filling Machine With Adhesive Labeling Machine
Specifications
Brand Name :
FillPack
Model Number :
WFGF12-4
Certification :
CE / ISO9001 - 2008
Place of Origin :
Zhangjiagang, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T,
Supply Ability :
20Sets Per Months
Delivery Time :
25 Working Days After Deposit
Packaging Details :
wooden case package
Production capacity :
3000BPH
Filling pressure :
tiny negative pressure
Capping type :
vacuum capping
Suitable bottle :
PET bottle
Materail :
SUS316L
Motor driving :
electric
Description

PLC control pneumatic capping type soy sauce line with adhesive labeling machine

Quick details

Model WFGF12-4
Filling heads-capping heads 12-4
Production capacity 2500-3000BPH
Filling material Soy sauce, vinegar, alcohol, wine,etc.
Suitable bottle PET bottle with pull-cap

Main description

1. Soy sauce line adopts advanced technology. And advanced pneumatic components, which guarantees stable performance.

2. Soy sauce line Use man-machine interface, PLC intelligent control system.

3. Soy sauce line is suitable for different viscosity liquid, paste and cream products etc.

4. Soy sauce line Adopts international advanced pneumatic filling valve which guarantee anti-leaking in the process of bottling.

5. Optimal Components including: Effective anti-leaking filling head, raising and falling system used for high foam products, bottle mouth positioning system, filling head quantity can be added as customer request.

components

PLC / transducer / touch screen : Mitsubishi

Contactor / air switch / stabilized voltage supply : Schneider

Photoelectricity / Proximity switch : Autonics

Cylinder: Airtack

Motor: AB motor

Pump : Nanfang pump
