Specifications
Brand Name :
FillPack
Model Number :
CGF12-12-4
Certification :
CE / ISO9001 - 2008
Place of Origin :
Zhangjiagang, China
MOQ :
1 set
Price :
20000-40000USD
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
30 Working Days After Deposit
Packaging Details :
Wooden Case Package
Capacity :
3000bph
Fuction :
washing filling capping 3 in 1
Suitable Bottle Size :
0.3-2L PET Bottle
Automation :
Automatic
Filling Accuracy :
1%(liquid Level)
Dimension(L*W*H) :
2100*1750*2100mm
Description

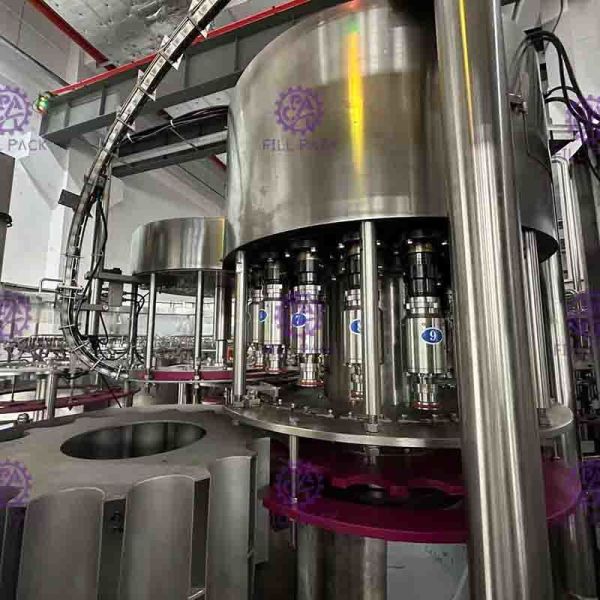

Decription of CGF12-12-4 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle

Machine Part
Name: Washing system
Brand: SAILING
Speed: 2000-30000 bottles/hour
Spring cramps are used in the bottle washing process. The empty botles can be turned over 180~ along the conveying rail. There are two times of intermal and external washing, the efficiency of bottle washing is high.

Name: Filling system
Brand: SAILING
Speed: 2000-30000 bottles/hour
Adopt normal pressure flling method. The amount of the drinks in the storage tank can be controlled automatically.
The fling will be stopped automatically when there is no bottle.

Name: Capping system
Brand: SAILING
Speed: 2000-30000 bottles/hour
The capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

Electric Part & Safe Device & Automation:
When accident system automatic stop & alarm
Emergency switch when accident
Famous Mitsubishi brand PLC, Touch-screen Control Panel & inverter
Famous Omron brand sensor & other electric parts adopted, heavy duty running
Food Grade 304 stainless steel rinsing pump, reliable & sanitary
Machine Base & Machine Construction:
304 stainless steel frame
Tempering Glass window, Clear & no odor
Excellent start wheel design, easy change over parts
Machine Base with anti-rust process, ensure the forever antirus
All seal where liquid may Leakage & base neck come with rubber, water proof

Parameter
ModelCGF12-12-4
Capacity(B/H)4000
Bottle sizeNeck :φ50-100mm:Height:150-320mm
Water pressure0.18-0.25Mpa
Water consumption(kg/h)1000
Washing station18
Loading-Dripping-discharge station2-2-2
Filling precision<+1MM
Air pressure0.5Mpa
Air consumption (m³/min)0.3
Power(kw)5
Weight(kg)4000
Dimension(L*W*H)(mm)2100*1750*2100 mm

Electrical apparatus
TransducerSimens-Germany
Touch screenSimens-Germany
PLCSimens-Germany
Stabilized voltage supplyMingWei-TaiWan
ContactorSchnider-French
Approach switchSchnider-French
Air switchSchnider-French

Optional RO water treatment machines in the water filling line
Model
Capacity(liter per hour)
RO-1000
1000LPH
RO-3000
3000LPH
RO-5000
5000LPH
RO-6000
6000LPH
RO-10000
10000LPH
Optional Washing-filling-capping machines in the filling line(3-in-1 and Linear type)
3in1(0-2L bottle)
Capacity(bottle per hour)
3in1(3-10L bottle)
Capacity
Linear type(3-10L bottle)
Capacity
CGF8-8-3
2000-3000BPH
CGF8-8-3B
0-1000
CGF4-4-1
500BPH
CGF12-12-4
3000-4000BPH
CGF12-12-4B
0-1500
CGF6-61
750BPH
CGF18-18-6
6000-7000BPH
CGF18-18-6B
0-2500
CGF8-8-1
1000BPH
CGF24-24-8
11000-12000BPH
CGF24-24-8B
0-3500
CGF10-10-1
1500BPH
CGF32-32-10
14000-15000BPH
CGF32-32-10B
0-5000
CGF12-12-1
2000BPH
CGF40-40-10
19000-20000BPH
CGF50-50-12
23000-24000BPH
More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
