Specifications
Brand Name :
Fill Pack
Model Number :
T-751
Certification :
CE,ISO
Place of Origin :
ZhangJiaGang,JiangSu,China
MOQ :
1 set
Price :
USD$3500-5500/set for glass bottle labeling machine
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
15 sets/month
Delivery Time :
5 - 15days
Packaging Details :
sea worthy packing
Applicable product :
Width≥20mm，length≥20mm，20≤height≤350mm
Dimension :
1600*1200*1500mm
Power :
2kw
Weight :
195Kg
Description

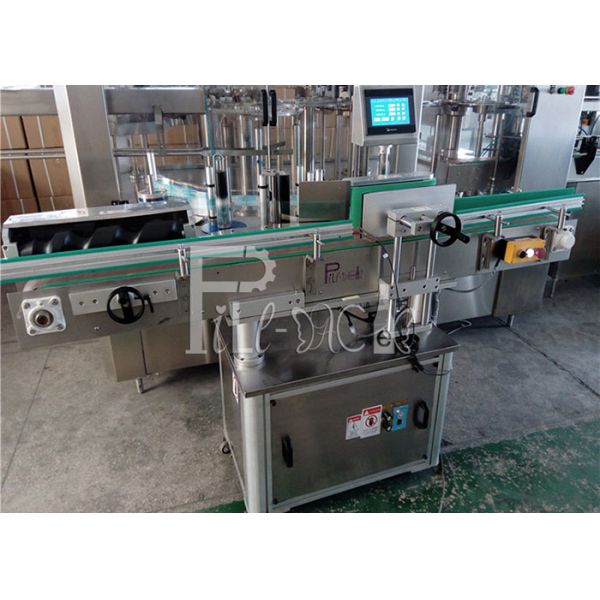

Description of Round bottle Single side adhesive labeling machine
>>>Functional characteristics:
★ Adopting a rigid plastic double sided synchronous oriented chain, automatically guarantee the bottle in center, low requirement on workers ' correct putting position, greatly reducing the difficulties of the workers ' jobs for lining and docking. The machine can work separately or work on assembly line.
★ Configuration of the flick-pressure top control mechanism, ensure the transmission of products smoothly and effectively, eliminate the error of bottle height itself.
★ Configure automatic bottle separating device, sparing the distance automatically before bottle guiding, guarantee the stability of the bottle guiding, transmission and labeling.
★ Configure 2 label pressing device , first ensure labeling accuracy, second applying roller system, effectively eliminate air bubbles and guarantee label sides close with bottles tightly.
★ No bottle no labeling, automatic correction for no tag and automatic test function for label, and avoid waste of labels and labeling missing.
★ Strong and healthy, made of stainless steel and high quality alloy, meet the standard with GMP production specifications, reasonable structure, elegant
One / Single Head Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit
>>>Basic using:
＊ Core work principle: When sensor detects the products through, it returns the signal to the label control systems, then control system controls control motor to send out the labels and affixed on the product in the right position. Products flow through the label pressing device, label is covered on the products, then completes the labeling action.

＊ Operation procedure: Put the product (on line)-> product delivery (device achieves automatically)-> labeling (device achieves automatically)-> collection of labeling products.

No
Item
Parameter
1
Applicable Label width
15≤width≤150mm,length≥10mm
2
Applicable Product size (for round bottle):
Width≥20mm,length≥20mm,20≤height≤350mm
3
Labeling accuracy (mm)
±1mm (Do not contain the tolerance of product and label itself)
4
Labeling speed (pcs / min)
40～180 b/min(Associated with the product)
5
Weight (kg)
195Kg
6
Voltage
220V 50/60HZ
7
Device dimensions (mm) (L × W × H)
1600×1200×1500mm
If you need shrink sleeve labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
