Specifications
Brand Name :
FillPack
Model Number :
DCGF12-12-4
Certification :
CE & ISO & TUV & SGS
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set
Price :
20000-50000USD
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
30 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package
Dimension(L*W*H) :
2250*1650*2250mm
Automatic Grade :
Automatic
Weight :
2500KG
Power :
4.4KW
Warranty :
1 Year for Spare Parts
Capacity :
2000-3000BPH
Description
Description of Plastic bottle carbonated drink filling line DCGF12-12-4

Assuring You of Our Best Machines
We are committed to provide you with the exceptional carbonated filling line and helping you attain your requirements.

Please feel free to contact us for more information of interest.

>>>Overview of Production Line:
This scheme is conventional configuration, with reasonable design, stable operation, product quality to meet the requirements, and has been applied and tested in a number of similar projects. Based on the principle of reliable operation and reasonable economy of the system, relevant design standards and norms are adopted and compiled in combination with years of engineering experience of our company.
The plastic bottle carbonated beverage production line consists of three parts:
Material system (distribution and carbon dioxide mixing), filling system, packaging system.
>>>Design basis:
★1. Raw Water Quality Report: Required to be Provided by Users
★2. Beverage technological process: users are required to provide (our company can also provide related beverage formulations)
PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottle Production Machine / Equipment / Plant / System
PET Plastic Glass 3 In 1 Monobloc Gas Drink Beverage Water Wine Bottle Production Machine / Equipment / Plant / System
Optional carbonated drink making machines in the carbonated filling line
Drink carbonator
Output
Mixing precision
Purity of CO2
Dimension
Weigh
Power
QHS-1000
1T
2%
99.9%
1000*900*1900mm
500Kg
1.5Kw
QHS-3000
3T
2%
99.9%
2000*1400*2200mm
1200Kg
5.8Kw
QHS-6000
6T
2%
99.9%
2100*1500*2270mm
1350Kg
6.3Kw
QHS-9000
9T
2%
99.9%
2150*1400*2380mm
1500Kg
6.5Kw
QHS-18000
18T
2%
99.9%
2000*1750*2400mm
1950Kg
7.2Kw
Optional RO water treatment machines in the carbonated filling line
Model
Capacity(liter per hour)
RO-1000
1000LPH
RO-3000
3000LPH
RO-5000
5000LPH
RO-6000
6000LPH
RO-10000
10000LPH
Optional plastic bottle carbonated filling machine in the carbonated filling line
Model
Capacity(bottle per hour)
DCGF12-12-4
1000-2000BPH
DCGF18-18-6
3000-4000BPH
DCGF24-24-8
6000-7000BPH
DCGF32-32-10
8000-10000BPH
DCGF40-40-12
10000-12000BPH
If you need glass bottle carbonated filling line, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.

>>>The whole line including:

Water treatment system

Carbonated drink making part

Drink cooling tank and Drink carbonator

Bottle washing-fiiling capping machine

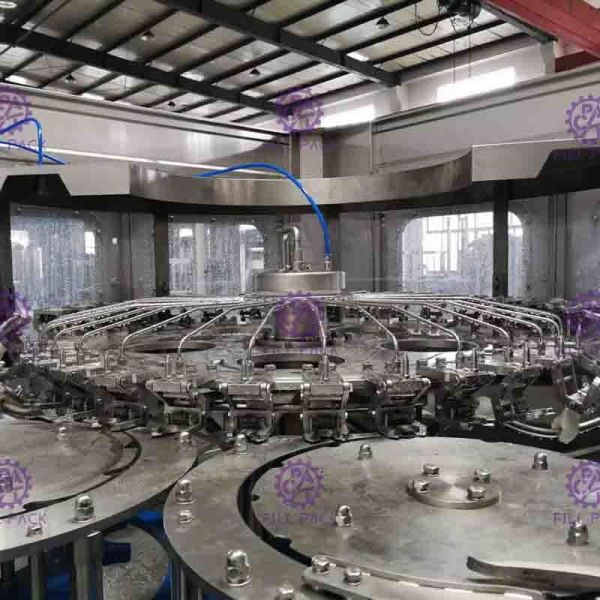

★ Our plastic bottle filling machine uses balanced pressure filling technology.This machine integrates washing, filling and capping parts into a 3-in-1 machine.
★ According to the number of washing head filling head and capping head, the speed of our filling machine have 2000BPH4000BPH6000BPH8000BPH etc. You just need to tell us the speed you need, and we can recommend you the right type machine.

Carbonated drink bottle warmer

Labeling machine

Code printer

Film shrinking packing machine
