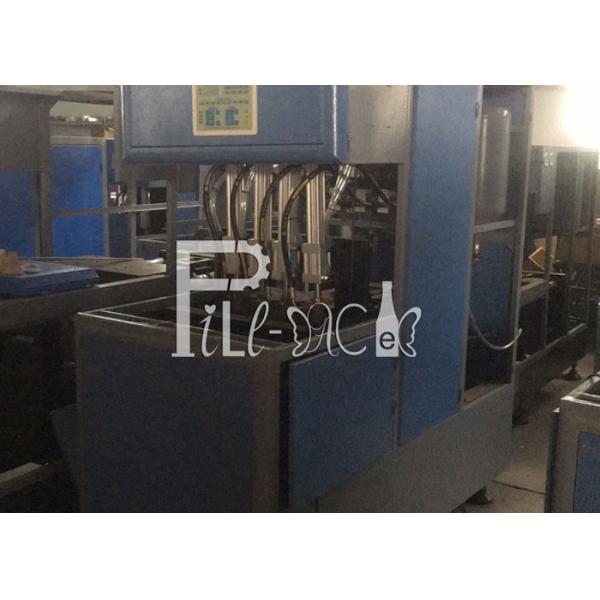

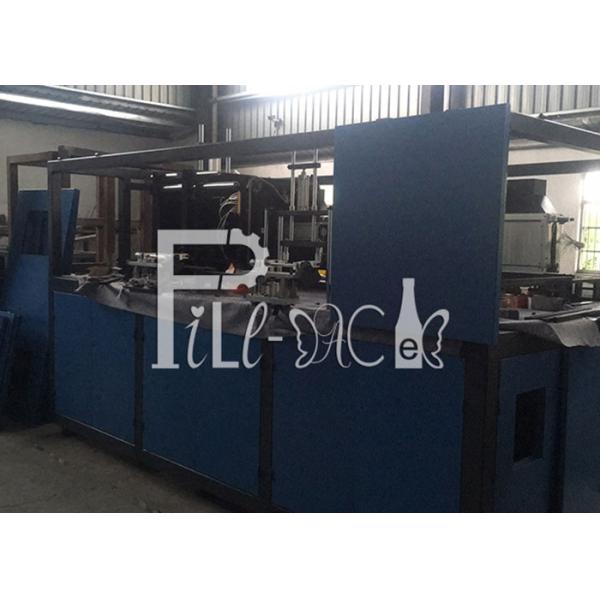

Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Specifications
Brand Name :
FillPack
Model Number :
FP-1000-2
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set/pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
1 set / month
Delivery Time :
35-40 days after deposit receipt
Packaging Details :
Sea worthy package
Max. bottle volume :
10L(100ml to 10000ml)
Output :
2000-2400BPH
Cavitiy :
2 cavities
Dimension :
4263*2150*2200mm
Power :
78kw
Weight :
5550Kg
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 year
Voltage :
380V/220V 3 phase 50HZ / 60HZ / Customized
Blow moulding type :
Stretch blow moulding
Automatic :
Yes
Application :
PET bottle
Condition :
New
Description

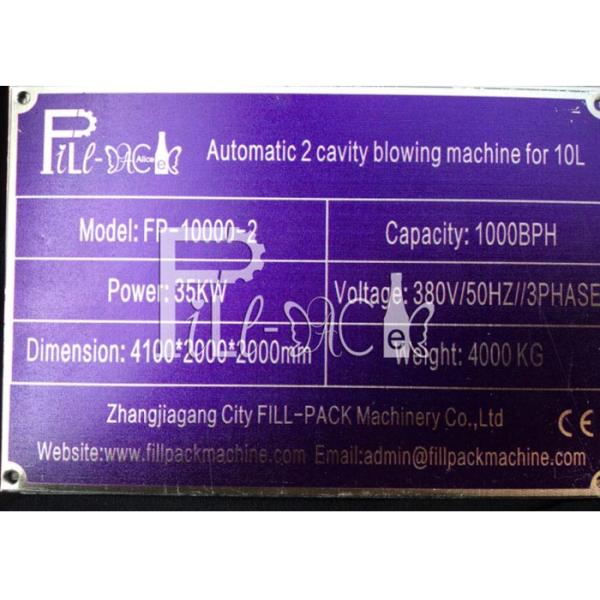

Automatic 2 Cavity PET bottle blow molding machine

>>> Product Introduction:
FP-1000-2 type Automatic blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 10000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles.etc.

>>> Product Features:

1. Adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo;
2, Use infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;
3, Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;
4, Each machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;
5, All the action drive by the cylinder, do not use pumps, with no pollution, low noise;

Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
>>>Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine

1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
2. Bottle Preform If you need, we can also help you find the bottle preform in china.

>>>Technical Paramters:

Molding
Clamping force
kg
/
Blowing machine size
mm
4263*2150*2200
Open stroke
mm
450mm
Mold thickness
mm
200mm-360mm
Canity pitch
mm
/
Number of Cavity
Cavity
2
Container
Max.container volume
Itr
10
Max. neck diameter
mm
65
Max. bottle diameter
mm
220
Max.container height
mm
430mm
Theoretical output
bph
800-1200
Electrical system
Total power
kw
72/78kw
Power voltage
V
380v/3Phase/50HZ
Items
Components
Model
1
Pneumatic components/cylinder
AIRTAC/TAIWAN
2
Flipping cylinder
FESTO/Germany
3
High pressure air blowing valve
PARK/USA
4
Low pressure working valve
PMC/Korea
5
High pressure muffler
ATOMUFFLER/USA
6
oil-water separator/Finger cylinder
AIRTAC/TAIWAN
7
Photoelectric switch
AUTONICS/Korea
8
Power switch/Circuit breaker/Small relay/air switch
SCHNIDER/Germany
10
PLC/TOUCH SCREEN
MITSUBISHI / Japan
