Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
Specifications
Brand Name :
FillPack
Model Number :
FP-6000
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set/pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
1 set / month
Delivery Time :
35-40 days after deposit receipt
Packaging Details :
Sea worthy package
Bottle volume :
250-2000ml
Output :
5500-6000BPH
Cavitiy :
6 cavities
Dimension :
2650mm x 2050mm x 2200mm
Condition :
New
Application :
PET bottle
Automatic :
Yes
Blow moulding type :
Stretch blow moulding
Voltage :
380V/220V 3 phase 50HZ / 60HZ / Customized
Warranty :
1 year
After-sales service provided :
Engineers available to service machinery overseas
Description

Automatic 6 Cavity PET bottle blow molding machine suit

>>> Product Introduction:

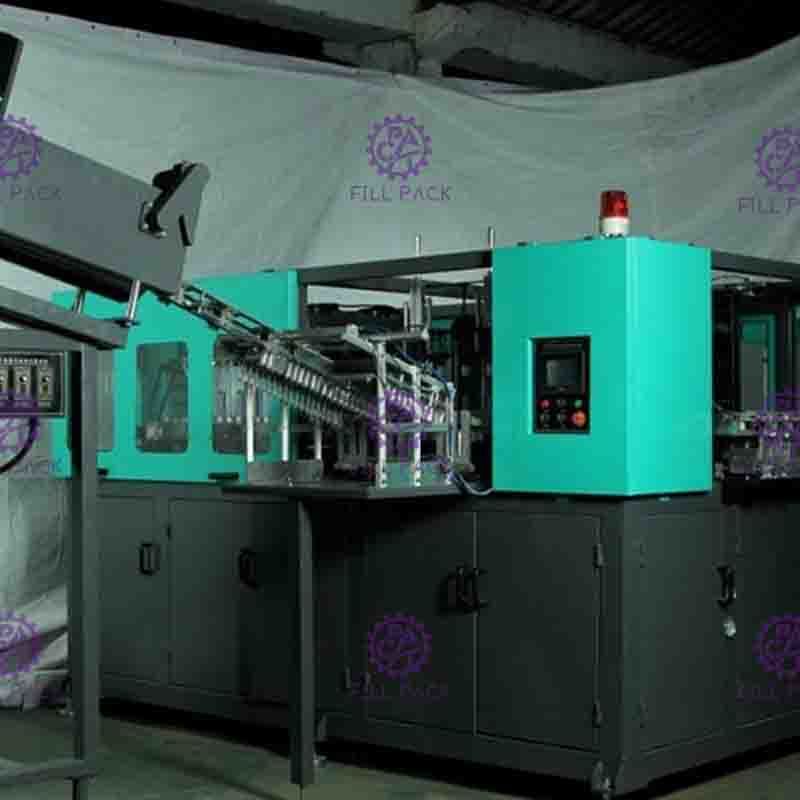

FP-6000 Full automatic blow molding machine is suitable for producing PET/plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

>>> Product Features:

1). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

2). Introduce the FESTO air cylinder to avoid contamination and noise.

3). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

4). Strong clamping force with high pressure and double crank links to lock the mould.

5). Two ways of operating: automatic and manual.

6). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
>>> Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine

>>> Technical Paramters:

Componets:
Part
Brand
Origin
Pneumatic components
AIRTAC
Taiwan
Turning cylinder
FESTO
German
High pressure air blowing valve
PARK
USA
Low pressure operation valve
PMC
Korea
PLC
DELTA
Taiwan
Touch screen
DELTA
Taiwan
High pressure muffler
SMC
Japan
Oily water separator
AIRTAC
Taiwan
Photoelectric switch
AUTONICS
Korea
Switching power
WM
Taiwan
Air switch
TAIAN
Taiwan
Relay
IDEC
Japan
Finger cylinder
MINDMAN
Taiwan
Note
All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
Main parameter:
Model
FP-6000
Productivity
Depend on bottle design
5000-5500 PCS/H
Product type
Body diameter
20mm-100mm
Height
50mm-350mm
Neck diameter
15mm-38mm
Mold
Cavity
6 cavities
Mold thick
200mm
Mold
800*800mm
Main machine power
Electrical source power
380v 3Phase /220v 3Phase
50/60HZ
Rated Power
40kw
Really use power
20kw
Cooling water
Cooling water
20L/min
Size
L*W*H
2808*1958*1920mm
Weight
4500kg
Auxiliary equipment(preform unscrambler)
L*W*H
2000*950*2480mm
Weight
250kg
Resin available
PET

Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System

Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Making Machine / Equipment / Line / Plant / System
