Specifications
Brand Name :
FillPack
Model Number :
FP-120
Certification :
CE. ISO9001
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set/pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
1 set / month
Delivery Time :
35-40 days after deposit receipt
Packaging Details :
Sea worthy package
bottle volume :
5 gallon10L-20L(3-5Gallon)
Output :
120BPH
Cavitiy :
6 cavities
Outer Preform heater :
2670*680*1650mm
Power :
40kw
Weight :
1880Kg
Dimension :
2350*750*1900mm
Inner preform heater :
400*350*1200mm
Condition :
New
Application :
PET bottle
Automatic :
Semi-auto
Blow moulding type :
Stretch blow moulding
Voltage :
380V/220V 3 phase 50HZ / 60HZ / Customized
Warranty :
1 year
After-sales service provided :
Engineers available to service machinery overseas
Description

1 cavity semi-auto blow molding system for 5gallon

>>> Product Introduction:

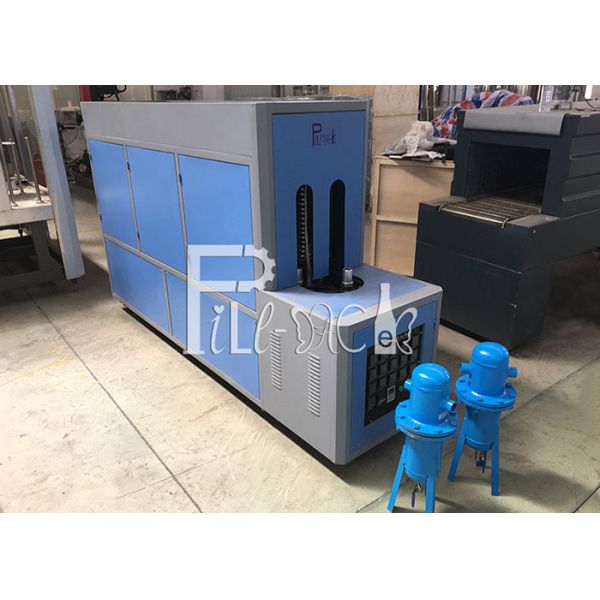

FP-120 Bottle Blowing Machine Manufacturer with one cavity is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.

>>> Product Features:

● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person.
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.

Semi Auto Mineral Water Stretch Bottle Blow Moulding / Molder / Molding Machine / Equipment / Line / Plant / System
>>> Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine
1. PET Bottle Mold Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.
2. Preform & Cap Molds We also can provide you with preform mold and cap mold according to your demand.

>>>Technical Paramters:

Container
Product material
PET
Volume
10L-20L(3-5Gallon)
Output
150PCS/H
Max bottle length
430mm
Max bottle diameter
300mm
Moulding
Stretching stroke
450mm
Clamping force
6000kg
Mould opening stroke
360mm
Machine size and weight
Main machine
2350*750*1900mm/1500Kg
Heater
2670*680*1650mm/380Kg
Power
40kw
Semi Auto Mineral Water Stretch Bottle Blow Moulding / Molder / Molding Machine / Equipment / Line / Plant / System
Semi Auto Mineral Water Stretch Bottle Blow Moulding / Molder / Molding Machine / Equipment / Line / Plant / System
