Specifications
Brand Name :
FILLPACK
Model Number :
6000-20000BPH
Certification :
CE/ISO9001
Place of Origin :
Zhangjiagang, China
MOQ :
1 set
Price :
15600USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Months
Delivery Time :
15 Working Days After Deposit
Capacity (for 500ml) : :
6000-20000BPH
Inlet temperature: :
85℃
Outlet temperature: :
40℃
Suggested water zone qty: :
2-3PCS
Main motor power: :
1.5-2.2KW
Cooling tower output: :
80-200T
Steam consumption: :
200-800KG
Steam pressure: :
0.5Mpa
Description

6000-20000BPH Automatic Pasteurizer And Cooling Tunnel Pasteurization Equipment For Juice Hot Filling Machine

Descriptions:

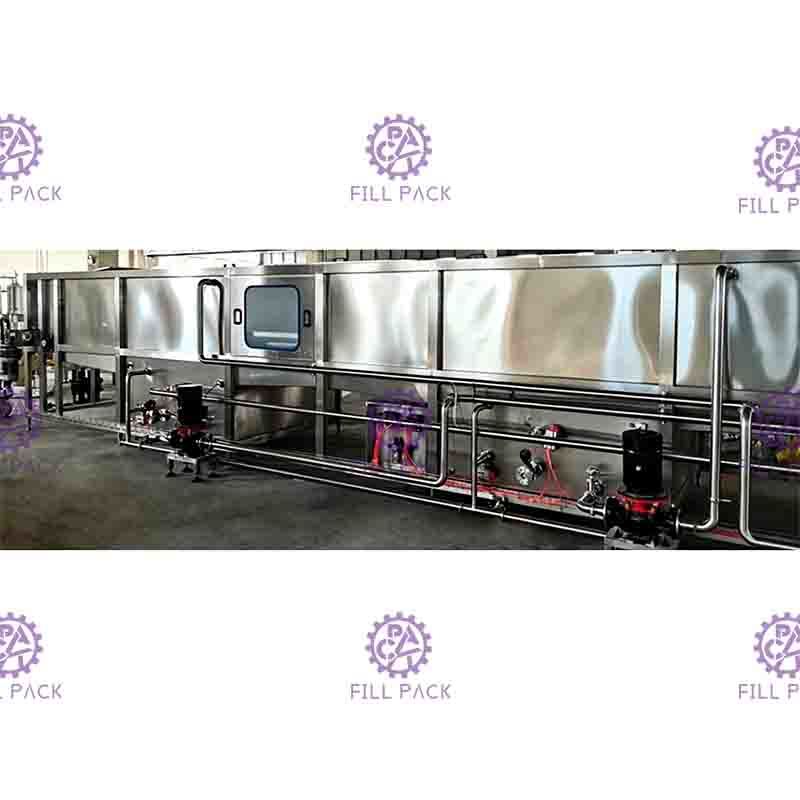

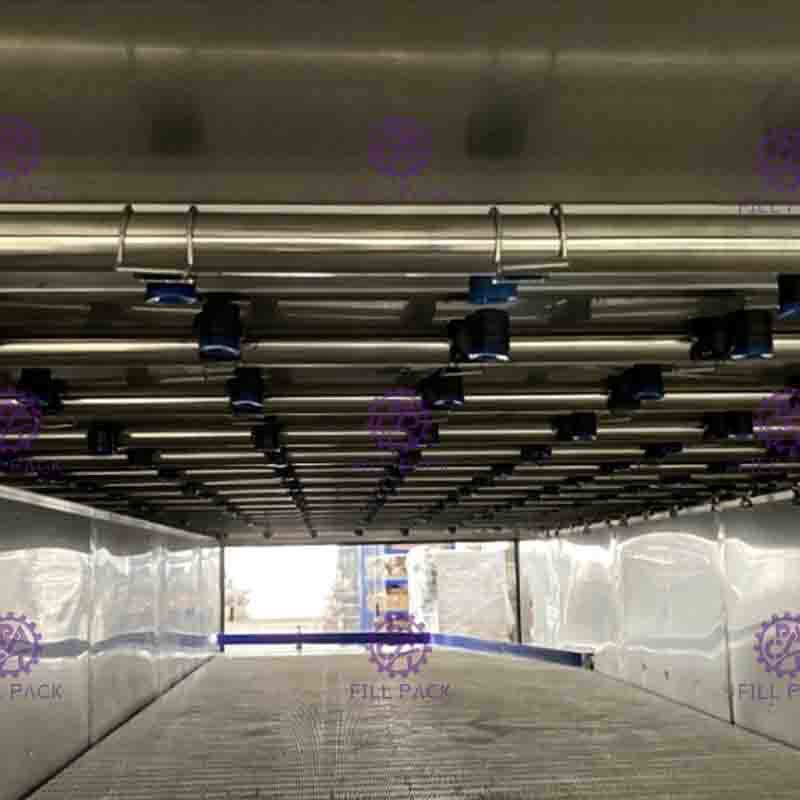

The principle is: Conveyor brings bottles into the cooling tunnel, there will be cooling water generated from side water tanks to spray by spray nozzles on the top of tunnel onto passing bottles. With heat exchange principle, the bottles temperature will be low down to normal room temperature to increase product shelf time.

The water tank temperature zone will be finalized according to capacity request. The pump system will send water in and out.

All body material is high quality SUS304; The transportation is by engineering plastic chain.

The machine can be used for cooling bottle packed hot filling juice.

Advantage:

1, It can be used for various of bottle shapes and volumes;

2, Easy construction for easy maintenance;

3, Speed adjustable;

4, Transparent glass window at entrance and end will make clear of view if any problem happening inside tunnel and open able top will help for easy problem solving;

5, recyclable water system will help for reducing water consumption;

6, engineering plastic chain can be both cold and heat resistant; it can prolong machine life time. Conveyor is by high intensity plastic chain belt, is with high intensity, acid resistant, rot resistant and abrasion resistant.

7, Spray angel can be 360°adjustable; spray to every position of bottles averagely, it will make full use of spray water and it will increase spray area.

Working process:

The workers set the temperature zone,each temperature zone is heated to a preset temperature by steam.

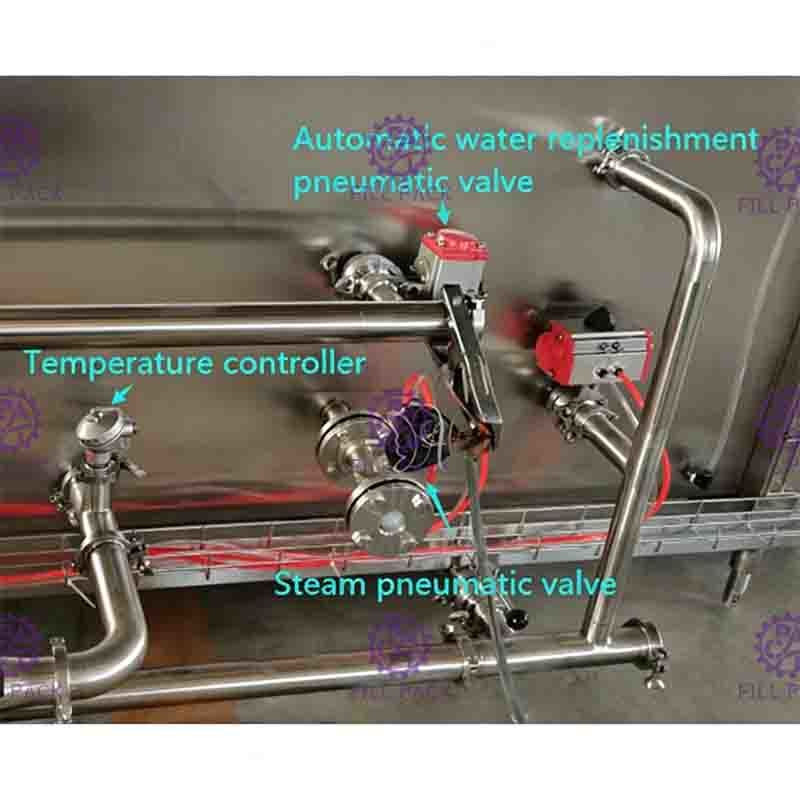

Automatic water replenishment, automatic drainage, automatic cooling water intake via PLC.

Parameter:

Capacity (for 500ml) : 6000BPH 10000BPH 15000BPH 20000BPH
Inlet temperature: 85℃
Outlet temperature: 40℃
Suggested water zone qty: 2pcs 2pcs 3pcs 3pcs
Main motor power: 1.5KW 2.2KW 2.2KW 2.2KW
Pump consumption: 0.75KW 1.1KW 1.5KW 1.5KW
Water tank volume: 3000L * 1pcs 4000L * 1pc 3000L * 3pcs 4000L * 2pcs
Cooling tower output: 80T 100T 150T 200T
Steam consumption: 200KG 320KG 550KG 800KG
Steam pressure: 0.5Mpa
Dimension(mm): 8000*1800*1600 12000*1800*1600 16000*1800*1600 20000*1800*1600
Weight: 1800KG 2300KG 1550KG 9000KG

Detailed pictures:

20000BPH Hot Filling Machine Automatic Pasteurizer Cooling Tunnel Equipment

20000BPH Hot Filling Machine Automatic Pasteurizer Cooling Tunnel Equipment

20000BPH Hot Filling Machine Automatic Pasteurizer Cooling Tunnel Equipment

20000BPH Hot Filling Machine Automatic Pasteurizer Cooling Tunnel Equipment
