Semi-Automatic Desktop 2/4/6/8/10 Nozzles Juice Milk Water Spout Pouch Stand Up Pouch Filling Machine

General:

This semi-automatic filling machine adopts imported Japanese IWAKI pump for material suction, and has a long service life; one pump is used for each filling, and each pump is adjusted separately, so that it is easy to use and adjust, and each pump works without interruption. Each pump uses a separate switch, and a high-precision ten-turn locator is used at the same time, and the adjustment and balance of each filling volume is convenient.Can be equipped with multiple filling heads, commonly used models are: double heads,four heads,4 heads,6 heads,8 heads and 10 heads.The filling amount can be adjusted from 1ml to 500ml; the adjustment is convenient.If the liquid with particles such as the material must be filtered clean before filling, this machine is equipped with a filter screen with filtering function. This stand-up pouch filling machine is suitable for filling liquid soy milk, milk, yogurt, fruit juice, plum juice, beverages, oral liquid, mineral water, soy milk, milk tea and other non-particle, low viscosity liquids. It is not suitable for filling particularly viscous materials.

Main Features:

1. Intelligent filling, precise quantification, high filling accuracy, automatic counting, power-off memory.

2. Each pump can be adjusted separately for easy operation.

3. Using high-precision ten-turn locator, the precision is higher.

4. The positioning of the left and right movement is accurate, and the nozzle is not damaged.

5. It can work when connected to electricity, no need to connect to the air source to reduce noise.

6. The food grade silicone hose is used, which is resistant to high temperature.

7. The frame of the whole machine is made of authentic 304 stainless steel with beautiful appearance.

8. One person operation, filling on the left and capping on the right, saving time and suitable for small batch production.

Parameters:

• Step 1: open the empty spout pouch and arrange it on the table in turn;

• Step 2: Turn on the device and plug in the foot switch; (Please read the precautions before turning on!)

• Step 3: Place the feeding tube in the barrel containing the material, adjust the filling time, interval time, manual/automatic speed, and adjust the manual/automatic gear to the manual position if the foot switch is needed. , the interval is adjusted to zero, if you need to use the automatic file, the manual / automatic file to the automatic file, the interval time is adjusted to the appropriate time;

• Step 4: Step on the foot switch, the material will automatically suck up until the material is discharged. Before the formal filling, the space inside the material tube needs to be drained clean;

• Step 5: During formal filling, the filled liquid can be placed on the electronic scale to weigh the specific weight. If it is not reached, the desired capacity can be passed, the flow adjustment knob under the pump, appropriate fine-tuning capacity;

Details:

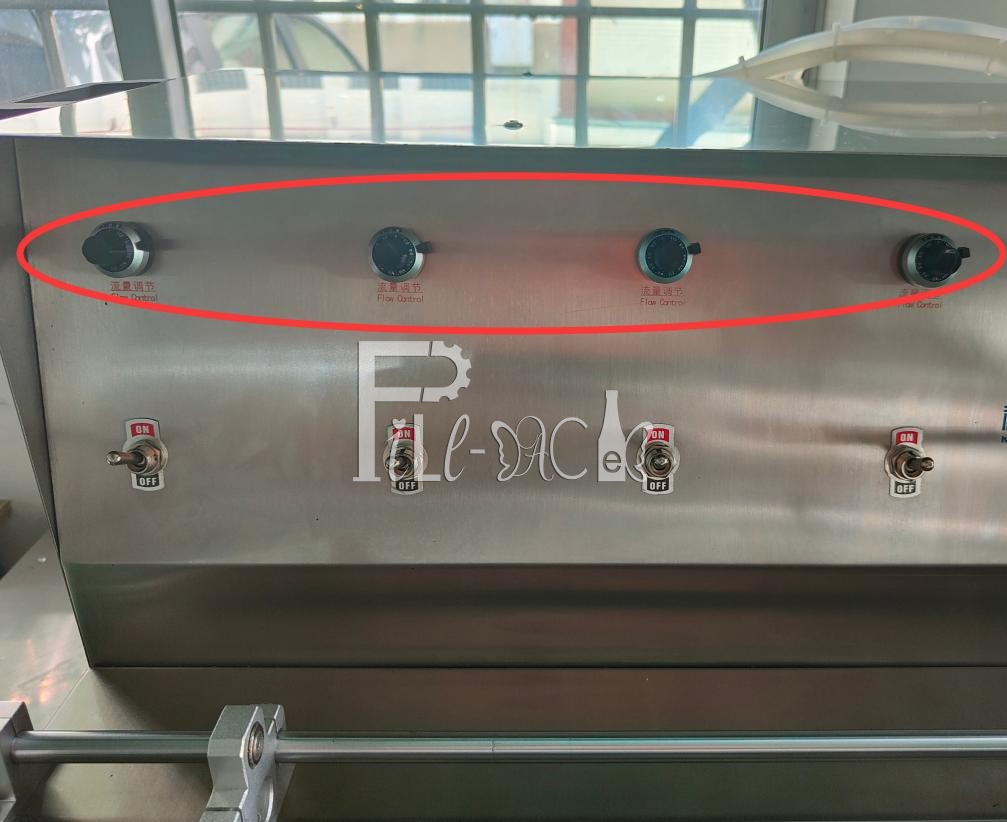

High-precision ten-turn locator

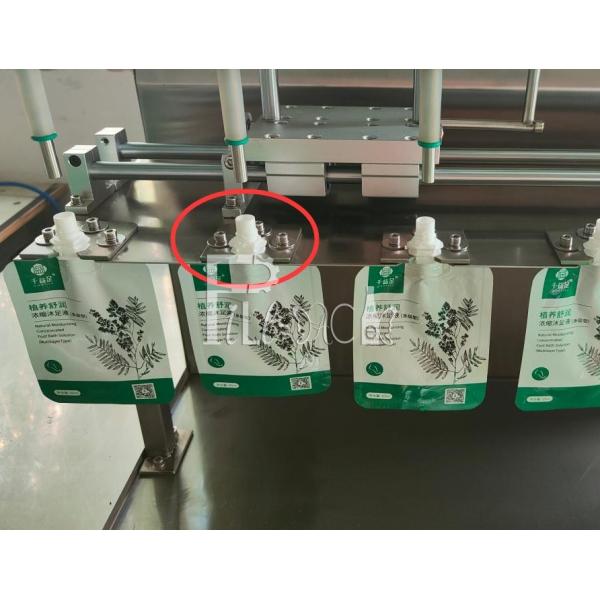

Nozzle card is changeable/adjustable

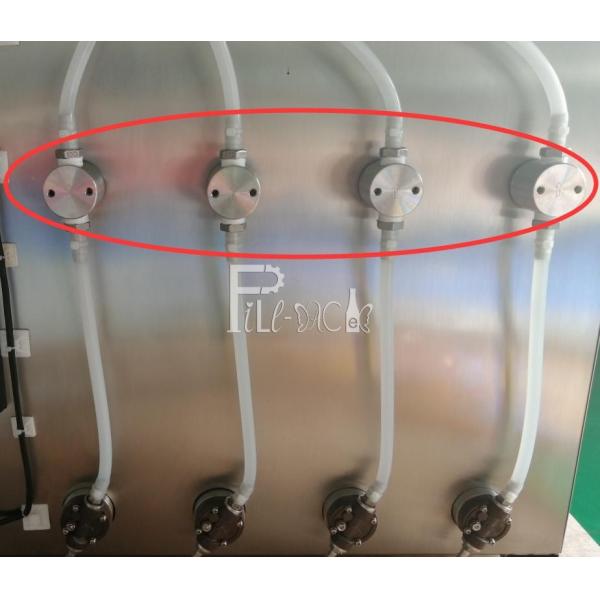

Each pump switch

Adopt high-quality foot switch
