Specifications
Brand Name :
BP MACHINERY
Model Number :
TYBP750
Certification :
CE certification
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiate (more quantity more cheap )
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 sets / month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Application :
Printing and packing area .
Type :
Heat pressing machine
Functions :
Die cutting & hot stamping (bronzing machine)
Core Components: :
Motor, Pump, Other, PLC, Gear, Bearing, Gearbox, Engine
Place of Origin: :
Zhejiang ,China
Condition :
New
Working method :
Semi auto
Key selling points :
Easy operate and stable quality
After-sales Service :
Engineers available to service machinery overseas, Online
Size :
750,930,1040,1100,1200
Warranty :
1 Year ,12months
Description

​Semi Auto Die Cutting and Hot Foil Stamping Machine TYMP750

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area

Hot foil stamping machine belongs to printing and packaging equipment.
They are used for hot stamping all kinds of colored aluminum foil and embossing or die cutting different kinds of pictures, clothing ticketing, greeting cards, trade mark, books cover, note book, packaging cartons, paper boxes, paper bags, Cork pad, folders, and other high grade decoration and printing materials, etc. The suitable product materials are including paper, cardboard, plastic (PVC,PP,PE), leather, wood and cork, etc.,So that they are necessary equipment for printing factory, packaging enterprise and Office stationery manufacturer.

Technical data :

Product Paramenters
Model
TYMB750
TYMB930
TYMB1040
TYMB1100
TYMB1200
Max. Area Available
750*520mm
930*670mm
1040*720mm
1100*800mm
1200*820mm
Max. Stamping Area
665*460mm
920*665mm
1020*700mm
1000*750mm
1180*800mm
Skip Range
1-500mm
1-665mm
1-700mm
1-750mm
1-800mm
Foil-Delivered Length
1-500mm
1-665mm
1-700mm
1-750mm
1-800mm
Foil-Feeding Precision
1mm
Foil-Delivered Groups
2
3
3
3
3
Skip Frequency
1-99times
Working Speed
25±2times/min
22±2times/min
21±2times/min
20±2times/min
20±2times/min
Working Pressure
150T
170T
190T
220T
250T
Temperature Range
1-170℃
Electric Power
7kw
12kw
12kw
13.8kw
15kw
Main Motor Power
2.2kw-6H
4kw-4H
4kw-4H
4kw-4H
5.5kw-6H
Net Weight
1800kg
3200kg
3800kg
5000kg
5500kg
Gross Weight
2000kg
3400kg
4000kg
5200kg
5800kg
Dimension
1900*1450*1950mm
1800*1900*2150mm
2100*2100*2300mm
2200*2000*2000mm
2300*2040*2060mm
Voltage
220/380/415V

Main structure characteristics:

  • Equipped with imported PLC and servo motor.

  • Main body was made of HT250 high strength cast iron, it has high strength.

  • Single disk electromagnetic clutch is sensitive and reliable.

  • The electrical system is designed according IEC standard.

  • The operation height is reasonably designed, the open angle of the pressing plate is big.

  • It has the function of single cutting, continuously cutting. The time delay of the pressing plate can be adjusted.

  • The torque of the gear is great, the pressing pressure is great.

Application :

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area

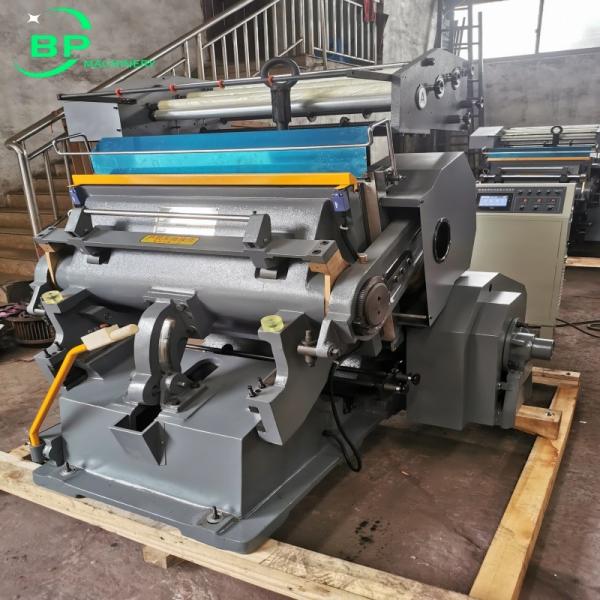

Machine picture:

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area
