2RB Air Ring Pump Vacuum Pump High Pressure Blower Side Channel Blower

♦Product Description:

*Introduction:

Founded in 2004, we are specialized in making air fluid equipments (compressors and vacuum pumps). With more than ten years’ development, we have become a professional manufacturer who is mainly committed to producing side channel blowers plus other kinds of air fluid equipments (vacuum pumps and compressors), forming the complete structure merging with R&D, production, sales and services. We have become the leading manufacturer in the world in the industry of side channel blowers.

*Operating principle:

The ompellers in the RB series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Max operational reliability, even at high differential pressure is ensured by the arrangement of the bearings outside the compression chamber.

The gas it taken in through the inlet 1, as it enters the side channel 2, the rotating impeller 3 imparts velocity to the gas in the direction of rotation. Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase. Everyrotation adds kinetic energy, resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and ids-charging it through the outlet silencer 4 where it exits the dide channel blower.

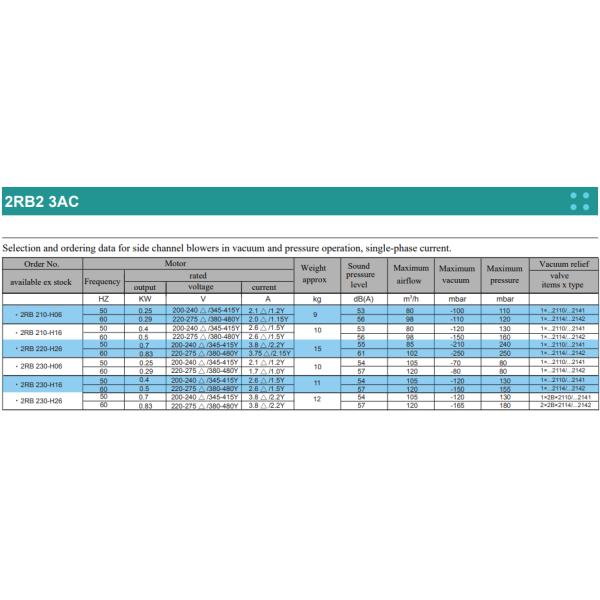

*Selection and ordering data for Side channel blowers in vaccum and pressure operation:

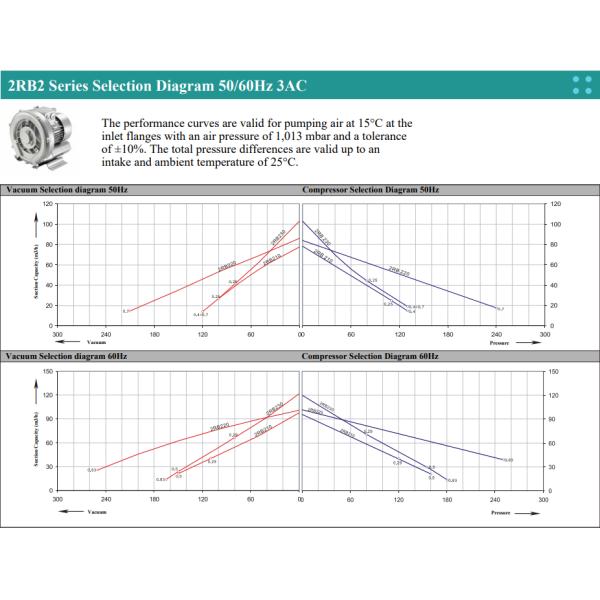

*2RB2 Series Selection diagram 50/60Hz 3AC:

*Dimension Drawings:

♦Technical parameter:

♦Applications:

*Aeration of fish ponds *Paper processing
*Aeration of sewage-treatment plants *Packing machines
*Dental suction equipment *Printers/copies
*Food-processing *Soil remediation
*Filling of bags/bottles/hoppers *Sorting/enveloping of letters
*Gas analysis *Swimming pool equipment/whirlpools
*Lifting and holding of parts by vacuum *Textile machines
*Laser printers *Thermoforming
*Pneumatic conveying systems

♦Advantage:

a. Almost completely maintenance free
b. Have a wide range of performance
c. Robust yet light weight
d. Reliability - Built to last
e. 50/60 Hz Voltage range motors
f. Low level of noise
g. Easy installation
h. No vibration, complete dynamic stability
i. Pulsation free discharge
j. Simple and minimal maintenance
k. Higher Pressure Ratios
l. Cooler Running Bearings
m. Longer Grease Life
n. 100% Oil Free Air
o. Suitable to environment protection
p. Small dimensions

♦Contact Us:

Our team

Certificate

Our Logistics

Why choose us

Sticking to the principle of quality for survival and reputatiton for development, our company continuously develops new products and improves their quality.

Hangzhou Suntech Machinery Co., LTD is sincere in cooperation with people from all walks of life to create jointly great success!
