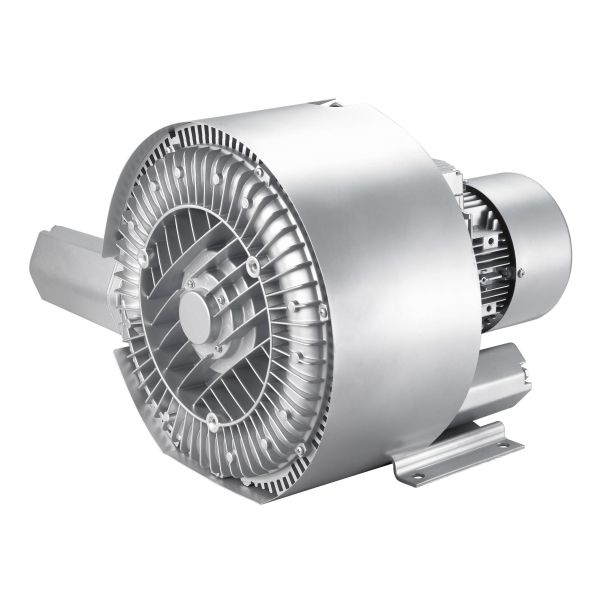

2RB Air Ring Blower Industrial Fan China Factory Supplier Air Pump Side Channel Blower Good Quality

♦Product Description:

The RB series side channel blower feature voltage range motors for 50Hz and 60Hz in protection class IP55(insulation class F) are CE, CCC approved. This makes them the ideal solution for world wide use.

*Operating principle:

The ompellers in the RB series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Max operational reliability, even at high differential pressure is ensured by the arrangement of the bearings outside the compression chamber.

The gas it taken in through the inlet 1, as it enters the side channel 2, the rotating impeller 3 imparts velocity to the gas in the direction of rotation. Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase. Everyrotation adds kinetic energy, resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and ids-charging it through the outlet silencer 4 where it exits the dide channel blower.

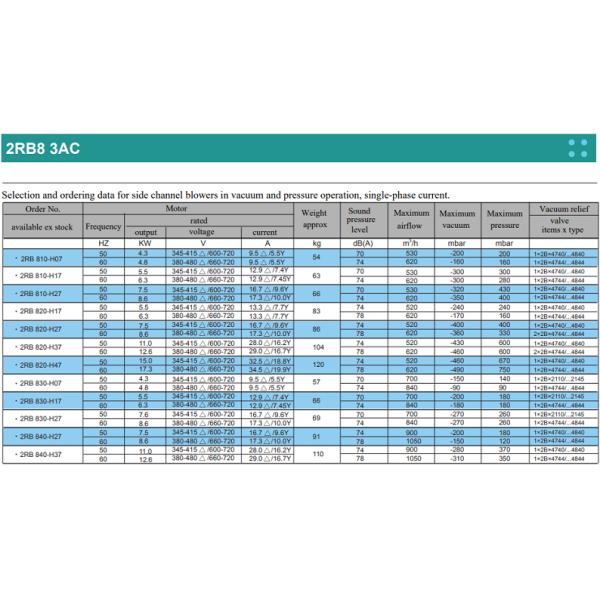

*Selection and ordering data for Side channel blowers in vaccum and pressure operation:

*2RB8 Series Selection diagram 50/60Hz 3AC:

The performance curves are valid for pumping air at 15℃ at the inlet flanges with and air pressure of 1,013mbar and a tolerance of ±10%. The total pressure differance are valid up to an intake and ambient temperature of 25℃.

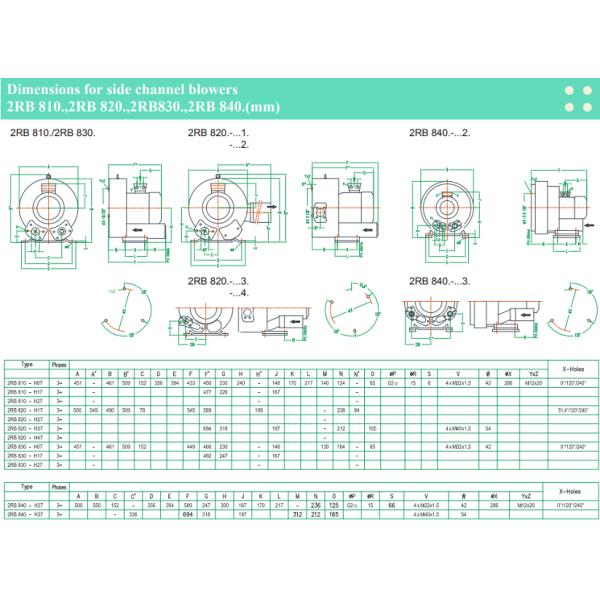

*Dimension drawing:

♦Technical parameter:

♦Applications:

1. Agriculture(Fish pond and aeration tanks)
2. Beverage(bottle drying)
3. Bio fuels/bio-gas system
4. Food and vegetable processing
5. Medical and Health service(Dental cart and dental vacuum)
6. Package (Air knives blown-off / Labeling/Drying)
7. Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
8. Printing
9. Paper and pulp/ paper converting
10. Textile industry
11. Transportation/Loading/Unloading(Pneumatic conveying/material handling)
12. Water treatment/sewage treatment
13. Woodworking(CNC Routing/bulk handling)

♦Advantage:

a. Almost completely maintenance free
b. Have a wide range of performance
c. Robust yet light weight
d. Reliability - Built to last
e. 50/60 Hz Voltage range motors
f. Low level of noise
g. Easy installation
h. No vibration, complete dynamic stability
i. Pulsation free discharge
j. Simple and minimal maintenance
k. Higher Pressure Ratios
l. Cooler Running Bearings
m. Longer Grease Life
n. 100% Oil Free Air
o. Suitable to environment protection
p. Small dimensions

♦Packing&Shipping:

Hangzhou Suntech Machinery Co., LTD is sincere in cooperation with people from all walks of life to create jointly great success!
