2RB High Pressure Side Channel Air Ring Blower Air Pump Industrial Air Fan for Aquafarm

♦Product Description:

*Introduction:

The RB series side channel blower feature voltage range motors for 50Hz and 60Hz in protection class IP55(insulation class F) are CE, CCC approved. This makes them the ideal solution for world wide use. They can be used without any modifications or tests in Europe and Asia. They are mostly availiable ex stock. They are available for your requirements anytime.

With their high inlet volume flow up to 2,500m3/h and a differential pressure up to 780mbar, our low noise 2RB series allrounders have earned their reputation and convinced thousands of customers all over the world. They are reliable, low-maintenance and durable and are the first choice for many applications in mechanical engineering. When used with a frequency converter the performance of 2RB side channel blower can be increased considerablly. The 2RB seriese side channel blowers are CCC/CE approved and can be used without further testing all over the world.

*Operating principle:

The ompellers in the RB series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Max operational reliability, even at high differential pressure is ensured by the arrangement of the bearings outside the compression chamber.

The gas it taken in through the inlet 1, as it enters the side channel 2, the rotating impeller 3 imparts velocity to the gas in the direction of rotation. Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase. Everyrotation adds kinetic energy, resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and ids-charging it through the outlet silencer 4 where it exits the dide channel blower.

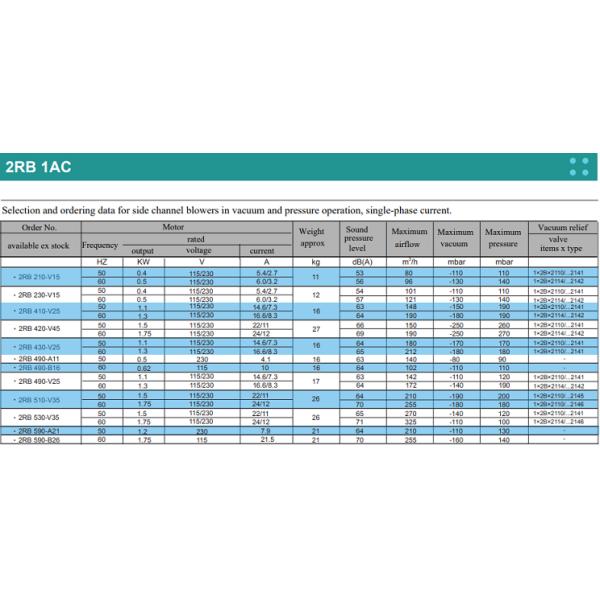

*Selection and ordering data for Side channel blowers in vaccum and pressure operation:

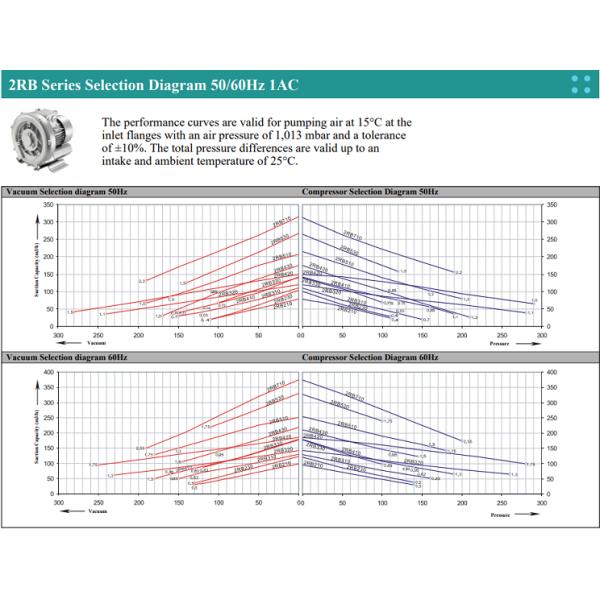

*2RB 1AC Series Selection diagram 50/60Hz:

*Selection and ordering data for Side channel blowers in vaccum and pressure operation:

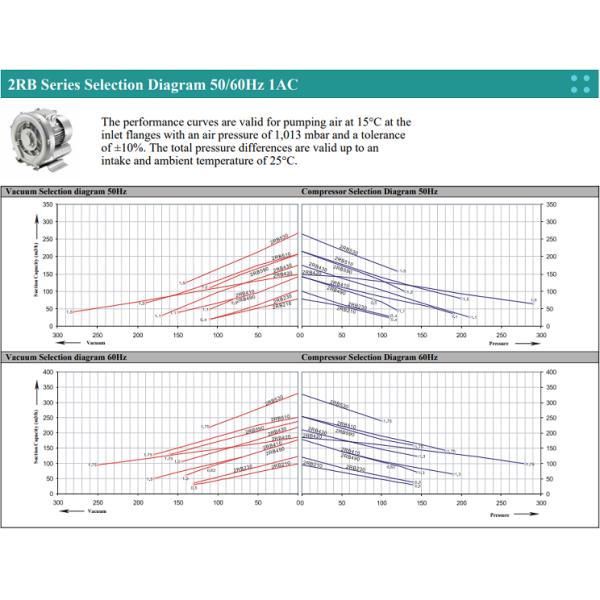

*2RB 1AC Series Selection diagram 50/60Hz:

♦Technical parameter:

♦Applications:

1. Agriculture(Fish pond and aeration tanks)
2. Beverage(bottle drying)
3. Bio fuels/bio-gas system
4. Food and vegetable processing
5. Medical and Health service(Dental cart and dental vacuum)
6. Package (Air knives blown-off / Labeling/Drying)
7. Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
8. Printing
9. Paper and pulp/ paper converting
10. Textile industry
11. Transportation/Loading/Unloading(Pneumatic conveying/material handling)
12. Water treatment/sewage treatment
13. Woodworking(CNC Routing/bulk handling

♦Advantage:

*CE approved, IP54, insulation class F air suction pump

*One year warranty time air suction pump

*Maintenance free air suction pump

*Handles vacuum or pressure applications air suction pump

*Operate quietly air suction pump

*Cooler running outboard bearing Increase service life-24*7, 10000 hours air suction pump

*Ideal alternative to standard rotary

*Oil Free air suction pump

*Compact light weight design air suction pump

*Various applications: air suction pump, vacuum pump for milking machine, air pump for pond, fish farms, water treatment, vacuum conveying, etc.
