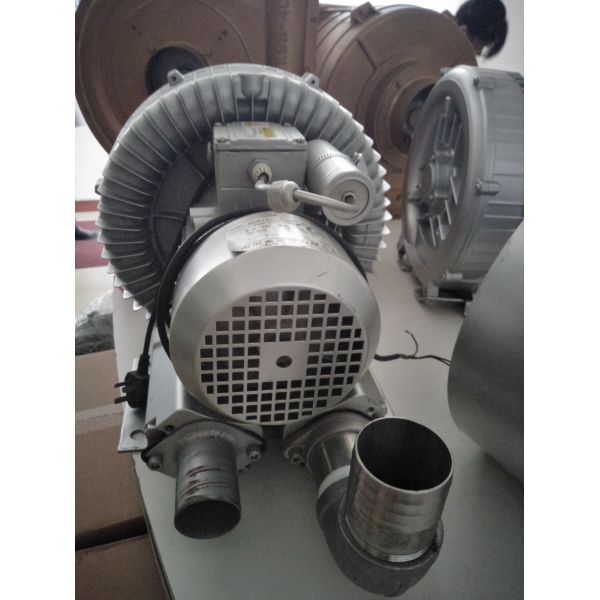

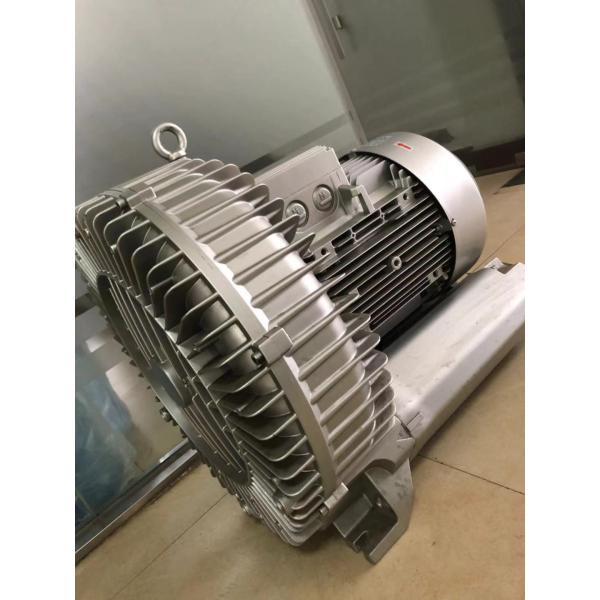

2RB Side Channel High Pressure Air Blower Industrial Fan Vortex Pump Ring Blower

♦Product Description:

*Operating principle:

The ompellers in the RB series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Max operational reliability, even at high differential pressure is ensured by the arrangement of the bearings outside the compression chamber.

The gas it taken in through the inlet 1, as it enters the side channel 2, the rotating impeller 3 imparts velocity to the gas in the direction of rotation. Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase. Everyrotation adds kinetic energy, resulting in the further increase of the pressure along the side channel. The side channel narrow at the rotor, sweeping the gas off the impeller blades and ids-charging it through the outlet silencer 4 where it exits the dide channel blower.

*Selection and ordering data for Side channel blowers in vaccum and pressure operation:

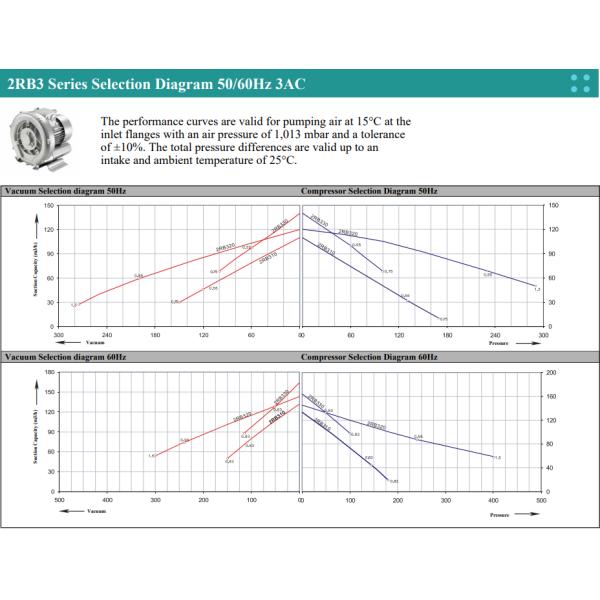

*2RB3 Series Selection diagram 50/60Hz 3AC:

*Dimension Drawings:

♦Technical parameter:

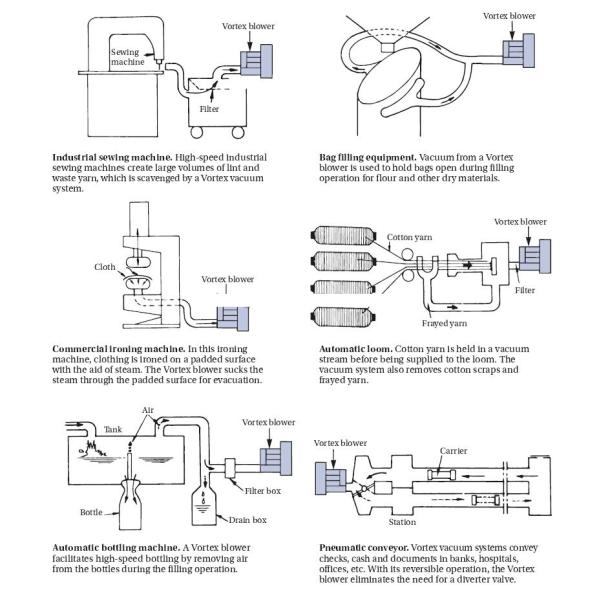

♦Applications:

1. Drying out buildings - Ventilating/drying out buildings after flood

2. Dental vacuum

3. Filling Bags and bottles

4. Filling Silos

5. Fishpond/breeding pond ventilation - Enriching water with oxygen

6. Food processing - Degasification

7. Gas analysis

8.Industrial vacuum cleaners, central extraction systems

9. Lifting and holding parts using vacuum suction

10. Laser printers - Powder dusting and extraction

11. Letter sorting, enveloping

12. Packaging Machines

13. Paper Industry - Sheet separation,turning, transport, fixation and drying

14. Pneumatic Conveying

15. Soil Treatment - Extracting ground level air

16. Swimming pool technology/spas - Blowing air into water tanks

17. Textile machines - Extracting waste thread and fluff

18. Thermoforming

19.Ventilation of sewage treatment plants - Enriching water with oxygen

♦FAQ:
In order to recommend the suitable product to you, please help confirm the following information:

1.The application of the blower.

2.The technical parameter requirement.

3.Order quantity
