Specifications
Brand Name :
SUNTECH
Model Number :
ST
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
10 Sets/Month
Delivery Time :
45 Days
Packaging Details :
We can pack it by pallet, or according to the customers' specific requirements
Diameter :
7-16mm
Length :
70-450mm
Capacity :
20-70pcs/min
Application :
Bolt making, screw making, nail making
After-sales Service Provided :
Online Guidance, Debugging Video, Engineers Available To Service Machinery Overseas
Warranty :
One year
After-sales service provided :
Engineers available to service machinery overseas,Online support,Field installation,commissioning and training,Video technical support
Color :
Customized
Type :
Fully Automatic
Motor power :
15-22kW
Usage :
screw making, drywall nail making, bolt making
Name :
Nail making machine,nail art machine price,nail wire drawing machine,Z94 Series Automatic Nail painting making Machine
Product name :
Heavy duty cheap nail making machine,self drilling screw making machine,automatic Wire Nail Making Machines,high speed automatic roofing concrete screw nail making machine price,high efficiency steel wire nail making machine
Description

1 Die 2 Blow Drywall Nail Making Machine Bolt Forging Machine Cold Heading Machine Screw Making Machine

Products Description

Our company has advanced technology and rich experience, by widely absorbing the advanced technologies of domesctic and overseas, thoroughly taking the processing needs of modern screw industry into consideration, and keeping revising and improving.

Thanks to our adopting the latest processing technology, precise assembly and debugging technology, and strict quality test, our products are of good quality and stable performance.

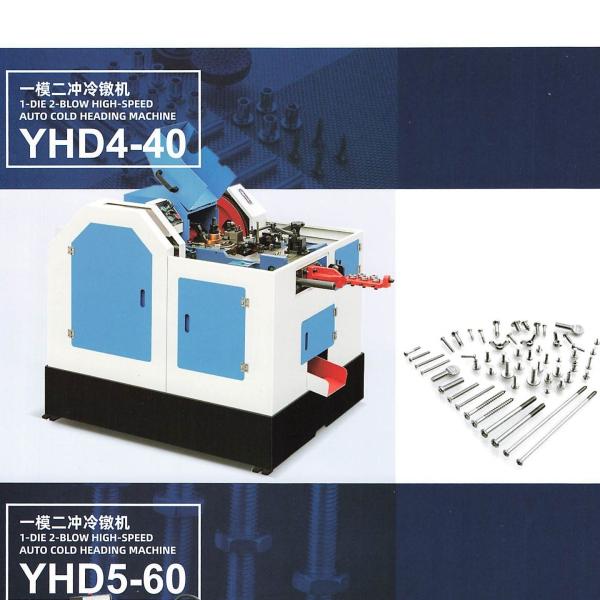

*The machine is one die two punch high speed cold heading machine specialized in producing all kinds of larger and longer screws.

Technical parameter of 1 Die 2 Blow Drywall Nail Making Machine Bolt Forging Machine Cold Heading Machine Screw Making Machine :

Model Max.Blank Diameter/mm Max.Blank Length/mm Max.Cut-off Length/mm Stroke/mm Capacity/ pcs/min Main Die Diameter/mm The Initial Punch Die Diameter/mm The Precise Punch Die Diameter/mm Cut-off Die Diameter/mm Cutter Size/mm Main Motor Power/kw Volume(L*W*H)/m Weight/kg
ST12-70 Ф7.0-15 70 90 120 60-70 Ф80×120 Ф55×120 Ф55×120 Ф35×45 16×50×125 20HP/15KW 4.50×2.00×1.32 8680
ST12-150 Ф7.0-15 150 170 190 40-50 Ф80×200 Ф60×180 Ф60×180 Ф45×60 18×60×125 25HP/18.5KW 5.20×1.90×1.80 14040
ST12-200 Ф7.0-15 200 220 250 30-40 Ф88×260 Ф60×180 Ф60×180 Ф45×60 18×60×125 25HP/18.5KW 5.20×1.90×1.80 14300
ST12-250 Ф7.0-15 250 270 300 30-40 Ф88×330 Ф60×180 Ф60×180 Ф45×60 18×60×125 25HP/18.5KW 　 　
ST12-300 Ф7.0-15 300 320 330 25-35 Ф88×360 Ф60×180 Ф60×180 Ф45×60 18×60×125 25HP/18.5KW 5.20×1.90×1.80 15860
ST12-450 Ф8.0-16 450 480 550 25-35 Ф90×540 Ф60×270 Ф60×270 Ф45×60 18×60×125 25HP/22KW 6.50×2.25×2.10 20800
ST16-180 Ф8.0-18 180 210 240 35-40 Ф98×220 Ф65×180 Ф65×180 Ф60×80 20×60×125 30KW-6极 4.40×2.10×1.95 　
ST16-450 Ф8.0-18 450 480 550 25-35 Ф98×540 Ф60×270 Ф60×270 Ф60×80 20×70×125 25HP/22KW 6.50×2.25×2.10 21000

* This type of machines are of such advantages as high speed, high precision, widespread application, low cost, high efficiency, etc.


Our Main Products:

*Multi-station bolt forging machine

*Nut forming machine

*Open/close mould cold heading machine

*High speed cold heading machine

*High speed threading machine

*Hexagon head trimming machine

*Semi-tubular rivets cold heading machine

*Full-tubular rivets cold heading machine

*Thread rolling machine

Company Profile

Our Customer

Exhibition

Our team

Certificate

Our Logistics

Why choose us

Sticking to the principle of quality for survival and reputatiton for development, our company continuously develops new products and improves their quality.

Hangzhou Suntech Machinery Co., LTD is sincere in cooperation with people from all walks of life to create jointly great success!
