12 Inch Roll Groover Machine For Fire Fighting Pipe Roll Grooving
12 Inch Roll Groover Machine For Fire Fighting Pipe Roll Grooving
12 Inch Roll Groover Machine For Fire Fighting Pipe Roll Grooving
12 Inch Roll Groover Machine For Fire Fighting Pipe Roll Grooving
12 Inch Roll Groover Machine For Fire Fighting Pipe Roll Grooving
12 Inch Roll Groover Machine For Fire Fighting Pipe Roll Grooving
Specifications
Brand Name :
Suntechmach
Model Number :
STG2A
Certification :
CE
Place of Origin :
China
MOQ :
Negotiate
Price :
USD1400-1450/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
30 working days
Packaging Details :
1set/Plywood case 78x70x92cm, 1*20' can load 44sets
Name :
Roll Grooving Machine
Capacity :
2"-12" (60-325mm) Sch40 Steel pipe, Sch10s Sch5s Sch10 Sch5 thin wall steel pipe
Pipe wall-thickness :
Max.10mm
Speed :
23rpm
G.W. :
158KGS
Color :
Red, Customizable
Function :
To make groove on end of pipe for coupling type pipe connecting
Voltage :
110v,220v,240v,380v
Accessories :
with free pipe jack and rollers
OEM :
ok
Description

Pipe grooving machine roll groover 12 inch for fire fighting pipe roll grooving

Pipe grooving machine Application

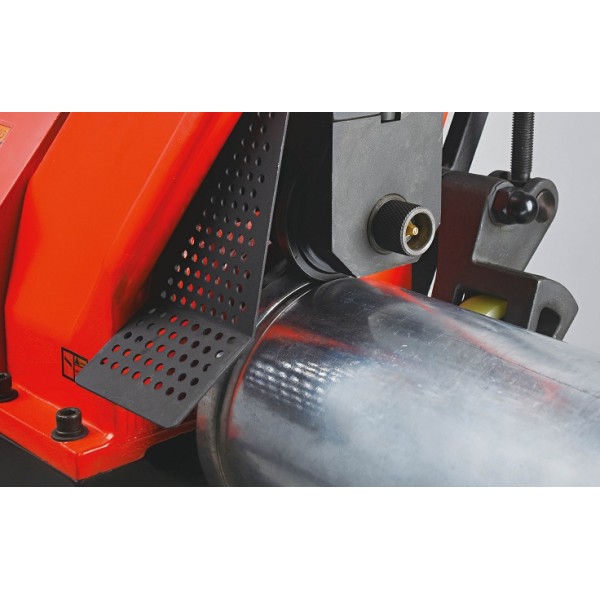

This is electric machine for rolling grooves on the end of steel pipes, so that the pipe can be joint together

by couplings. This is commonly used in construction project, especially for joining two fire fighting water

pipes together.

Pipe grooving machineTechnical Data

Product name Electric pipe grooving machine 2"-12"
Model number STG2A
Capacity 2"-12" (60-325mm) Sch40 Steel pipe,
Sch10s Sch5s Sch10 Sch5 thin wall steel pipe
Pipe wall-thickness Max.10mm
Speed 23rpm
G.W. 158KGS
Packing size Plywood case 78x70x92cm
Accessories Standard with 3pcs knurl wheel and 2pcs pinch roller and 1pc pipe rest

Pipe grooving machine Selling Features

1) This machine is designed for grooving 2"-12" steel pipe
2) Powered by high-performance gear reducing motor contributing to compact size and low noise
3) The unique integral hydraulic pump structure and groove depth limitation device ensure high quality

grooves and high working efficiency

4) This is heavy duty machine it can work for SCH40 pipes even when the pipe diameter are 12 inch.

Other model that are optional

1) We have both manual, electric and fully automatic roll groover.
2) Other popular size such as 1"-6", 1"-8", 1"-12", 8"-24" model is in option.

3) We also have pipe threading machine.
