Specifications
Brand Name :
Suntechmach
Model Number :
S2500-PVC
Certification :
ISO
Place of Origin :
Zhejiang , China
MOQ :
1set
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
5 Sets/Month
Delivery Time :
Est. 75days(To be negotiated)
Packaging Details :
We can pack it by pallet , or according to the customers' specific requirements
Name :
Welded Wire Mesh Natural Gas Heating PVC coating line
Wire diameter range :
Φ1.2-3.8mm
Speed of production :
10-20meter/min
Mesh hole size :
No limit
Diameter of the wire without coating :
For example Φ2.0mm
Diameter of already covered with PVC :
Will be around Φ3.0mm
Max. welding mesh width :
2.5meter
Consumption of PVC :
Wire mesh weight*20%
Required circulation water :
2.5～3m3/h
Max. take-up mesh size(L*W) :
30*2.5meter
Warranty :
1 Year
Description

Welded Wire Mesh Natural Gas Heating PVC Coating Line

Wire Diameter 1.2-3.8mm Welded Wire Mesh Natural Gas Heating PVC Coating Line

Product Description


1. Description of S2500-PVC Welded Wire Mesh Natural Gas Heating PVC Coating Line

This equipment is used for heating the welded wire mesh and PVC powder, produce PVC coating welded wire mesh. The final product's coating is beautiful and bright, improve the welded wire mesh's service life.

Characteristic of PVC coating welded wire mesh: acid and alkali resistant, aging resistant, fastness, surface smooth and bright, beautiful and strong.

2. Technical parameter

No. Name Data
1 Wire diameter range Φ1.2-3.8mm
2 Speed of production. 10-20meter/min
3 Mesh hole size No limit
4 Diameter of the wire without coating For example Φ2.0mm
5 Diameter of already covered with PVC Will be arond Φ3.0mm
6 Consumption of PVC Wire mesh weight*20%
7 Max. welding mesh width 2.5meter
8 Required electricity heating power of whole line About 70KW/h
9 Chief heating way Liaro combustion engine with natural gas
10 Required circulation water 2.5～3m3/h
11 Max. take-up mesh size(L*W) 30*2.5meter
12 Workshop area requirement(L*W*H) Around 48m*10m*4m
13 All rotate area have protection cover in yellow color.
Notes: One time only can run one welding mesh can't run two meshes

3.Composition of equipment

No.

Name

Quantity
1

Welded mesh pay-off device

 1Set
2

Mesh pressing device

 1Set
3

Mesh tension and feeding device

 1Set
4

High temperature natural gas pre-heating furnace

 1Set
5

PVC Powder impregnation device with isolation room

 1Set
6

Centering device

 1Set
7

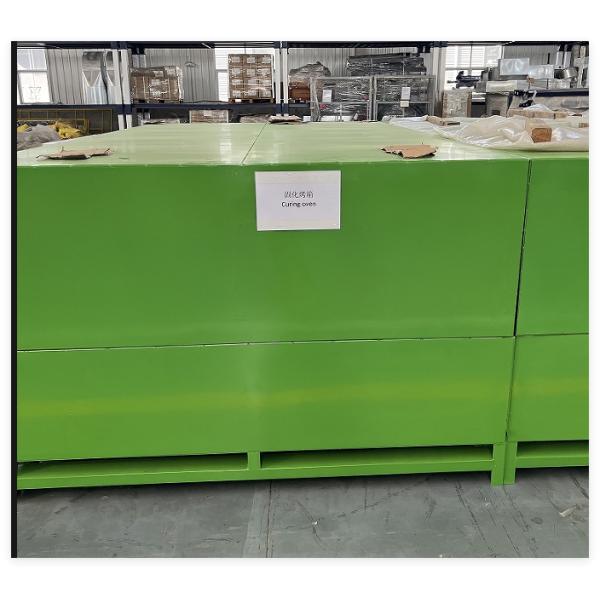

Natural gas heating type consolidation device

 1Set
8

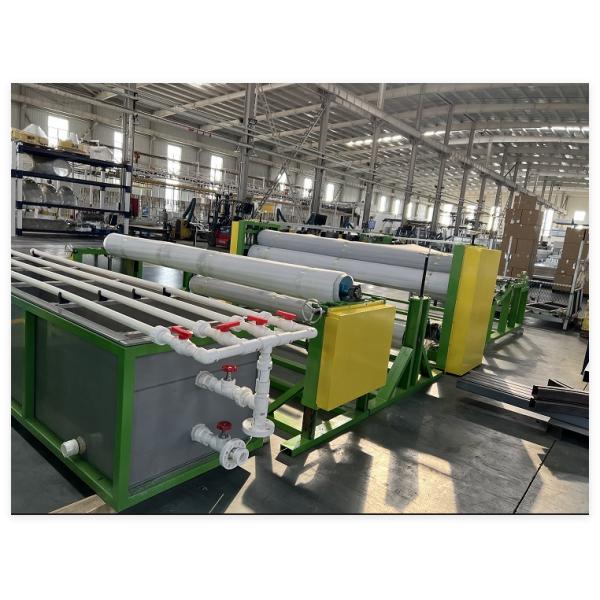

Water cooling device

 1Set
9

Centering, lifting and mesh transmission device

 1Set
10

Finished Welded mesh take-up machine

 1Set
11

Electrical control cabinet

 1Set
12

Electric driven manual cutter

 1Set

3. Photos

Φ1.2-3.8mm Welded Wire Mesh Natural Gas Heating PVC Coating Line

Φ1.2-3.8mm Welded Wire Mesh Natural Gas Heating PVC Coating Line

Φ1.2-3.8mm Welded Wire Mesh Natural Gas Heating PVC Coating Line

According to the needs of users, we can provide solutions for the whole production line. Details please see the contact us.following.

4. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

5. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in metal products area.

Any doubt Please contact us.
